型番： メーカー：Intense Photonics 商品コード：L000534
635nm Laser Diode, 3W
波長: 635nm-635nm
出力: 3000mW-3000mW
パッケージ: HHL
テクノロジー: high powered laser array

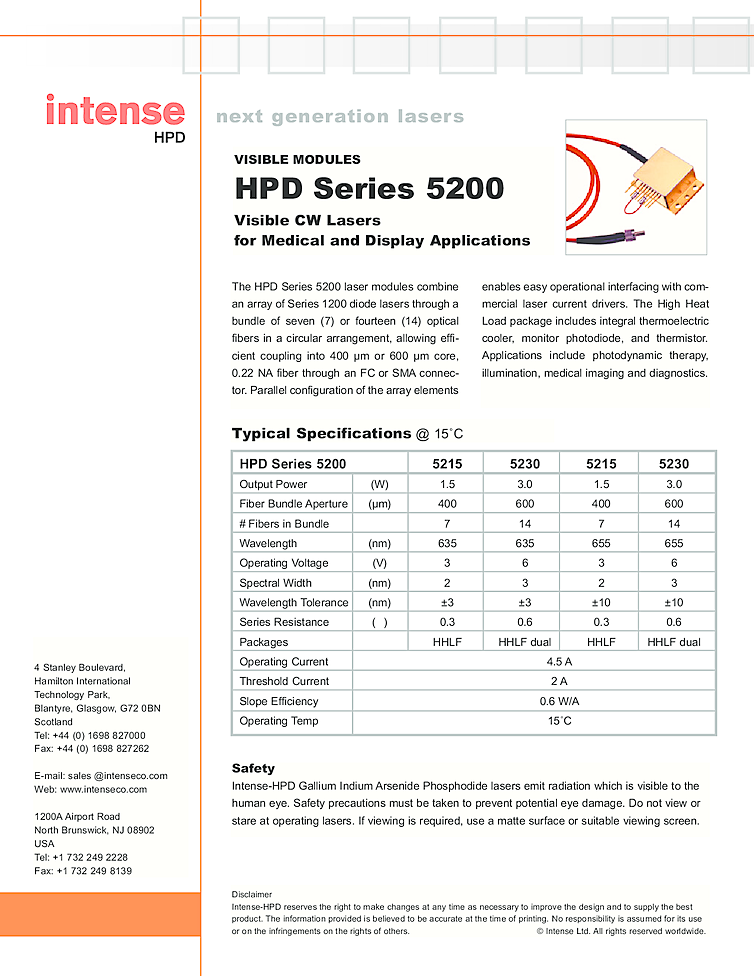

635nm laser diode is an array of Series 1200 diode lasers through a bundle of seven (7) or fourteen (14) optical fibers in a circular arrangement, allowing effi- cient coupling into 400 μm or 600 μm core, 0.22 NA fiber through an FC or SMA connec- tor. Parallel configuration of the array elements enables easy operational interfacing with com- mercial laser current drivers. The High Heat Load package includes integral thermoelectric cooler, monitor photodiode, and thermistor. Applications include photodynamic therapy, illumination, medical imaging and diagnostics.
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
|
代理店が登録されていません |
|||
