型番: メーカー:VESCENT PHOTONICS, LLC 商品コード:L000490

770nm Laser Diode, Narrow Linewidth

波長: 770nm-770nm
出力: 25mW-25mW
スペクトル幅: 500kHz - 2MHz
パッケージ: SELF CONTAINED MODULE
テクノロジー: DBR, Narrow Linewidth

770nm from VESCENT PHOTONICS:

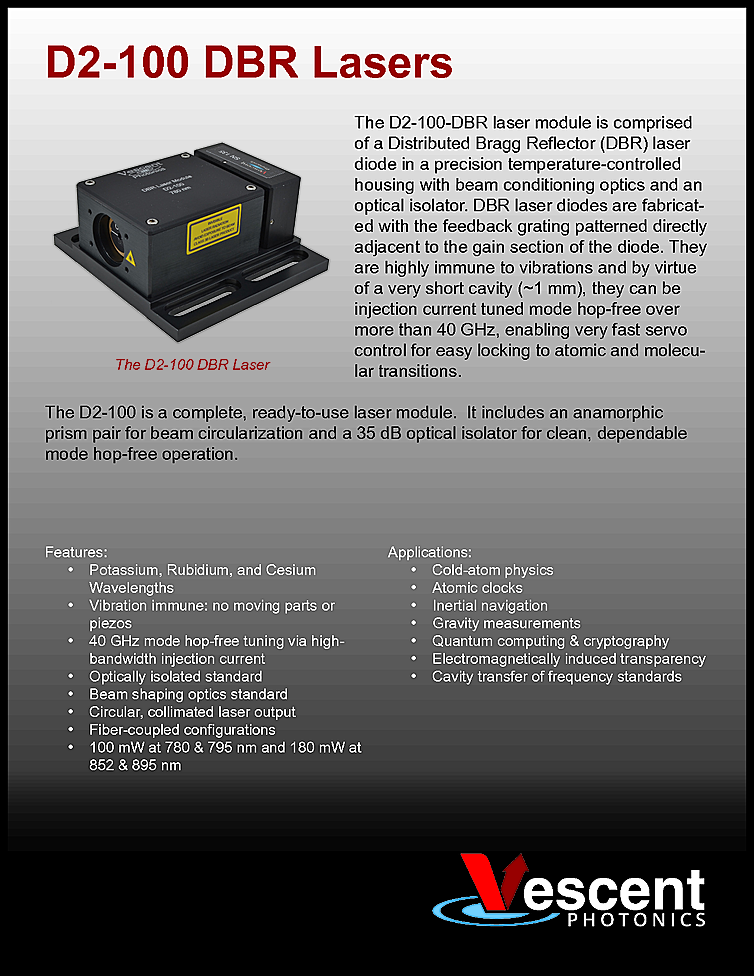

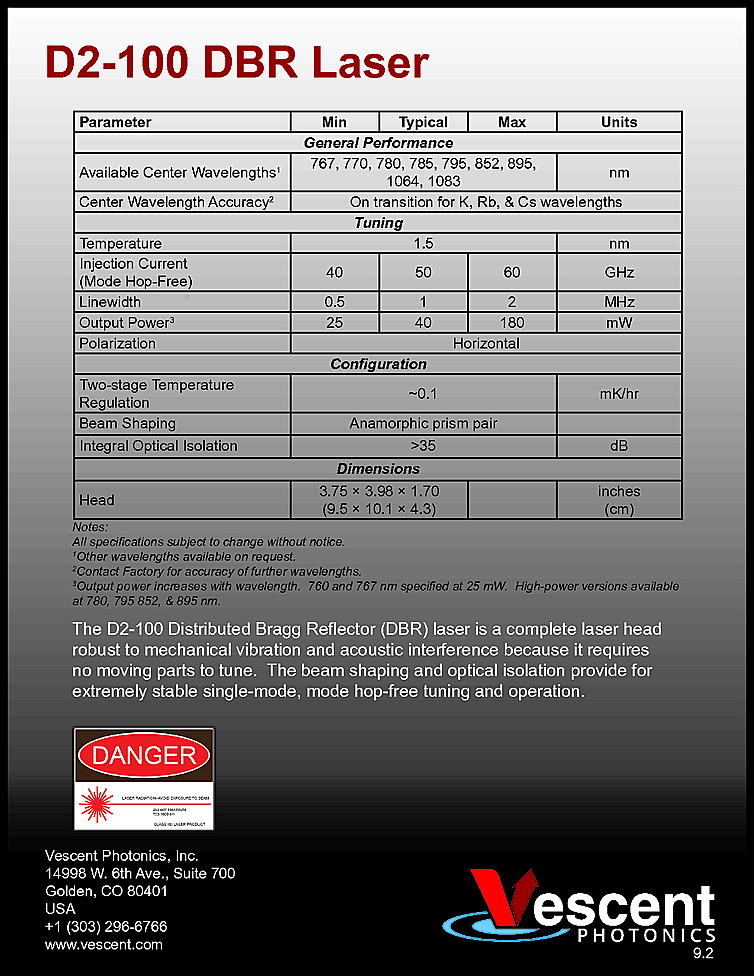

The D2-100-DBR laser module is comprised of a Distributed Bragg Reflector (DBR) laser diode in a precision temperature-controlled housing with beam conditioning optics and an optical isolator. DBR laser diodes are fabricated with the feedback grating patterned directly adjacent to the gain section of the diode. They are highly immune to vibrations and by virtue of a very short cavity (~1 mm), they can be injection current tuned mode hop-free over more than 40 GHz, enabling very fast servo control for easy locking to atomic and molecular transitions. The D2-100 is a complete, ready-to-use laser module. It includes an anamorphic prism pair for beam Circularization and a 35dB optical isolator for clean, dependable mode hop-free operation.

APPLICATIONS:
- Cold-atom physics
- Atomic clocks
- Inertial navigation
- Gravity measurements
- Quantum computing & cryptography
- Electromagnetically induced transparency
- Cavity transfer of frequency standards

FEATURES:
- Potassium, Rubidium, and Cesium Wavelengths
- Vibration immune: no moving parts or piezos
- 40 GHz mode hop-free tuning
- Optically isolated
- Beam shaping optics
- Circular, collimated laser output
- Fiber-coupled configurations
