型番：　メーカー：Ondax, Inc.　商品コード：L000457

685nm Diode Laser, 45mW

685nm Diode Laser, 45mW
685nm Diode Laser, 45mW
685nm Diode Laser, 45mW
685nm Diode Laser, 45mW

波長: 685nm-685nm
出力: 45mW-45mW
スペクトル幅: < 500kHz
パッケージ: TO-can
テクノロジー: narrow linewidth laser

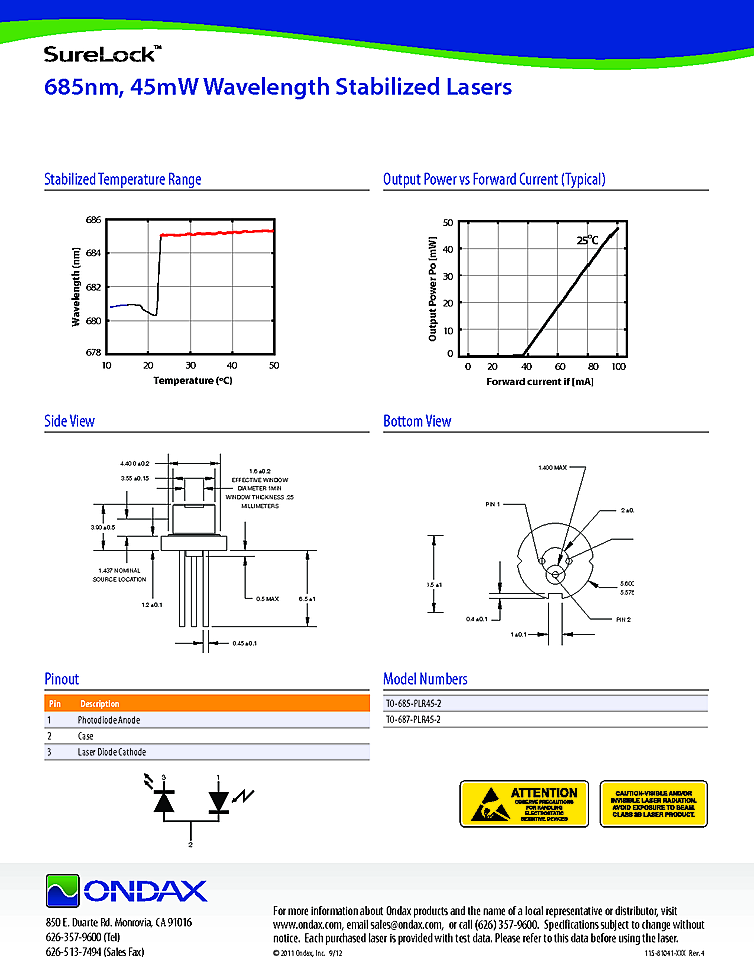

685nm : Ondax’s 685nm Wavelength Stabilized Laser Diode is a single mode, single frequency laser packaged in an ultra-compact, TO-can footprint. The extremely narrow linewidth, broad temperature operating characteristics, and low power consumption deliver affordable, portable instrument-quality performance for a broad range of instrumentation applications. All SureLock™ Series laser diodes are stabilized using the Ondax PowerLocker® Volume Holographic Grating (VHG), ensuring precise,ultra-stable center wavelengths, low temperature dependence, and consistent optical performance over the locked region.

Key Features:
• Single frequency performance at 685nm
• Narrow linewidth
• Compact, hermetically sealed TO footprint

Key Applications:
• Raman Spectroscopy
• Metrology
• Bio-instrumentation
• Graphic Arts
• Sensing
• Analytical Instrumentation

For more information about Ondax products and the name of a local representative or distributor, visit www.ondax.com, email sales@ondax.com, or call (626) 357-9600.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 東京都 株式会社ティー・イー・エム
