型番：LD-TEC4500　メーカー：　商品コード：L002943

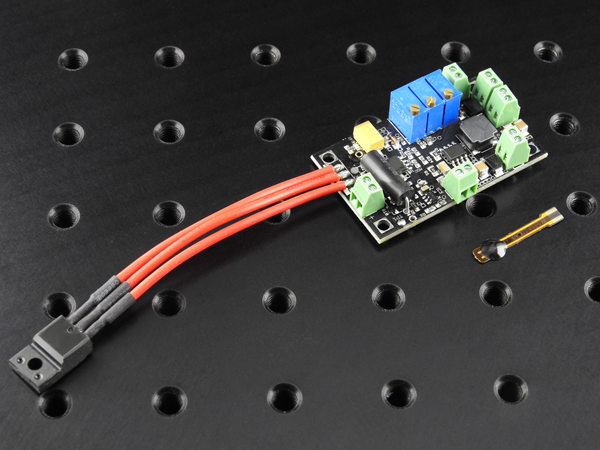

Laser Diode Controller: 2.5 Amp Current Source with 24 Watt TEC Controller, Small Package Circuit

Laser Diode Controller: 2.5 Amp Current Source with 24 Watt TEC Controller, Small Package Circuit
Laser Diode Controller: 2.5 Amp Current Source with 24 Watt TEC Controller, Small Package Circuit

メーカー希望小売価格: $85.00 電流: 2.5A-2.5A

Product Overview:
These affordable miniature laser diode controller circuits are manufactured by Lasertack, GmbH, and offer a precision current source up to 2500mA, and up to 2 Amps of power to the TEC cooler. They are supplied by a voltage 5 to 12 VDC power supply input and offer the user a wide modulation bandwidth of
500 kHz Analog from a voltage source of DC to 5V. They offer a fast rise and fall time specification, and a low noise specification of <1.6 millivolts. The TEC controller loop is unidirectional (cool only). and they offer a very high temperature control accuracy of 0.1°C. These controller modules were designed for high power laser diodes. They are offered Worldwide by Laser Lab Source.
