型番：　メーカー：Intense Photonics　商品コード：L000448

670nm High Power Laser Array

670nm High Power Laser Array
670nm High Power Laser Array

波長: 670nm-670nm
出力: 5000mW-5000mW
パッケージ: High Heat Load HHL
テクノロジー: high powered laser array

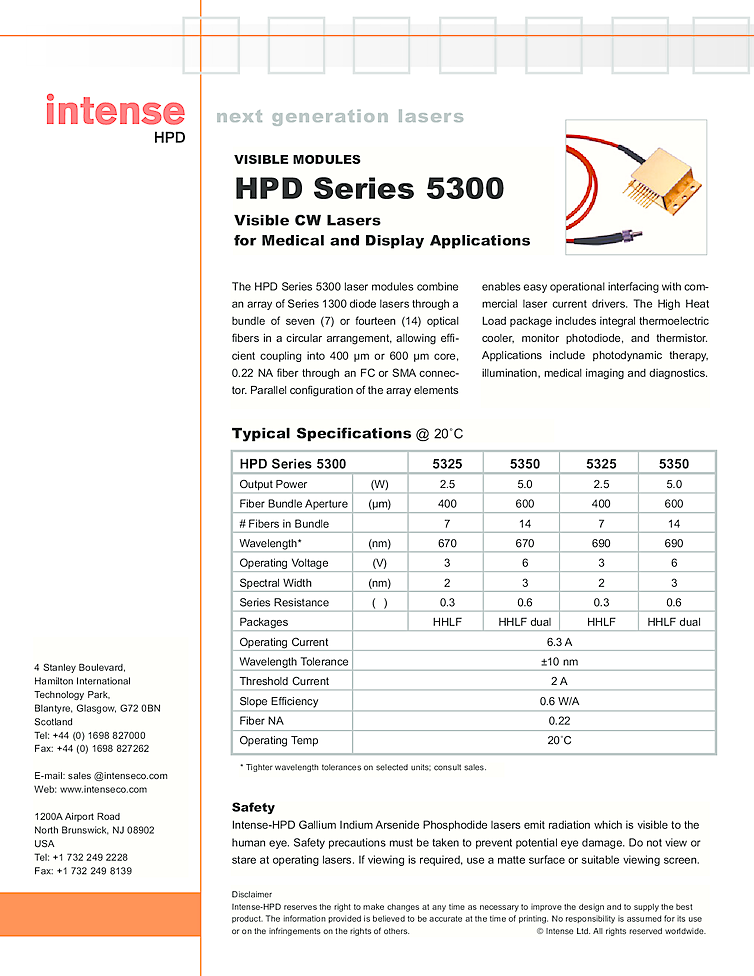

670nm VISIBLE MODULES
HPD Series 5300
Visible CW Lasers for Medical and Display Applications.

The HPD Series 5300 laser modules combine an array of Series 1300 diode lasers through abundle of seven (7) or fourteen (14) optical fibers in a circular arrangement, allowing efficient coupling into 400 μm or 600 μm core, 0.22 NA fiber through an FC or SMA connector. Parallel configuration of the array elements enables easy operational interfacing with commercial laser current drivers. The High Heat Load package includes integral thermoelectric
cooler, monitor photodiode, and thermistor.

Applications include photodynamic therapy, illumination, medical imaging and diagnostics.
