型番： メーカー：Denselight 商品コード：L001724
1260nm narrow linewidth diode laser
波長: 1260nm-1260nm
出力: 5mW-5mW
スペクトル幅: < 500kHz
パッケージ: butterfly
テクノロジー: Narrow Linewidth

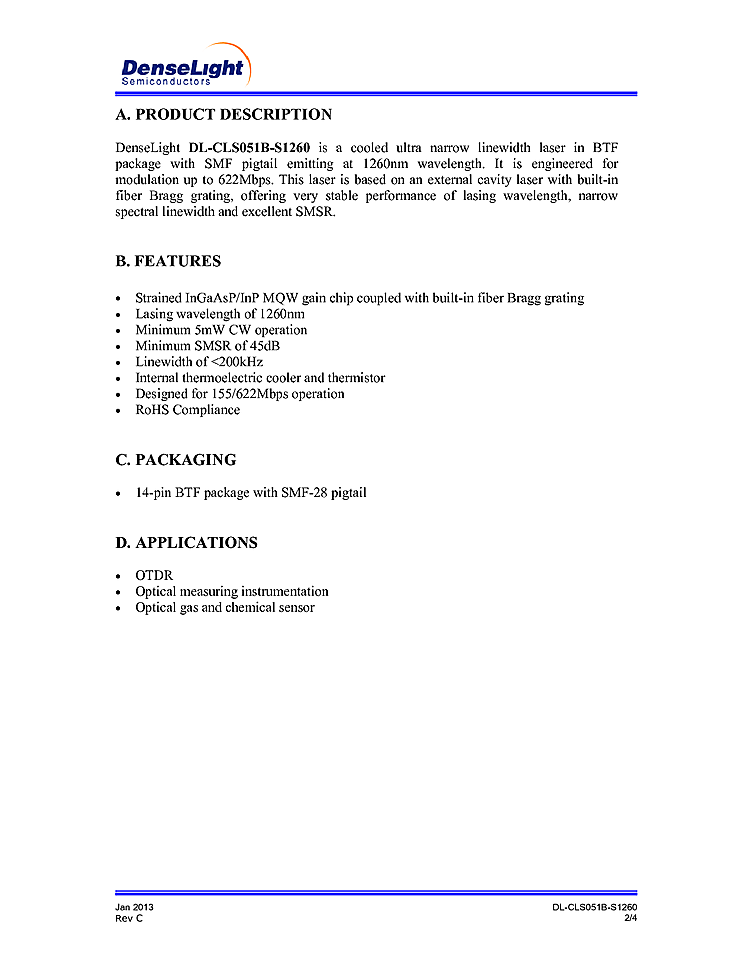

1260nm 1260nm FEATURES of this Denselight device include a gain chip which is coupled with built-in fiber Bragg grating, lasing wavelength of 1260 nm and a minimum of 5mW CW operation. Minimum SMSR is 45dB and this single mode laser is based on an external cavity laser with built-in fiber FBG, offering very stable performance of lasing wavelength, narrow linewidth and excellent SMSR.
FEATURES:
• Strained InGaAsP/InP MQW gain chip coupled with built-in fiber Bragg grating
• Lasing wavelength of 1260nm
• Minimum 5mW CW operation
• Minimum SMSR of 45dB
