型番：DL-1-50　メーカー：Elforlight Ltd.　商品コード：L003209

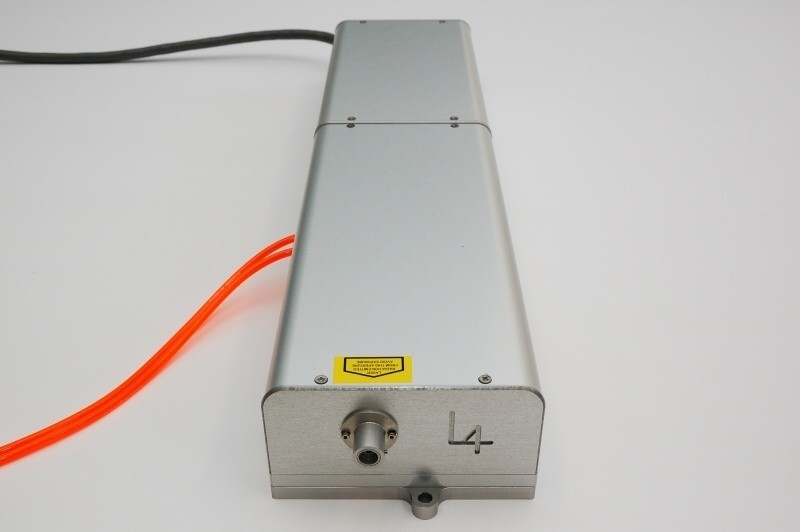

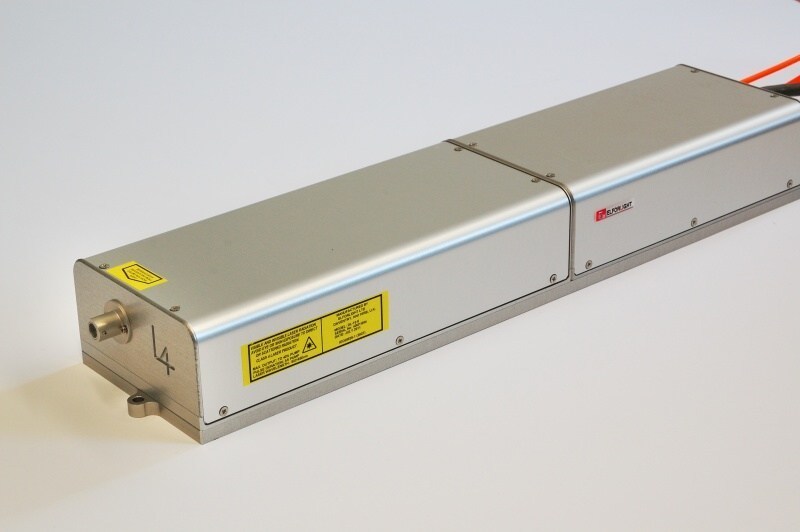

560-610nm / 50µJ　DL dye laser (Elforlight)

560-610nm / 50µJ　DL dye laser (Elforlight)
560-610nm / 50µJ　DL dye laser (Elforlight)
560-610nm / 50µJ　DL dye laser (Elforlight)
560-610nm / 50µJ　DL dye laser (Elforlight)
560-610nm / 50µJ　DL dye laser (Elforlight)
560-610nm / 50µJ　DL dye laser (Elforlight)
560-610nm / 50µJ　DL dye laser (Elforlight)
560-610nm / 50µJ　DL dye laser (Elforlight)

Dye　データシート.pdf

波長: 560nm-610nm
パルス幅: <5ns
ビーム径: ~1mm

[Specification]
Maximum Pulse Energy： > 50µJ
Minimum Pulse Width：< 5ns
Repetition Rate：Single shot to > 1kHz
Jitter：< +/- 1ns from external trigger input (typ.0.5ns)
Wavelength：In range 560 – 610nm (Other dyes/wavelengths available)
Line Width：~4nm

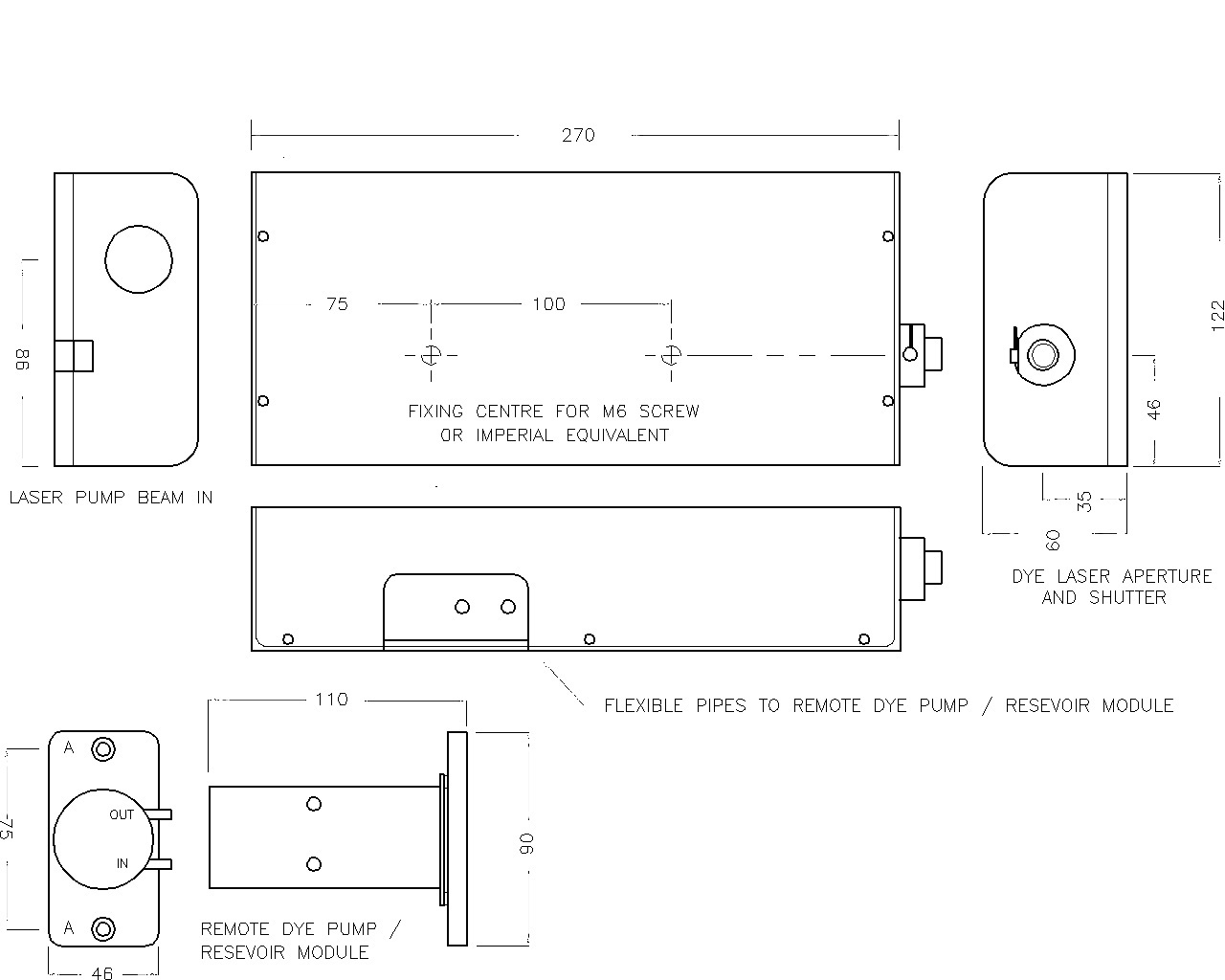

Dye Head Size：270mm long x 122mm x 60mm
Dye Used：Pyrromethene 597

[Overview]
The Elforlight DL dye laser is a compact, easy to install complement to Elforlight pulsed products. Designed primarily to operate with the SPOT laser for short pulses, the dye laser can also be combined with the FQS laser to produce higher energies.

[Features]
Compact
Easy to install

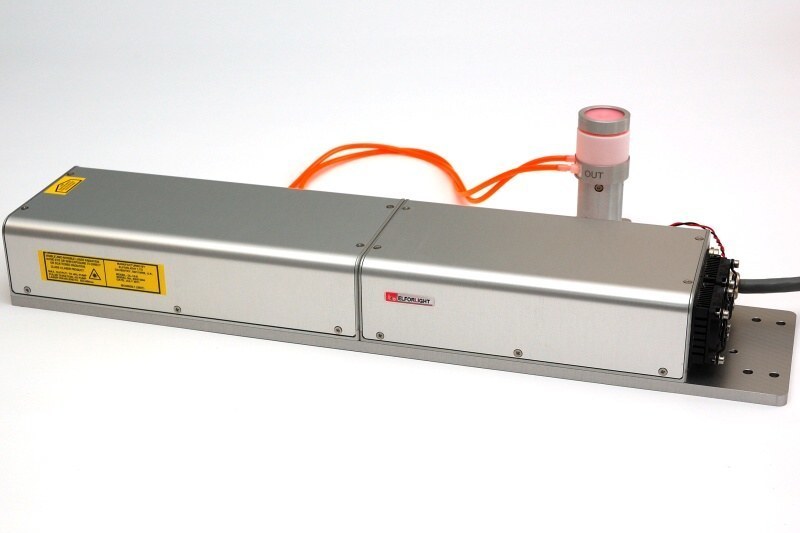

Common base plate available for dye/pump system
Self contained dye pump
Tuning option

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 株式会社東京インスツルメンツ
