型番：ATLEX-500-FBG　メーカー：ATL Lasertechnik GmbH　商品コード：L003810

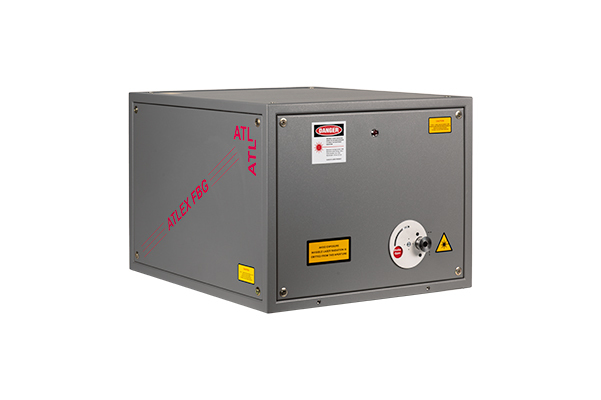

High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG

High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG
High Efficient Excimer Laser for Fiber Bragg Grating: ATLEX-500-FBG

波長: 193nm-248nm
出力: 4.0W-6.5W
パルスの最大繰返し: < 100Hz - 1000Hz
エネルギー: 10mJ-15mJ
パルス幅: 5 – 8 ns

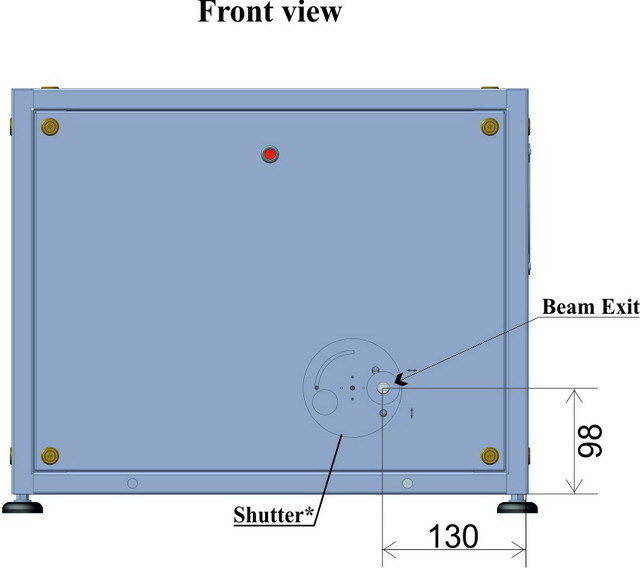

ビーム径: (V x H) 4 x 6 mm
拡がり角: (V x H) 1 x 2 mrad
エネルギー安定性: < 3 %
重さ: 60 kg
冷却方法: Cooling Air / Optional Liquid

Ultra-compact, high efficient excimer laser for Fiber Bragg Grating (FBG) writing


【Main features】

Soft corona preionization
HV-solid state pulser
Laser head volume < 3l
TMC (Total-Metal-Ceramic) Vessel
Integrated vacuum pump & halogen filter
Air Cooled / Optional Liquid Cooled, active thermal management

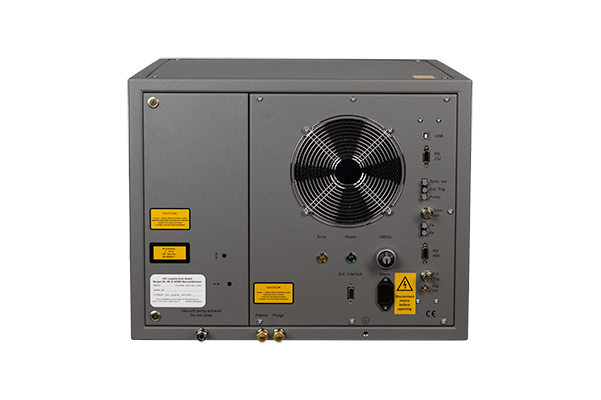

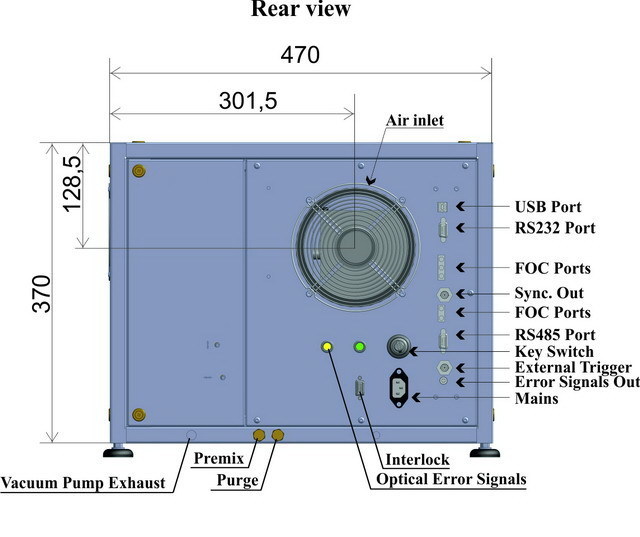

RS-485, RS232, USB and fiber optic Interface for system integration
Flushable optics holder
Energy stabilization mode
Dynamic fan speed controls
Meets European CE-standard
RoHS compliance

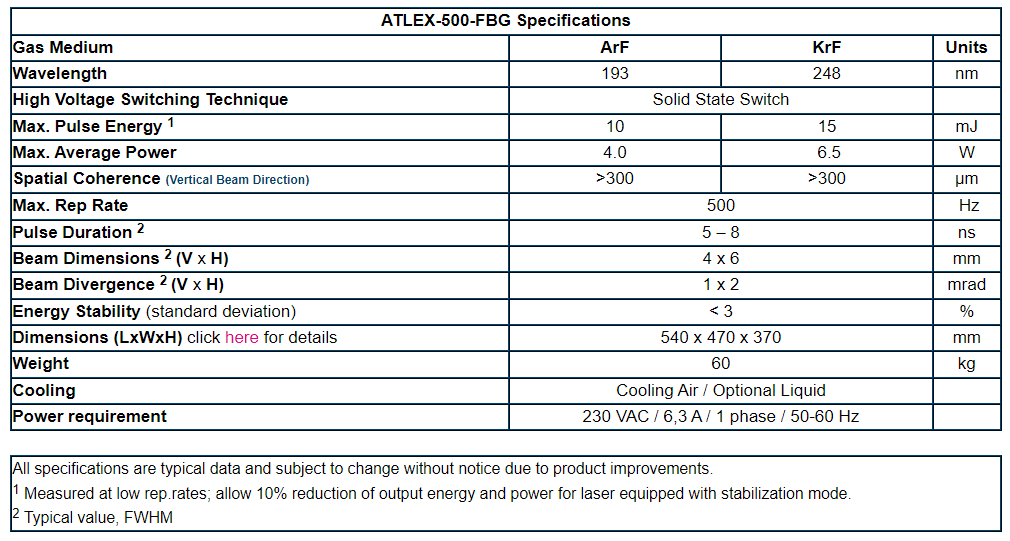

【Specifications】

Gas Medium: ArF, KrF
High Voltage Switching Technique: Solid State Switch
Spatial Coherence (Vertical Beam Direction): >300µm
Max. Rep Rate: 500 Hz
Power requirement: 230 VAC / 6,3 A / 1 phase / 50-60 Hz


【Applications】

Fibre Bragg grating writing
