型番：20.220.00017、20.220.00058、20.220.00064　メーカー：Artifex Engineering　商品コード：L003800

SP100UVS/SP100VIGA Detector for OPM150

波長: 250nm-1600nm
出力: 40μW-20W

< Description >

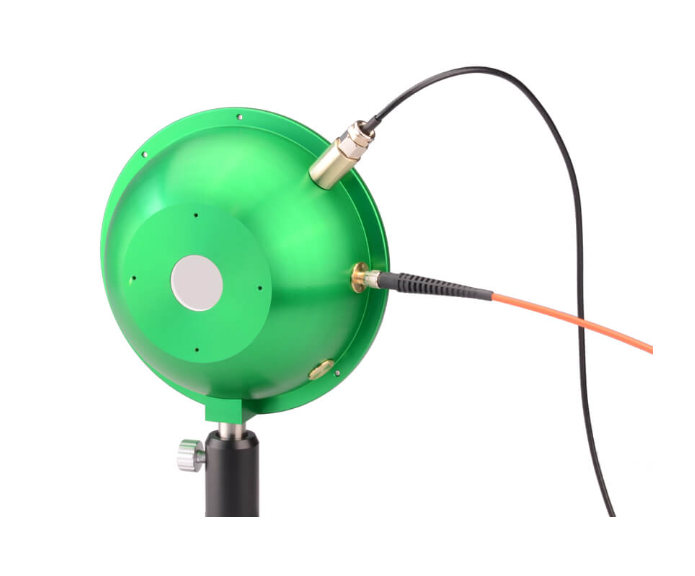

These detectors consist of a 100mm integrating sphere and a photodiode detector port. It is compatible with our OPM150 series of optical power meters. As the sphere is equipped with three output ports, two additional ports should be selected during configuration (fiber, photodiode or blind plug). When connected to the OPM150 base unit, each head is automatically recognized and its individual calibration data are uploaded to the system. The head mechanics are designed to be compatible with various common optomechanics systems to allow simple integration. Various adapters for tube systems, camera objectives and optical fibres are available to further enhance the ease of integration.

・SP100UVS Detector for OPM150 (20.220.00017/20.220.00064)
　A 100mm inner diameter integrating sphere encorporating an M12 UVS photodiode detector port.

< Specifications >
Reflective material: ultra white polymer
Internal diameter: 100mm
Cooling: convection
Wavelength range: 250-1100nm
Input aperture: ø25mm
Minimum measureable power: 150µW (at 600nm)
Maximum measureable power: 20W (at 600nm)
Maximum outer dimensions: ø142.2mm x 115.2mm

・SP100VIGA Detector for OPM150 (20.220.00017/20.220.00058)
　A 100mm inner diameter integrating sphere encorporating an M12 VIGA photodiode detector port.

< Specifications >
Reflective material: ultra white polymer
Internal diameter: 100mm
Cooling: convection
Wavelength range: 400-1600nm
Input aperture: ø25mm
Minimum measureable power: 40µW (at 1550nm)
Maximum measureable power: 10W (at 1550nm)
Maximum outer dimensions: ø142.2mm x 115.2mm

【Accessories】
Adapters for tube systems
Adapters for fibre inputs: FC, SMA

【Options】
Output ports:
SMA fibre
FC fibre
Photodiode
Blind plug
