型番：20.220.00051、20.220.00052、20.220.00073　メーカー：Artifex Engineering　商品コード：L003795

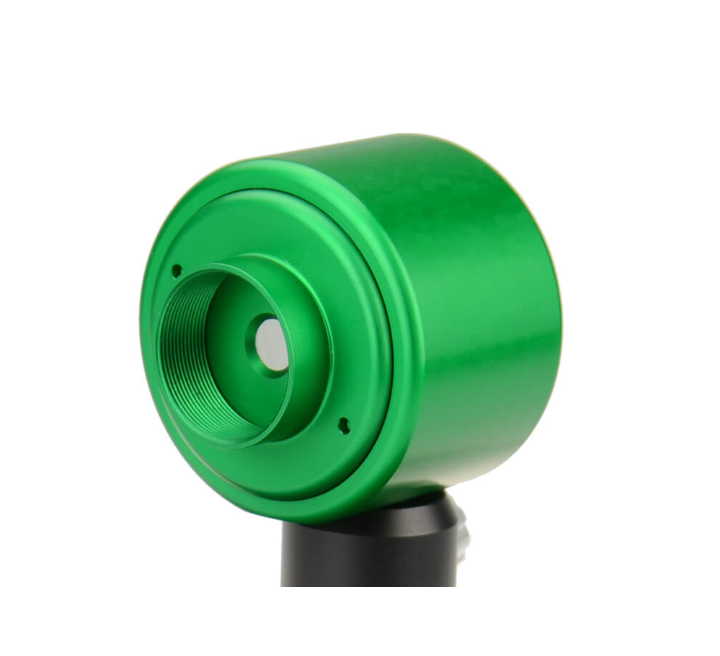

OPM150P 20x2.0/2.2/2.5/ IGA-Detector

波長: 800nm-2500nm
出力: 2μW-1W

< Description >
A 20mm inner diameter integrating sphere encorporating an IR enhanced InGaAs photodiode. This detector is compatible with the OPM150 series of optical power meter. The head mechanics are designed to be compatible with various common optomechanics systems to allow simple integration. Various adapters for tube systems, camera objectives and optical fibres are available to further enhance the ease of integration. When connected to the OPM150 base unit, each head is automatically recognized and its individual calibration data are uploaded to the system. In addition, the user may load up to 5 separate filter curves. Thus the dynamic range and functionality of the unit can be expanded while ensuring proper calibration.

・OPM150P20x2.0IGA-Detector (20.220.00051)

< Specifications >
Internal diameter: 20mm
Wavelength range: 800-2000nm
Input aperture: ø7mm
Minimum measureable power: 2µW (at 1550nm)
Maximum measureable power: 1W (at 1550nm)
Maximum outer dimensions: ø50mm x 30mm

・OPM150P20x2.2IGA-Detector (20.220.00052)

< Specifications >
Internal diameter: 20mm
Wavelength range: 1000-2200nm
Input aperture: ø7mm
Minimum measureable power: 2µW (at 1550nm)
Maximum measureable power: 300mW (at 1550nm)
Maximum outer dimensions: ø50mm x 30mm

・OPM150P20x2.5IGA-Detector (20.220.00073)

< Specifications >
Internal diameter: 20mm
Wavelength range: 1300-2500nm
Input aperture: ø7mm
Minimum measureable power: 2µW (at 1550nm)
Maximum measureable power: 300mW (at 1550nm)
Maximum outer dimensions: ø50mm x 30mm

【Accessories】
Adapters for tube systems
Adapters for fibre inputs: FC, SMA, LC, ø1.25 ferrule
