型番：30.070.00006　メーカー：Artifex Engineering　商品コード：L003786

OPM150 VIGA-Detector

波長: 400nm-1600nm
出力: 1nW-8mW

< Description >

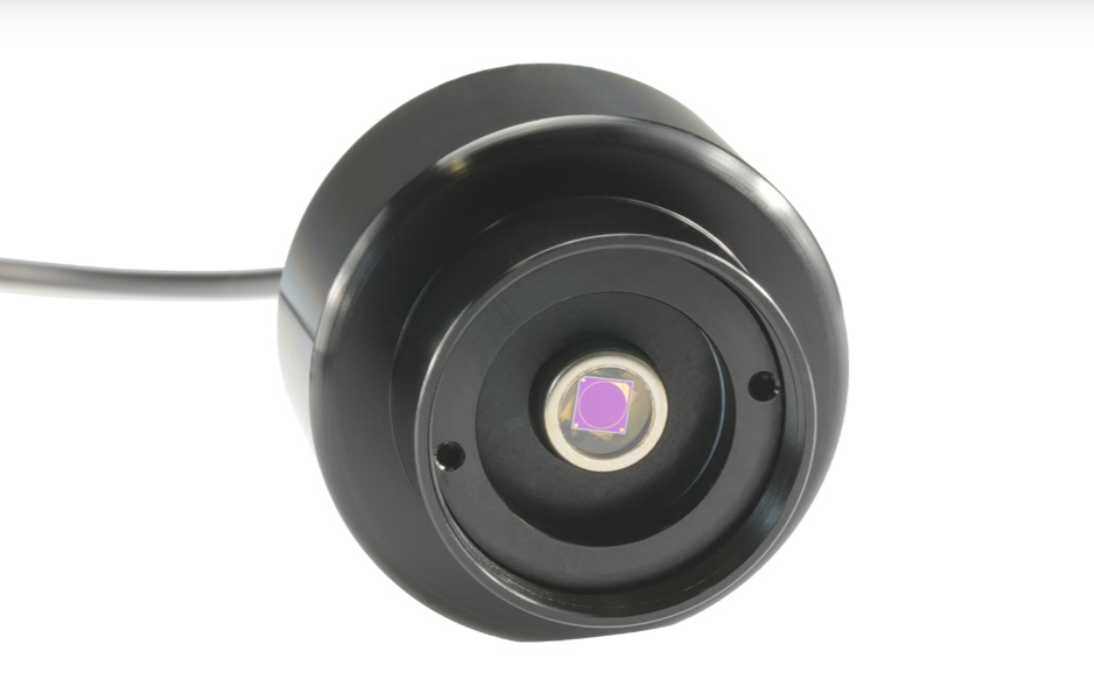

A small area InGaAs photodiode detector head, compatible with the OPM150 series of optical power meter. The special design of the material gives high sensitivity down to 400nm. This gives an exceptionally wide range of wavelengths covering the most common types in a single head. The head mechanics are designed to be compatible with various common optomechanics systems to allow simple integration. Various adapters for tube systems, camera objectives and optical fibres are available to further enhance the ease of integration. When connected to the OPM150 base unit, each head is automatically recognized and its individual calibration data are uploaded to the system. In addition, the user may load up to 5 separate filter curves. Thus the dynamic range and functionality of the unit can be expanded while ensuring proper calibration.

< Specifications >
Wavelength range: 400-1600nm
Sensitive area: ø 3mm
Minimum measureable power: 1nW (at 1550nm)
Maximum measureable power: 8mW (at 1550nm) with Base Module 30.070.00002, 4mW (at 1550nm) with Base Module 30.070.00058
Maximum outer dimensions: ø30mm x 30mm

< Accessories >
Calibrated diffuse reflecting attenuators: OD1, OD2
Adapters for tube systems
Adapters for fibre inputs: FC, SMA, LC, ø 1.25 ferrule

見積りBOXへ入れる欲しい物リストに登録

メーカーWebサイトへ

価格	地域	代理店
要問い合わせ	京都府	株式会社光響

OPM150 VIGA-Detector
