型番：30.070.00053、30.070.00051　メーカー：Artifex Engineering　商品コード：L003783

OPM 150UVS FC/SMA-Detector

OPM 150UVS FC/SMA-Detector
OPM 150UVS FC/SMA-Detector
OPM 150UVS FC/SMA-Detector
OPM 150UVS FC/SMA-Detector
OPM 150UVS FC/SMA-Detector
OPM 150UVS FC/SMA-Detector
OPM 150UVS FC/SMA-Detector
OPM 150UVS FC/SMA-Detector

波長: 250nm-1100nm
出力: 30nW-20mW

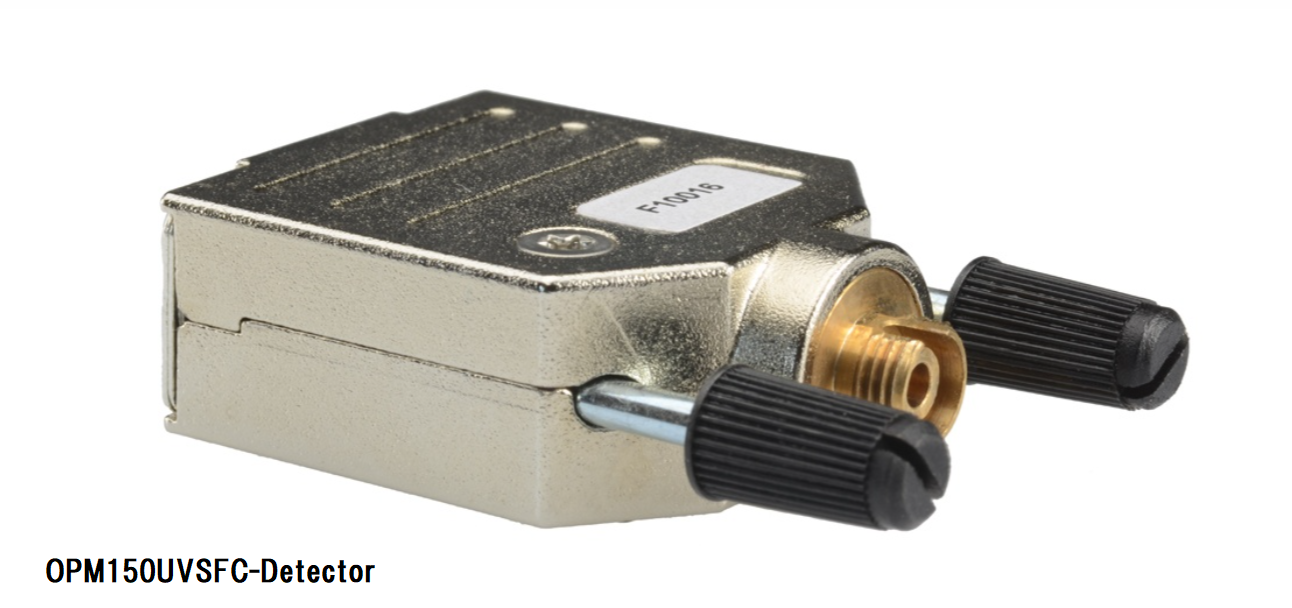

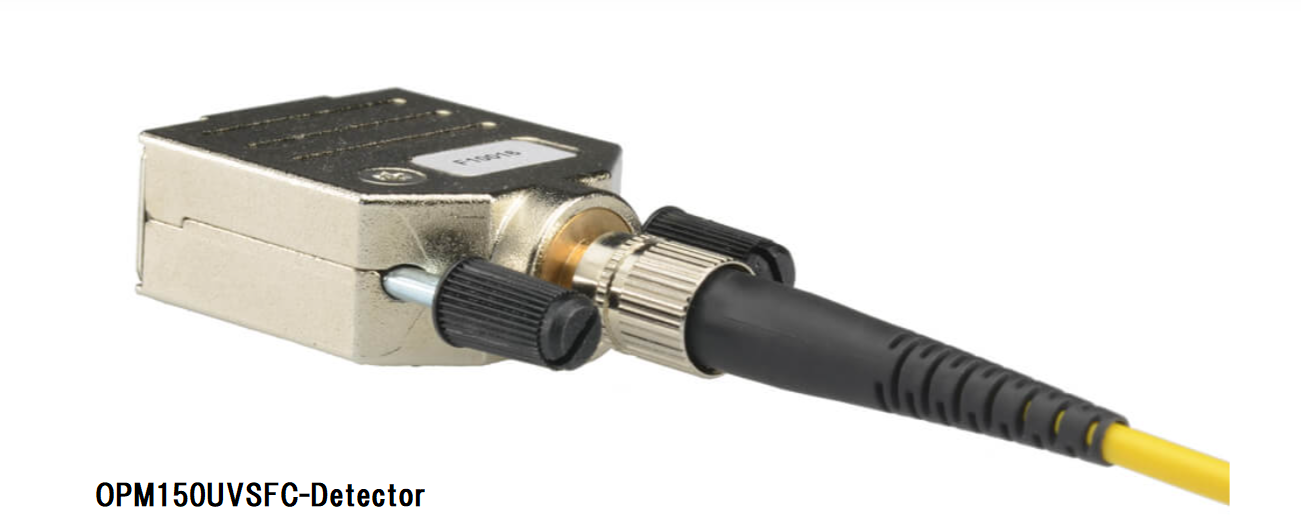

・OPM150UVSFC-Detector (30.070.00053): FC fibre connectorb
　This compact unit is designed specifically for measurement of power out of FC-connectorized fibres only.

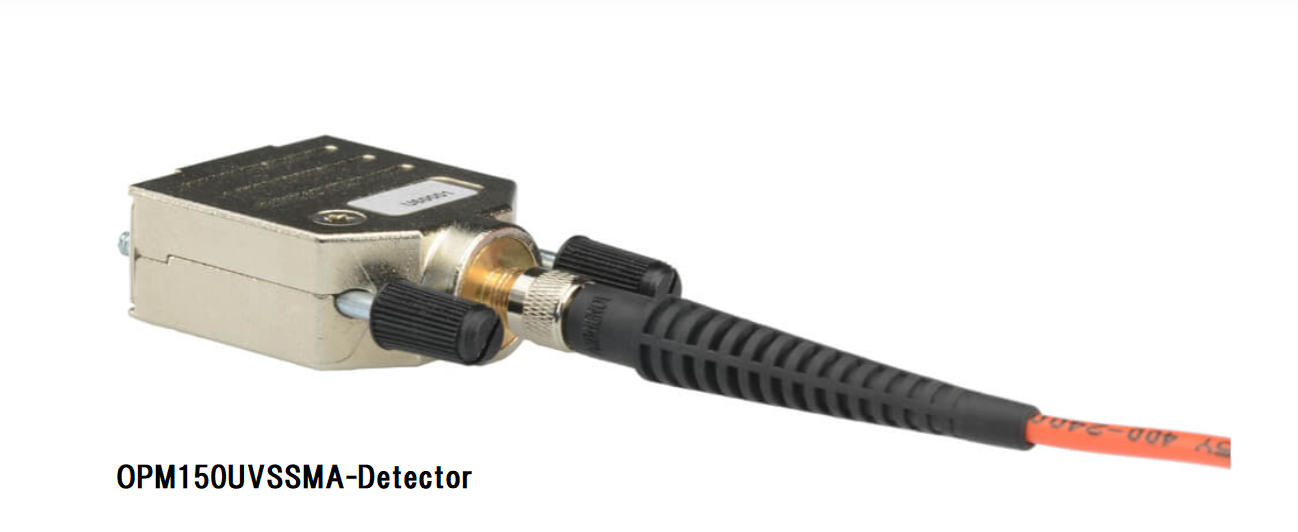

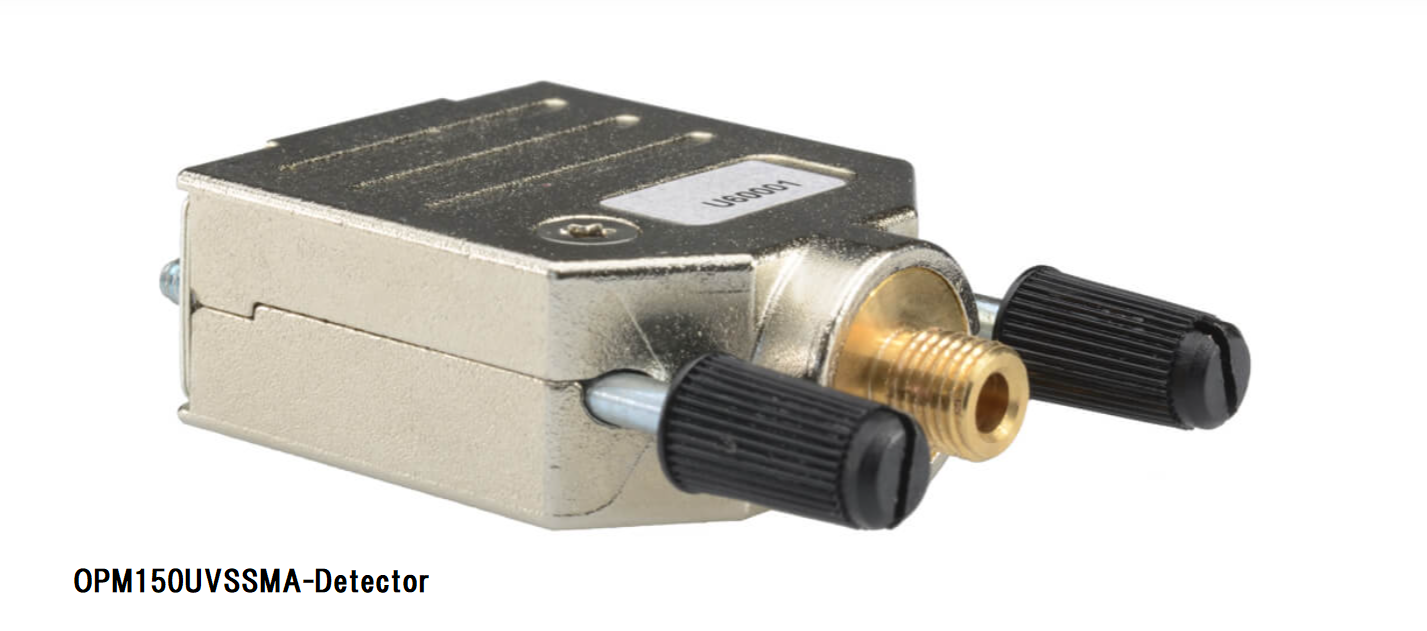

・OPM150UVSSMA-Detector (30.070.00051): SMA fibre connector
　This compact unit is designed specifically for measurement of power out of SMA-connectorized fibres only.


< Description >
The fibre receptacle, photodetector and calibration memory chip are all contained in the connector body. A UV-enhanced silicon (Si) photodiode detector head, compatible with the OPM150 series of optical power meter. When connected to the OPM150 base unit, each head is automatically recognized and its individual calibration data are uploaded to the system.


< Specifications >
Wavelength range: 250-1100nm
Maximum fibre core: ø 1500µm at NA 0,39; ø 2000µm at NA 0,22
Minimum measureable power: 30nW (at 600nm)
Maximum measureable power: 20mW (at 600nm) with Base Module 30.070.00002, 10mW (at 600nm) with Base Module 30.070.00058
Maximum outer dimensions: 47.5 x 31.3 x 14.8mm

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 京都府 株式会社光響
