型番：　メーカー：Focuslight Technologies Inc.　商品コード：L003776

Micro Prisms

材質: Optical glass, silicon, FS
コーティング: あり
種類: AR,HR, beam splitting etc.

< Micro Prisms >
・Micro prisms processed by wafer-level simultaneous structuring technology.
・Precise deviation: The faces and angles of a prism are carefully engineered to meet the requirement of precise deviation of light.
・High reflectivity: The surfaces of micro prisms are processed with high reflectivity, which helps minimize signal loss.
・Small size: Micro prisms have small dimensions which makes it possible to direct light with high accuracy while maintaining a relatively compact device size.

< Key Specifications >
Prism Type：Micro Dove / Triple prism
Material：Optical glass, silicon, FS
Dimension (H)：0.2mm ~2mm
Angle accuracy (a)：Up to ±10’
Angular value (a)： Customized <60°
Optical Surface (CA)：Up to 90%
Volume production capability：>20M / year
Coating： AR,HR, beam splitting etc.

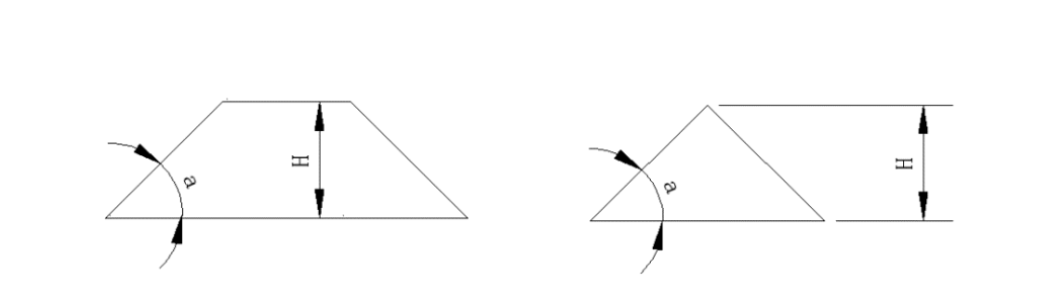

※(H)、(a)は図2の内容

見積りBOXへ入れる欲しい物リストに登録

メーカーWebサイトへ

価格	地域	代理店
要問い合わせ		株式会社ハナムラオプティクス
要問い合わせ	京都府	株式会社光響
