型番:FL-GS20-5X1-2000-808(Q)、FL-GS20-10X1-4000-808(Q)、FL-GS20-15X1-6000-808(Q) メーカー:Focuslight Technologies Inc. 商品コード:L003743

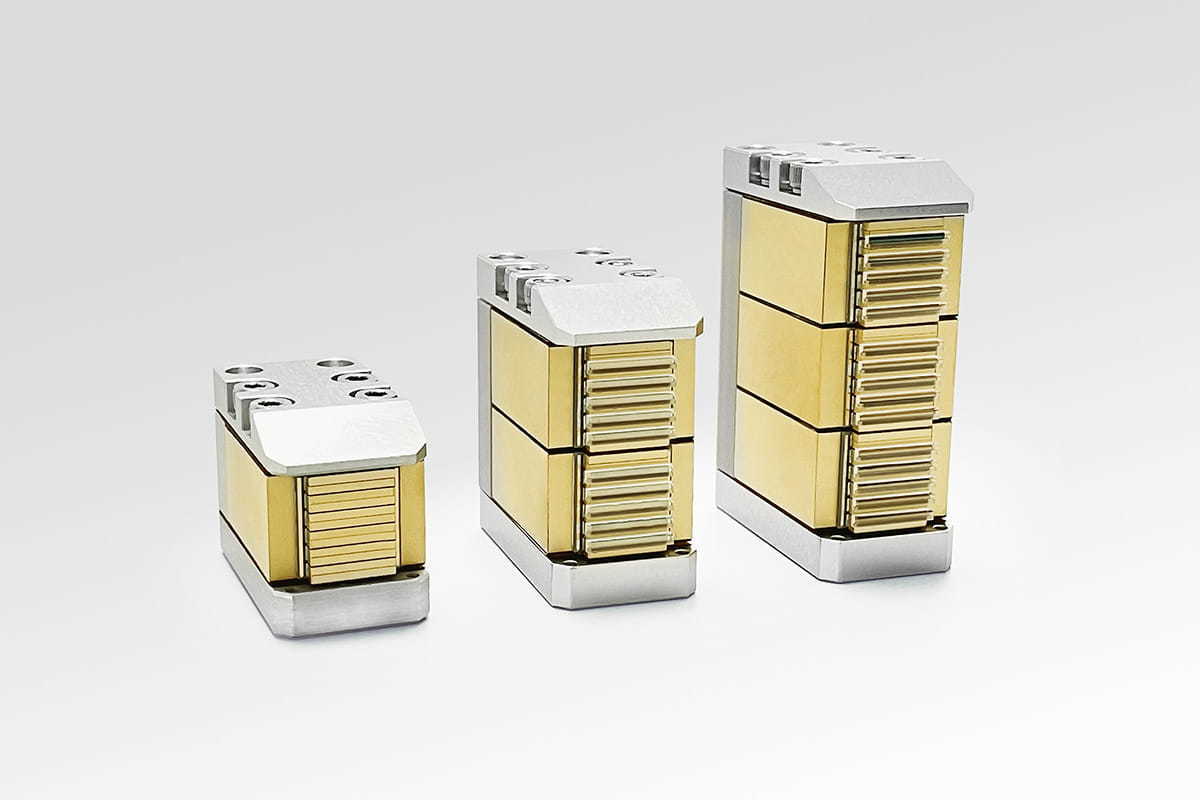

Conduction Cooled QCW Vertical Stack Diode Laser:GS20

波長: 806nm-810nm
出力: 400W-6000W
電流: -400A
電圧: -2V
テクノロジー: QCW
パルス幅: 400µs
冷却方法: Distilled water

< GS20 >
・Focuslight's "indium-free" eutectic bonding technologies with pre-deposited AuSn thin-film make an excellent lifetime of 10^9 pulses
・±2nm wavelength tolerance thanks to precise wavelength control through the entire laser packaging
・400W per bar peak power at 8% duty cycle; up to 500W per bar peak power at 1% duty cycle

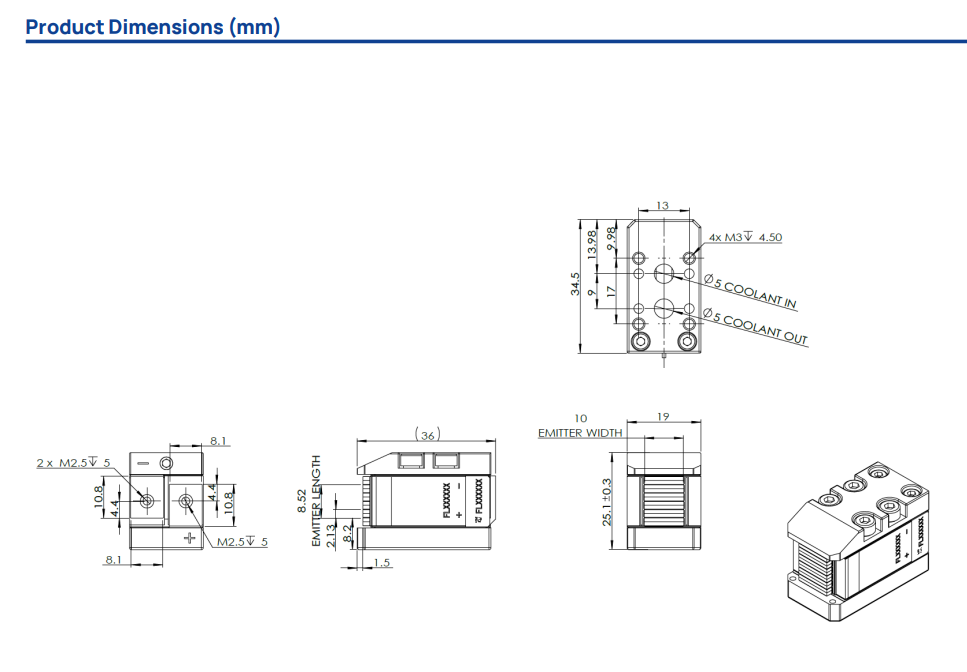

・Compact design: 16.45 cm³ / 68 grams for a basic module (5 bars with electrodes)
・Modular design: 5 bar module as basic unit -- easy expansion by adding more modules
・Cooling with distilled water instead of de-ionized water

< Applications >
・Illumination
・Scientific Research
・Solid-State Laser Pumping
・Industry

価格 地域 代理店
要問い合わせ 株式会社ハナムラオプティクス
要問い合わせ 京都府 株式会社光響
