型番：ADL-52051SM　メーカー：Arima Lasers Corporation　商品コード：L003722

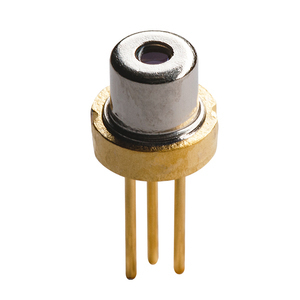

520nm / 5mW　Green APC Laser Diode (50°C high reliable operation)

520nm / 5mW　Green APC Laser Diode (50°C high reliable operation)
520nm / 5mW　Green APC Laser Diode (50°C high reliable operation)
520nm / 5mW　Green APC Laser Diode (50°C high reliable operation)
520nm / 5mW　Green APC Laser Diode (50°C high reliable operation)

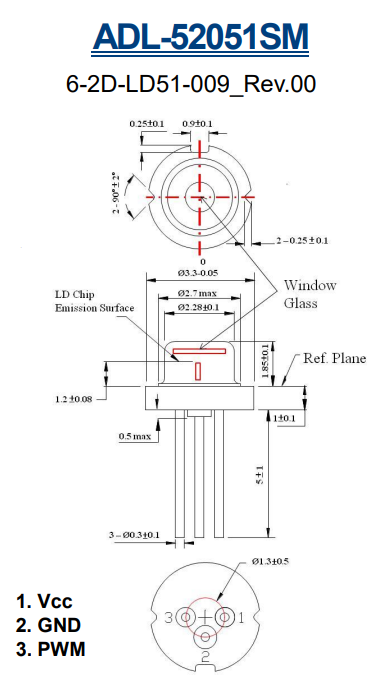

ADL-52051SM データシート.pdf

波長: 510m-530nm
出力: -5.0mW
電流: 50mA-80mA
電圧: 5.8V-7.0V

< FEATURES >
1. 520nm 5mW 50°C high reliable operation
2. Saving space and cost of laser module
3. Voltage driven LD, easy to use
4. Highly stable laser output power
5. Strong reverse bias protection
6. High ESD sustainability voltage
7. High speed short protection
8. Power source reverse protection

< APPLICATION >
1. Industry：laser level, illumination, meter, scanner, detector
2. Consumer：point light, sweeper, game lighting
3. Health：special wavelength light source

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 株式会社彩世
