型番：LC-LMD-650-12　メーカー：LASER COMPONENTS GmbH　商品コード：L003695

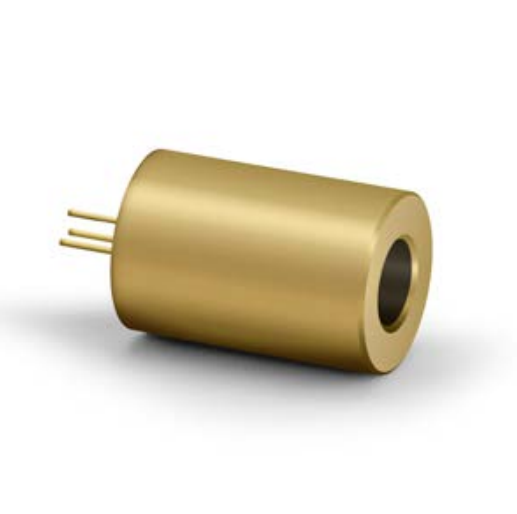

650nm Dot Laser Module Coaxial Aligned　

波長: 655nm-
出力: 0.5mW-5mW
電流: 30mA-40mA
電圧: 2.8V-3.3V

< Description >
With the LC LMD series LASER COMPONENTS introduces new low cost laser modules into the OEM market.
The absolutely smallest modules in the world contain the laser diode, drive electronics, and optics all in a metal housing. They can be operated directly with 3 VDC without additional electronics. The integrated APC (automatic power control) electronics allow the laser diode to be operated automatically in the working point with the desired output power, increasing the life expectancy of the module.
The smallest modules have a diameter of only 3.3 mm at a length of just 7 mm.
In total, dot lasers with a collimated or focusable beam at 635/650 nm are available for selection in twelve different kinds of housings.
LC LMD modules are the right choice if you are looking for an easy and inexpensive solution in large quantities. Typical applications for these laser diode modules are consumer products.

< Features >
・APC (auto power control) IC inside
・The output beam is aligned to the centre-line of the module. The tolerance of q /2 is ± 0.05°. It is a special purpose, reliable visible laser module and features in small size and easy operation.
