型番:ADL-52101SA4 メーカー:Arima Lasers Corporation 商品コード:L003719

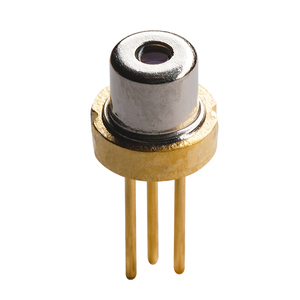

520nm / 10mW Green APC Laser Diode

波長: 510m-530nm
出力: -10mW
電流: 70mA-100mA
電圧: 6.0V-7.0V

< FEATURES >
1. 520nm 10mW 50°C high reliable operation
2. Saving space and cost of laser module
3. Voltage driven LD, easy to use
4. Highly stable laser output power
5. Strong reverse bias protection
6. High ESD sustainability
7. Stable output power vs. supply voltage from 6.0V to 7.0V.

< APPLICATIONS >
1. Industry:laser level, illumination, meter, scanner, detector
2. Consumer:pointer light, sweeper, TV game lighting
3. Health:special wavelength light source

価格 地域 代理店
要問い合わせ 株式会社彩世
