型番:LWIR DFB 10.38 µm QCL TO3 Pkg  メーカー:Adtech Optics, INC. 商品コード:L003252

10.38μm / 128.8mW LWIR DFB QCL TO-3 Pkg

波長: 10.38μm-
出力: -128.8mW
電流: -1.21A
電圧: -10.5V
パッケージ: TO-3 can
テクノロジー: LWIR DFB QCL

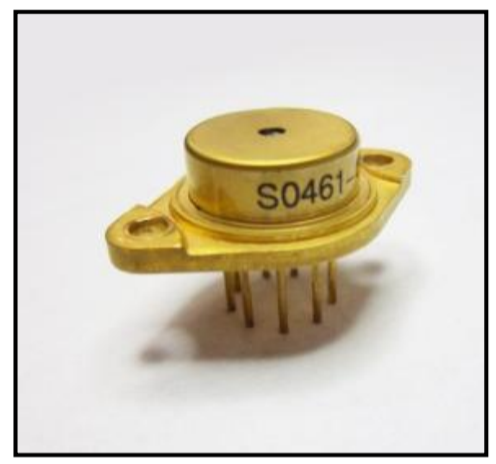

TO-3 can
OVERVIEW
・Thermo-electrically cooled. External heat sink still required.
・Pulse capable.
・Sealed in a nitrogen-purged atmosphere.
・Package dimensions (approx): 1.2 x 1.0 x 0.6 in (excluding pins)

(LASER SPECIFICATIONS)
Process: DFB
Oper. Temperature: 15 – 45 °C
Facet Coating: Front AR / Back HR

(ELECTRO–OPTICAL CHARACTERIZATION)
Driving Conditions;
Operation Mode: Pulse
Temperature: 15 °C

Electrical;
Thresh. Current: 0.69 A
Thresh. Voltage: 8.3 V
Laser Efficiency: 1.0 %

Optical;
Center Wavelength: 10.38 µm

Tuning Range;
Temperature: 0.80 nm/K
Current: 5.3 nm/A

Beam Divergence;
Typ. Fast Axis: 60 deg
Typ. Slow Axis: 40 deg
