型番：LS8-10-150-S10-00、LS8-1/10-30/150-S10-11、LS9-25-4-S10-00、LS9-220-8-S10-00、LS9-40/220-30/100-S10-11、LS5-5-4-S10-00、LS5-40-8-S10-00、LS5-10/40-30/150-S10-11 　メーカー：LASER COMPONENTS GmbH　商品コード：L003706

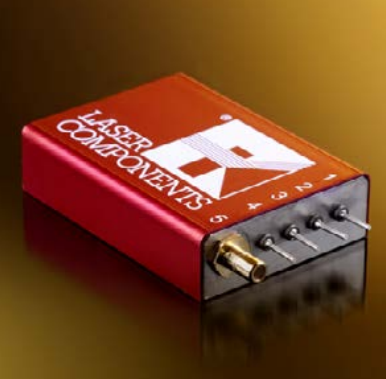

Pulsed Laser Diode Modules【LS-Series】

LS-Series データシート.pdf

波長: 850nm-1550nm
出力: 1W-220W
電圧: 12V-

< Description >
The pulsed laser diode driver is directly integrated into the modules.
No larger than a matchbook, both the LS and LC series are extremely powerful and adjustable. This makes them particularly well suited for R&D applications. In fact, because even a single module offers so many different control options, the time leading up to product launch can be reduced by a significant margin.
The L-CUBE series is new. Similar to the LC and LS series, both the driver and the pulsed laser diode are integrated in a compact cube with an edge length of only 40 mm. The L-CUBE can very easily be mounted in an optical bench or assembly.
L-CUBEはこちら

< Features >
▪ Wavelength: 850 nm/905 nm/1550 nm
▪ Optical peak power: 1 W – 220 W
▪ Short rise and fall times
▪ Compact housing
▪ Complete unit – no additional equipment needed
▪ Adjustable pulse power (optional)
▪ Adjustable pulse length (optional)
▪ Straightforward interfacing (standard drive voltages, TTL & CMOS trigger)
▪ Excellent temperature stability

< Applications >
▪ Rangefinding
▪ Surveying equipment
▪ Weapons simulation
▪ Laser radar/LIDAR
▪ Security barrier
▪ Ceilometer
▪ Medical
▪ Illumination
▪ Optical trigger

見積りBOXへ入れる欲しい物リストに登録

メーカーWebサイトへ

価格	地域	代理店
要問い合わせ		株式会社アルクゥズ
要問い合わせ		光貿易株式会社
要問い合わせ		株式会社アイ・アールエム・システム（IR Components のみ）
要問い合わせ		株式会社オプトサイエンス
