型番：905D1S3JT0XSMD　メーカー：LASER COMPONENTS GmbH　商品コード：L003699

High Power Multi-Junction Pulsed Laser Diode

High Power Multi-Junction Pulsed Laser Diode
High Power Multi-Junction Pulsed Laser Diode
High Power Multi-Junction Pulsed Laser Diode
High Power Multi-Junction Pulsed Laser Diode
High Power Multi-Junction Pulsed Laser Diode
High Power Multi-Junction Pulsed Laser Diode

905D1S3JT0XSMD データシート.pdf

波長: 895nm-915nm
出力: -120W

< Description >

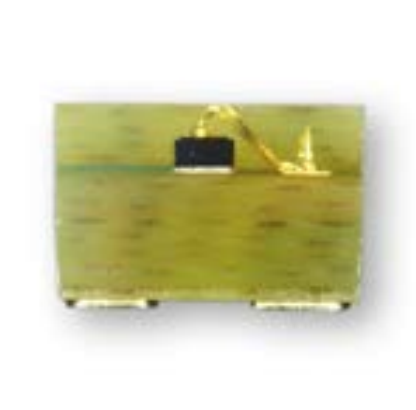

Our High-Power Multi-Juniction PLDs are also available as SMD components for easy direct mounting on a circuit board. These reliable InGaAs / GaAs structures deliver powers up to 120 W. They are available in source sizes of 225 μm (optional 75 µm or 150 µm). Due to their compact cubical design of mere 2 x 2 x 2 mm, our SMD PLDs may be used as top-looking or side-looking emitters.

< Features >
▪ Multi-junction device up to 120 W
▪ Low inductance package (1nH) suitable for short pulses
▪ 75 µm, 150 µm, and 225 µm source size
▪ Proven InGaAs / GaAs high reliability structure
▪ High power multi-junction structure for narrow far field
▪ Excellent temperature stability
▪ Reflow surface mount device MSL3 rating
▪ Top or side-looking

< Applications >
▪ LIDAR
▪ Range finding
▪ Surveying equipment
▪ Obstacle detection
▪ Medica
