波長: 1025nm-1045nm
出力: 150mW-170mW
電流: -2A
電圧: 1.6V-2.0V
パッケージ: 14-pin butterfly

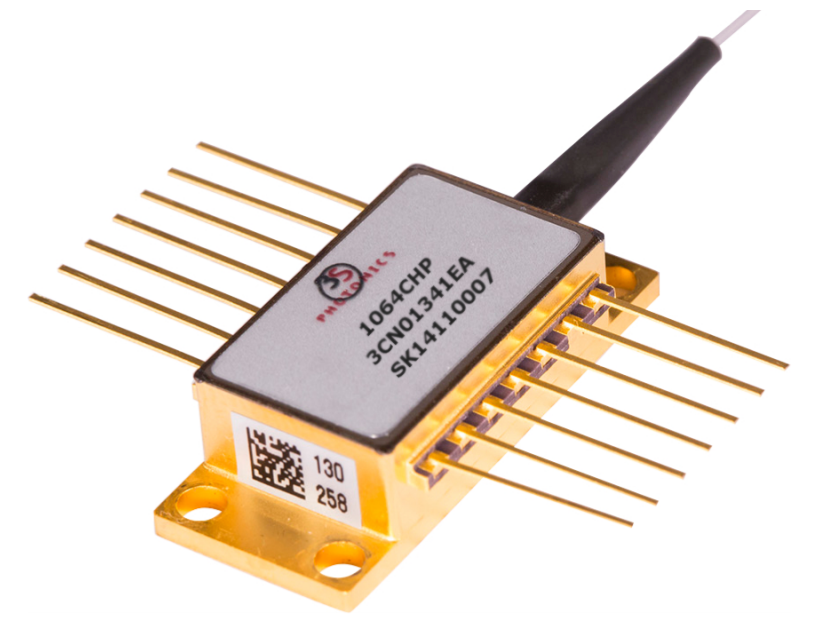

The 1064CHP 1030 nm high power single-mode laser module is a seed source designed for both pulsed and CW fiber laser applications that require operating wavelengths in the 1025-1045 nm range, and can be used as a pump module as well. This seed / pump module is powered by an in-house chip technology fully qualified, ensuring an outstanding level of performance, power consumption and reliability. They incorporate a thermoelectric cooler (TEC), a precision NTC thermistor and a back-facet monitoring photodiode. Modules are available with a single mode Polarization Maintaining Fiber (PMF) pigtail. The module meets the TelcordiaTM GR-468-Core requirements for hermetic pump modules.

The following parameters are specified BOL for a Tsubmount = 25 °C, Tcase = -5 °C to 75 °C, VBFM= -5 V and -50 dB max back-reflection unless otherwise stated.
[PUMP LASER]
Threshold current ※1 (mA)：Typ. 60　Max 80
Nominal operating power (mW) @ 350mA：Min 150　Typ. 170
Peak wavelength ※2 (nm) Pnom：Min 1025　Max 1045
Forward voltage (V) Pnom：Typ. 1.6　Max2.0
Operating peak power (W) <500 ns / 500 kHz ：Min 0.9　Typ. 1.0
Operating peak current (A) <500 ns / 500 kHz：Max 2

[MONITOR DIODE]
Responsivity (µA/mW)：Min 0.5　Max10
Dark current (nA) Vr = 5 V：Typ. 50　Max 100

[THERMO-ELECTRICAL COOLER ]
Cooling capacity (℃)：Min 50
TEC voltage (EOL) (V) Tcase= 75 °C, 1.1 x Inom：Max 3.3
TEC current (EOL) (A) Tcase= 75 °C, 1.1 x Inom：1.5
TEC power consumption (W) Tcase= 75 °C, 1.1 x Inom：4.95

[THERMISTOR]
Resistance (kΩ) 25 °C：Min 9.5　Typ.10　Max 10.5
Constant (K)：Min 3600　Max 4200

※1 Ith is the intersection point with the x-axis of a linear fit of the P(I) curve between 15 mW and 50 mW
※2 Center Wavelength target upon customer request
