型番：ALS-1300-62-85-HH、ALS-1300-50-85-HH、ALS-0850-62-85-HH、ALS-0850-50-85-HH　メーカー：Arden Photonics　商品コード：L003676

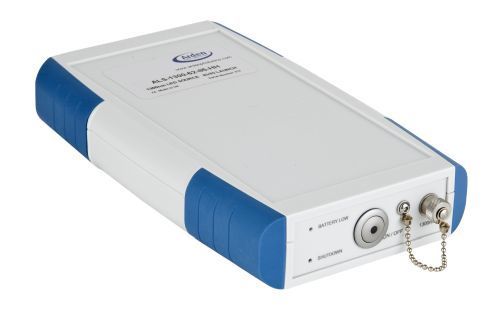

Aerospace Light Source (LED) with 85/85 launch condition

Aerospace Light Source (LED) with 85/85 launch condition
Aerospace Light Source (LED) with 85/85 launch condition

ALS データシート.pdf

波長: 850nm-1300nm
重さ: 0.5kg

< Description >
The ALS handheld optical fiber source is used with an Optical Power Meter to measure the loss of multimode optical fiber systems, in applications which require 85/85% Limited Phase Space modal launch conditions. the ALS provides excellent stability and ease of use. The 85/85% modal launch condition is used specifically in the aerospace industry, and it’s widely used by Airbus for certification of its optical fiber harnesses.

・Compact hand held light source
・Insertion Loss testing for Aerospace applications
・Provides stable 85/85% launch conditions for multimode fiber measurements
・1300nm or 850nm LED
・For 62.5/125 µm or 50/125 µm fiber
・Rechargeable Li-Ion battery with 48hr life
