型番：SPOT-10-100-532　メーカー：Elforlight Ltd.　商品コード：L003198

532nm / 10µJ　Q-Switched Laser Nanosecond (Elforlight)

SPOT　データシート.pdf

波長: 532nm-
エネルギー: 10µJ-
テクノロジー: Q-Switched Laser
パルス幅: < 1.8ns
ビーム径: ~1mm
エネルギー安定性: <+/- 2 % over 8 hours

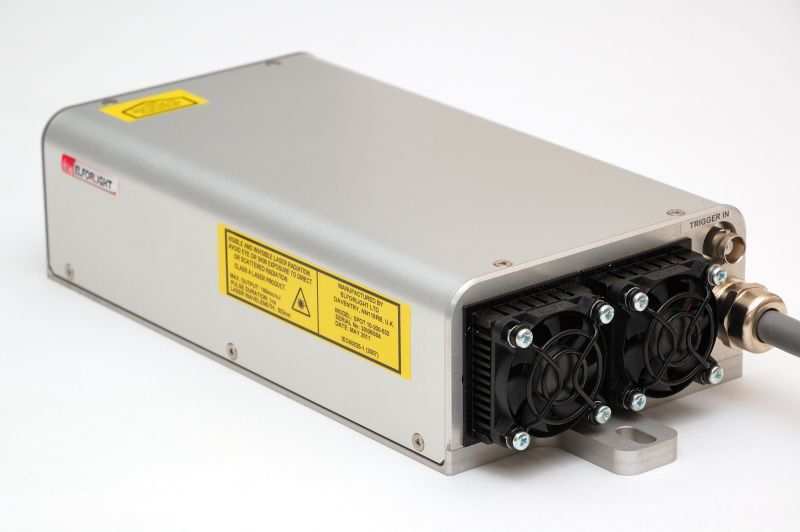

冷却方法: Air cooled

[Specification]
Repetition Rate：Single shot to > 50kHz
Spatial Mode：TEM00, M2 < 1.2
Jitter：< +/- 1ns from external trigger input (typ.0.5ns)
Operating temp：10-35 deg. C

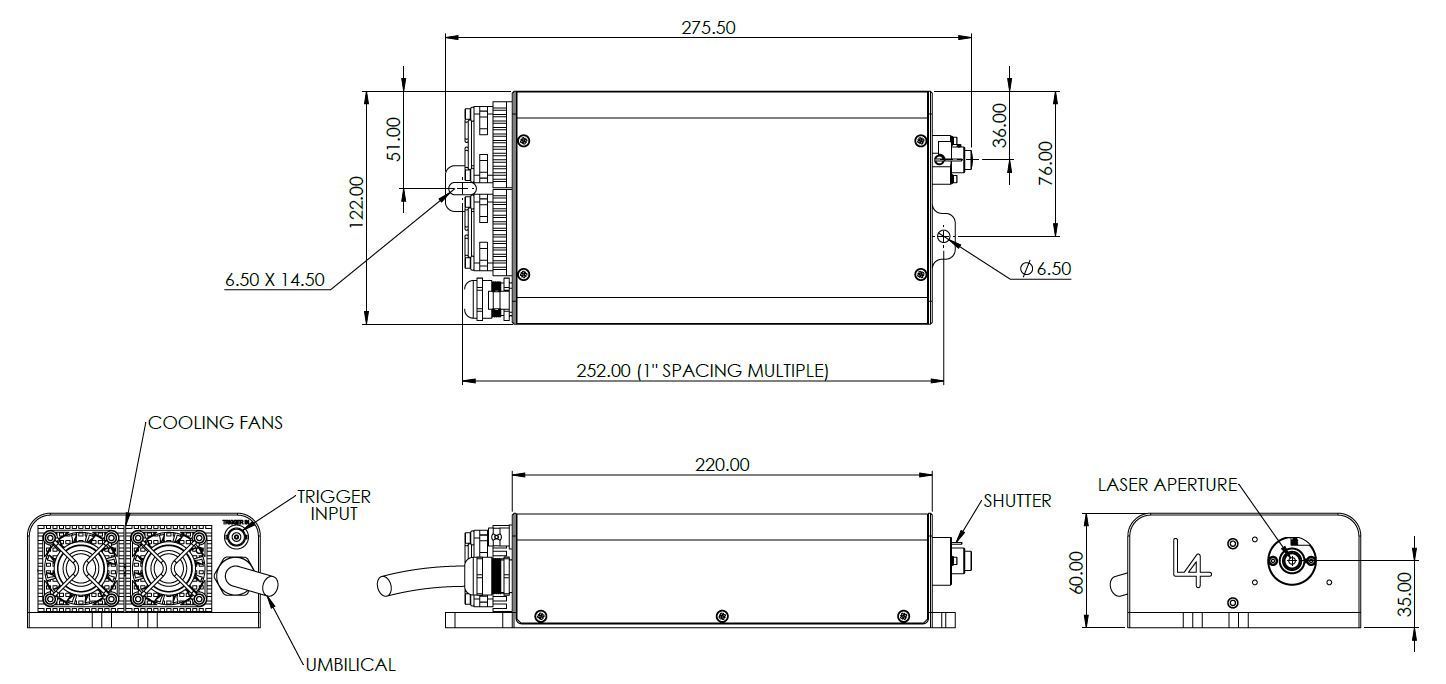

Laser Head Size：220mm long x 122mm x 60mm
Frequency Control：TTL trigger input required at up to 50kHz
Power requirement：100 - 240 VAC, 50 / 60 Hz Max 100W

[Overview]

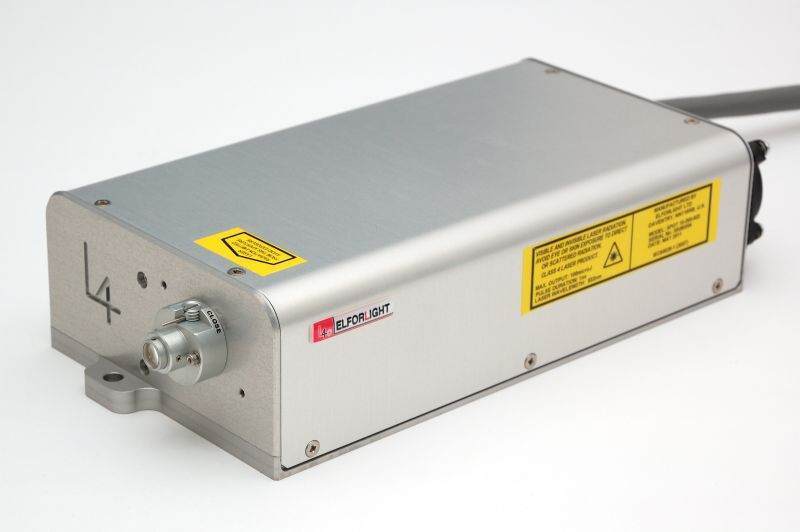

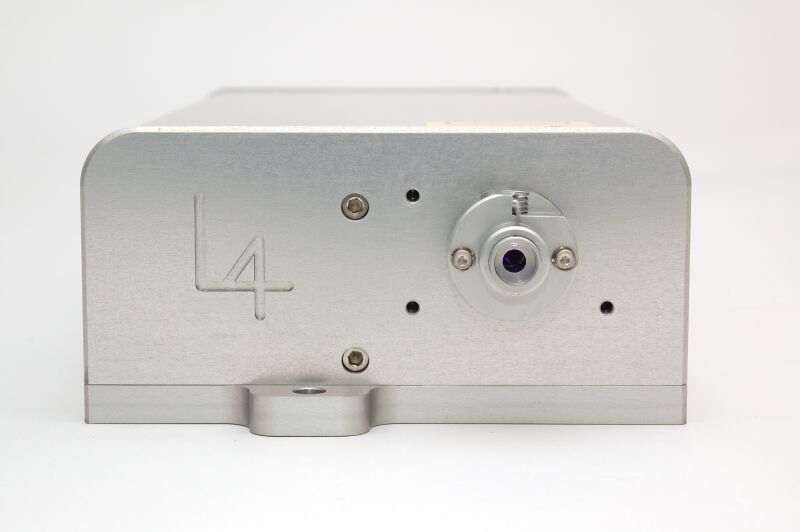

The SPOT products are actively Q switched diode pumped solid state lasers. Utilising advanced technology, these lasers have been developed to provide a short pulse output with very low jitter. The compact design enables the laser to be easily integrated into scientific instrumentation. Fundamental YAG wavelength and its harmonics down to 355nm are offered within this product range. SPOT lasers can also be used to pump Elforlight dye laser products.

[Features]
Pulse width <2ns and low jitter

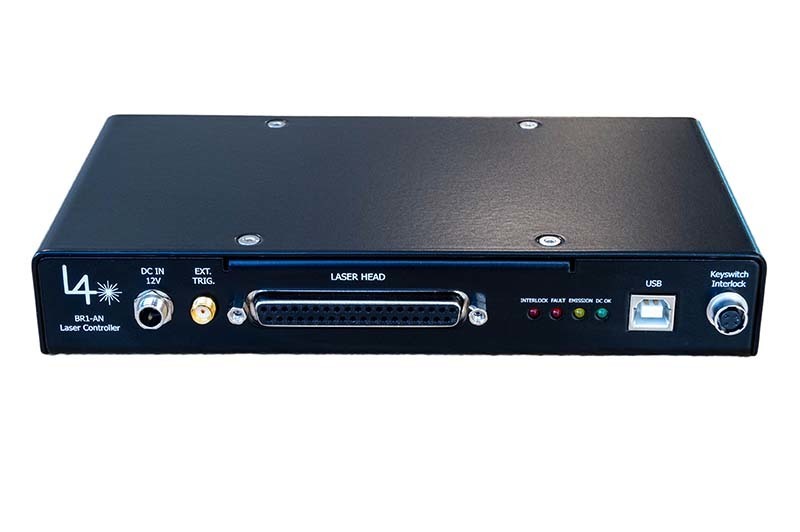

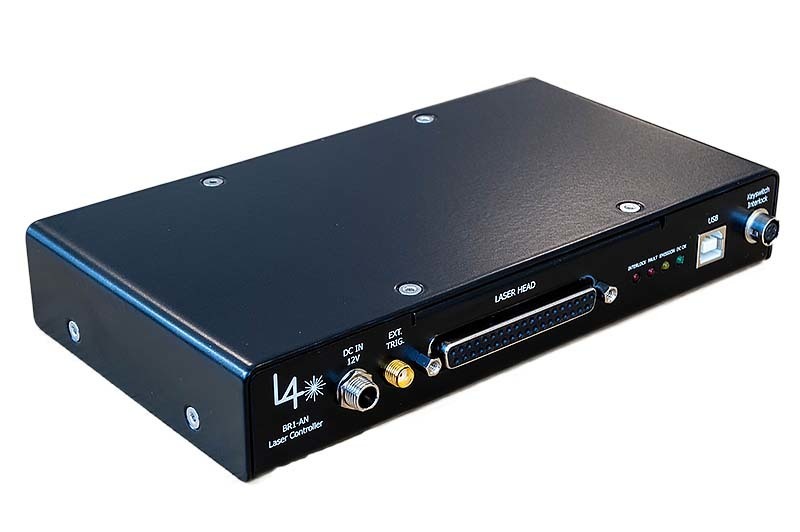

USB (RS232) interface
Interlock, on/off keyswitch interface
Manual safety shutter
Active current limit
Auto power up sequence: warmup, current mode
Laser diode protection circuitry
Monitor following parameters:
Diode current limit, diode current setpoint, actual diode current
Diode & chipset temperature setpoint, actual temperature
Laser head & controller temperatures
Internal trigger parmeters
Diode on-time hour counter
Heatsink overtemp sensor
Laser-head overtemp sensor
Designed and manufactured in the U.K.
