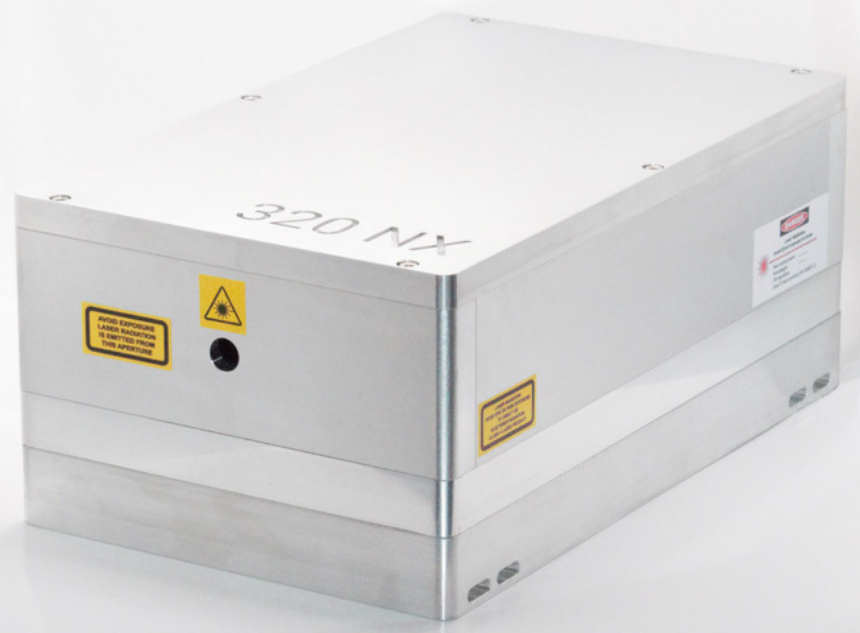

型番:320 NX  メーカー:Skylark Lasers Limited 商品コード:L003629

Ultra-narrow Linewidth UV Laser

波長: 320nm-
出力: -200mW
ビーム径: 0.6 - 1.2 mm
拡がり角: ≤ 2.5 mrad, diffraction limited
エネルギー安定性: ≤ 2.0 % Peak to Peak (over 8 hours)

320 NX laser offers DPSS CW single-frequency operation within the UV wavelength range, offering up to 200mW power, outstanding beam characteristics, high output stability, extremely low noise, a small footprint and a versatile software package - making it suitable for a wide range of applications and system integration.

< Key Features >
Narrow Linewidth ≤ 0.5 MHz
High Power Stability ≤ 2.0 % Peak to Peak
High Spectral Stability ± 1.0 pm
Excellent Beam Quality

< Integration Features >
USB Connectivity
Software Control
Heatsink Options
Remote Diagnostics

< Specifications >
Output Power (fixed value within range) up to 200 mW
Spectral Bandwidth ≤ 0.5 MHz
Spatial Mode TEM00
Spectral Stability (over 8 hours) ± 1.0 pm
Coherence Length > 100 m
Output Power Stability (over 8 hours) ≤ 2.0 % Peak to Peak
Output Power Noise (10 Hz - 10 MHz) ≤ 0.1 % RMS
Beam Diameter at Output Aperture 0.6 - 1.2 mm
Beam Pointing Stability ≤ 5 µrad/°C
Polarisation Ratio ≥ 100:1, vertical

< Laser Head Dimensions >
L X W 240 x 150 mm
Beam Height 65 mm

< Environmental Conditions >
Ambient Temperature Range 18 - 30 °C
Laser Head Interface Stability ± 1.5 °C
Storage 0 - 50 °C
Humidity 5 - 95 %, non-condensing

< Applications >
Semiconductor inspection, wafer fabrication, lithography, confocal microscopy, raman spectroscopy, biomedical / bioengineering, flow cytometry, fluorescence, disc mastering, diffraction grating mastering, high precision optic … and more.

価格 地域 代理店
要問い合わせ 株式会社東京インスツルメンツ
