型番:CB635-5-3(16X45)45DEG メーカー:Picotronic GmbH 商品コード:L003621
メーカー希望小売価格: €92,35
波長: 635nm-
出力: 5mW-
電流: 25mA-80mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Cross Laser
拡がり角: B - 0.3 mrad

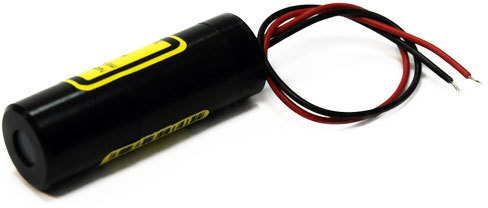

Isolated cross lasermodule, red, 45°, 635nm, 5mW, 3V DC, 16x45mm, class 1
< Main Parameters (*) >
Wavelength typ 635 nm
Optical Output Power typ 5 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 25 typ 55 max 80 mA
Operating Temperature min -20 max 50 °C
Storage Temperature min -40 max 80 °C
< Main Data >
Warranty 1 years
< Technical Parameters >
Lifetime > 5,000 h
RoHS yes
< Optical Parameters >
Beam Shape Cross
Laser Class 1
Divergence B - 0.3 mrad
Fan Angle 45 °
Line Thickness <1.5mm@3m
Operating Distance 5 m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed (3000mm)
Verticality < ± 0.5 °
< Electrical Parameters >
Potential of Housing isolated
Power Supply LFNT-3

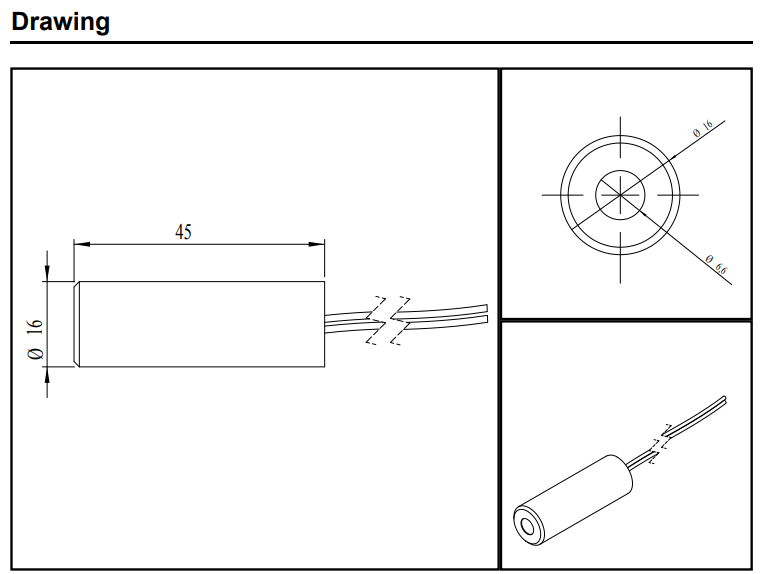

< Mechanical Parameters >
Size Ø16x45 mm
Material aluminium
Cable length 100 mm
Wire type Belden, Typ 1007, 26AWG
Output Aperture 6.8 mm
Housing Color black
Weight 23.5 g
Stripping of wire 5 mm
(*) Over the complete operating temperature range
