型番：　メーカー：Photonics Industries International Inc.　商品コード：L002698

Nanosecond Laser, 1064nm, 40W

Nanosecond Laser, 1064nm, 40W
Nanosecond Laser, 1064nm, 40W
Nanosecond Laser, 1064nm, 40W
Nanosecond Laser, 1064nm, 40W
Nanosecond Laser, 1064nm, 40W
Nanosecond Laser, 1064nm, 40W
Nanosecond Laser, 1064nm, 40W
Nanosecond Laser, 1064nm, 40W

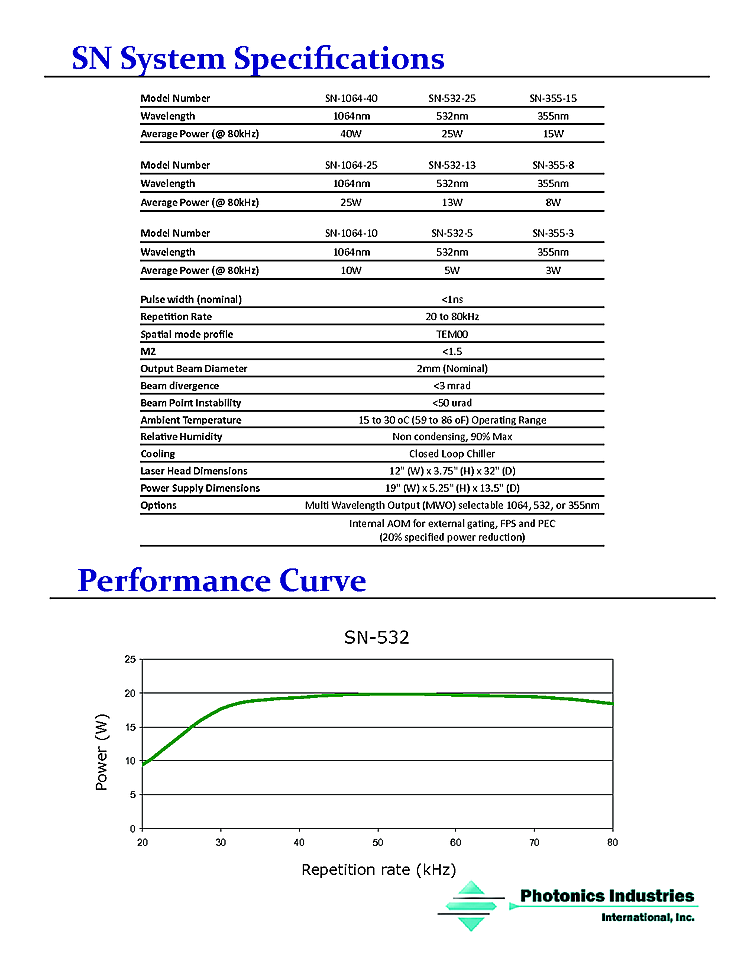

波長: 1064nm-1064nm
出力: 40W-40W

Nanosecond laser from Photonic Industries. Key features of the industrial grade nanosecond laser include closed loop chilled, small form factor, compact laser head using diode pumped technology and provides wide range of powers and harmonic options available. Applications for high energy nanosecond pulsed laser include glass cutting, FPCB marking system, intraglass/subsurface marking, ablative drilling, scribing, solar cell processing, pump laser and Lidar. High peak power with pulse widths less then 1ns and pulse repetition rate from 20kHz to 80kHz. Excellent beam quality of the nanosecond with M2<1.5 and divergence less then 3mrad. Nanosecond laser with average output power up to 40 watts at a wavelength of 1064nm.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 北海道 レイチャーシステムズ株式会社
