型番:CB635-2-24(16X64)5DEG-F1000 メーカー:Picotronic GmbH 商品コード:L003615

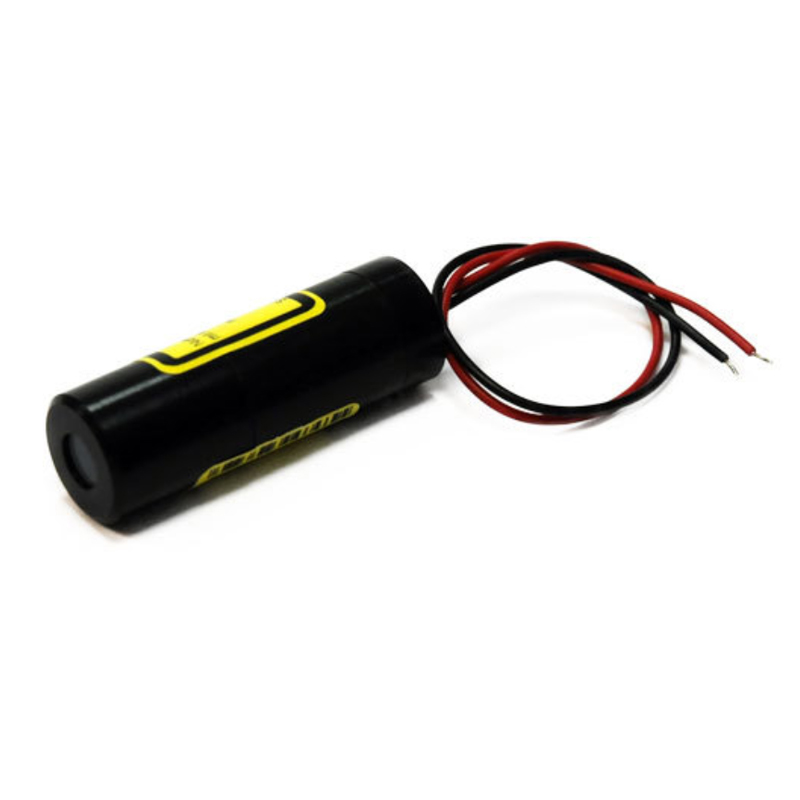

2mW Red Isolated Cross Lasermodule (5DEG-F1000)

メーカー希望小売価格: €84,79 波長: 630nm-640nm
出力: 1.5mW-3mW
電流: 10mA-40mA
電圧: 23.4V-24.5V
パッケージ: MODULE
テクノロジー: Cross Laser
拡がり角: B - 0.3 mrad

Isolated Cross lasermodule, red, 5°, 635nm, 2mW, 24V DC, 16x64mm, class 1

• Operating Voltage 24 V DC
• Laser Class 1
• Fan angle 5 °
• Uniform line thickness
• Fixed focus

< Main Parameters (*) >
Wavelength min 630 typ 635 max 640 nm
Optical Output Power min 1.5 typ 2 max 3 mW
Operating Voltage min 23.4 typ 24 max 24.5 V DC
Operating Current min 10 typ 20 max 40 mA
Operating Temperature min -20 max 50 °C
Storage Temperature min -40 max 80 °C

< Main Data >
Warranty 1 years

< Technical Parameters >
Lifetime > 5,000 h
RoHS yes

< Optical Parameters >
Beam Shape Cross
Laser Class 1
Divergence B - 0.3 mrad
Fan Angle min 5 °
Fan Angle 5 °
Fan Angle max 10 °
Line Thickness <1mm@1m
Operating Distance 1 m
Optics glass lens AR coated
Laser technology Single Mode Diode
Protection Lens no
Focus fixed (1000mm)
Verticality < ± 0.5 °

< Electrical Parameters >
Potential of Housing isolated

< Mechanical Parameters >
Size Ø16x64 mm
Material aluminium
Cable length 100 mm
Wire type Belden, Typ 1007, 26AWG
Output Aperture 6.8 mm
Housing Color black
Weight 23.5 g
Stripping of wire 5 mm

(*) Over the complete operating temperature range
