型番：Necsel NovaTru™ Power 633　メーカー：Necsel Communication＆Instrumentation Systems, Inc.　商品コード：L003598

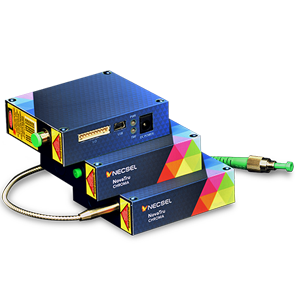

Necsel NovaTru™ Power 633 Power Stabilized Laser Module

Necsel NovaTru™ Power 633 Power Stabilized Laser Module
Necsel NovaTru™ Power 633 Power Stabilized Laser Module

出力: 35mW-90mW
ビーム径: 1.2 x 0.6 mm
拡がり角: 0.8 x 1.3

This laser module offers ultra stable power performance with VBG locked-on linewidth and/or precise power control in the same compact footprint as our other NovaTru modules. It’s also available in multimode and single mode versions.

< FEATURES & BENEFITS >
Ultra Stable Output Power
Compact, Small Box Design
Low Power Consumption
Power Stabilized to <0.4%

< APPLICATIONS >
Raman Excitation
Flow Cytometry
Semiconductor Processing
Metrology

< Operating Specifications >
Output power (Free Space)：TYPICAL 90mW
Output power (Fibered)：TYPICAL 35mW
Spectral linewidth：TYPICAL 1-2nm
Wavelength stability (over 8 hours)：TYPICAL +/- 1nm
Optical power stability (over 8 hours)：TYPICAL <0.4% pk-pk
Noise (10Hz–100MHz)：TYPICAL < 0.2%rms
Adjustable Output Power：TYPICAL 5-100%

< Free Space Optical Specifications >
Beam quality (m^2 typical) vertical：TYPICAL 1.2
Beam quality (m^2 typical) horizontal：TYPICAL 1.1
Beam size vertical：TYPICAL 1.2mm
Beam size horizontal：TYPICAL 0.6mm
Beam aspect ratio：TYPICAL 2
Beam divergence—vertical：TYPICAL 0.8
Beam divergence—horizontal：TYPICAL 1.3
Beam pointing stability (over 8 hours)：TYPICAL < 50µrad
Beam pointing accuracy：TYPICAL 1degrees
Polarization ratio：TYPICAL 100:1linear

< Electrical Specifications >
Case temperature：TYPICAL 10-40°C
Humidity (non-condensing)：TYPICAL 5-95%
DC input 1：TYPICAL 0.5A @ 9V
DC input 2：TYPICAL 2A @ 3V
Warm-up time：TYPICAL 10sec
Power consumption (typical/max)：< 12W
