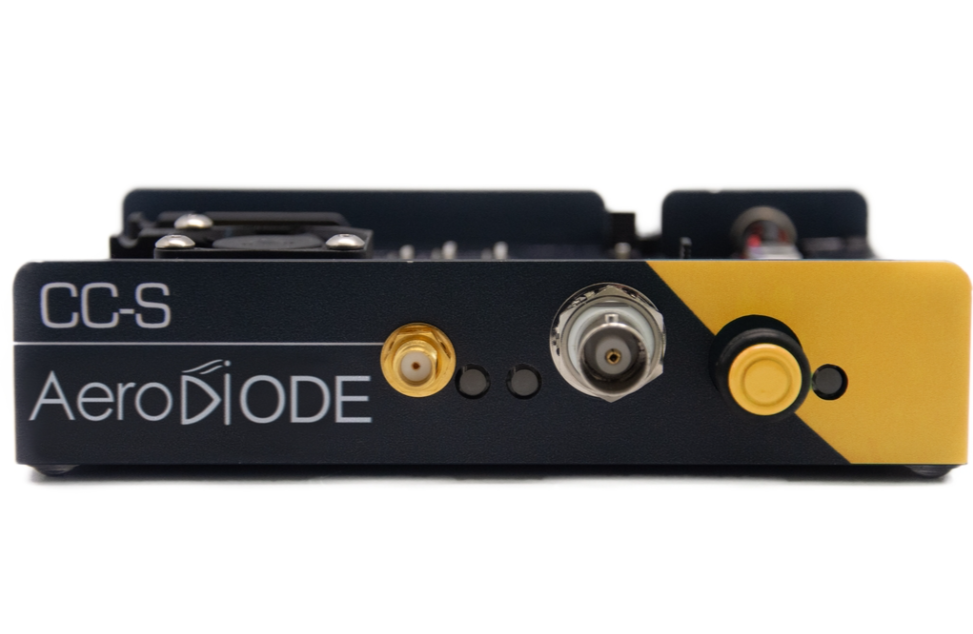

型番:CCS-std、CCS-HP、CCS-UHP、CCS-HPP メーカー:AeroDIODE 商品コード:L003578

Pulsed Laser diode driver & TEC control

メーカー希望小売価格: CCS-std ¥418,064 / CCS-HP ¥532,289 / CCS-UHP ¥684,589 / CCS-HPP ¥913,039 電流: 0.8A-9A
電圧: 1V-24V
冷却方法: Air

This pulsed laser diode driver generates any pulsed or CW optical signal from 1 ns to CW. The GUI software lets the user have total control of all module functions. It includes several libraries for software integration.

This pulsed laser diode driver delivers precision pulse which are generated internally by an on-board pulse generator, or on-demand from an external TTL signal. It is compatible with most of the available laser diode form factors. Butterfly laser diodes are easily driven in CW or pulsed regime at any frequency and any duty cycle up to 250MHz repetition rate.

< Pulsed laser diode driver key features >

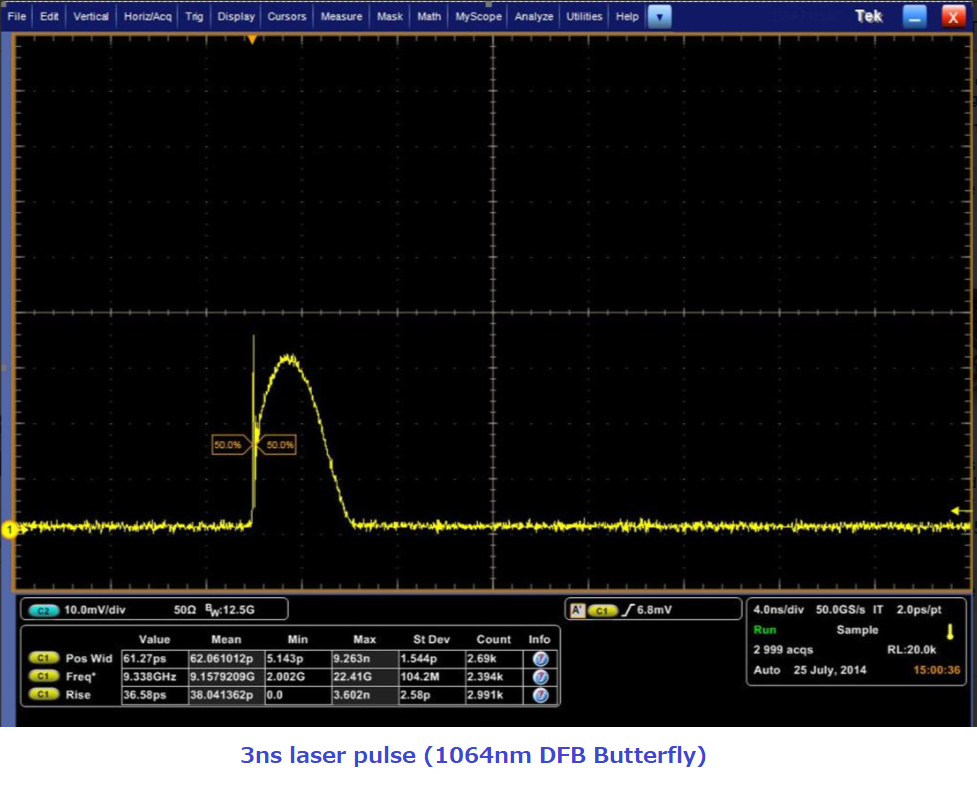

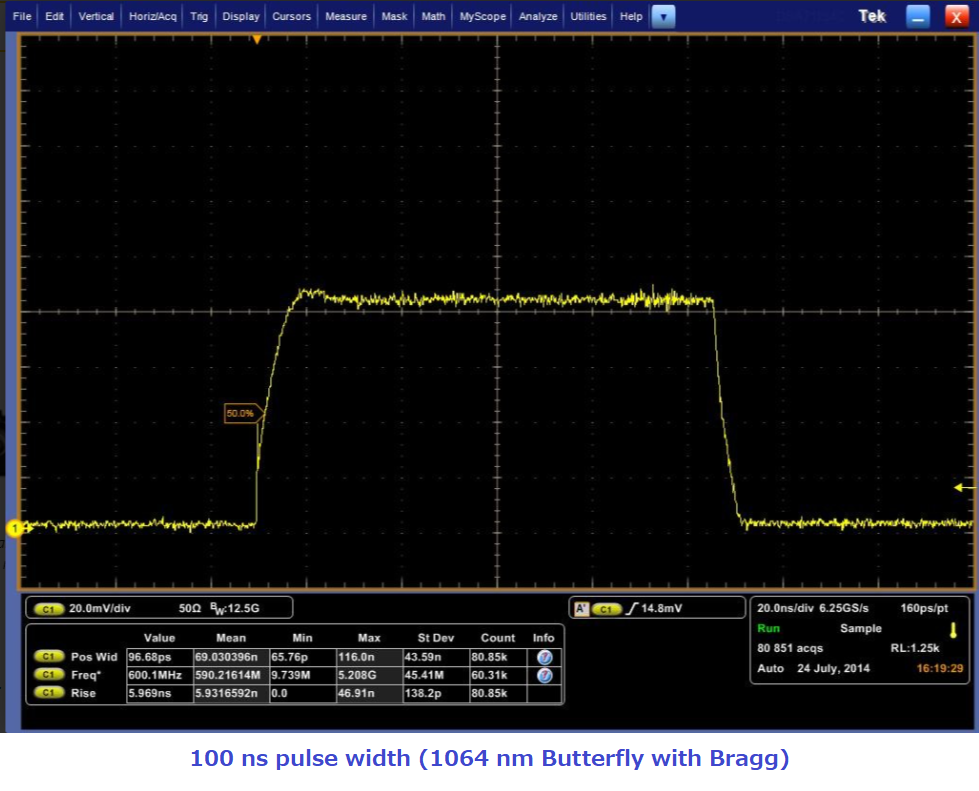

・The user can set pulse width from 1 ns to CW
・It includes an integrated TEC controller.
・A special thermal interface is included which do not require any thermal grease.
・It can reach up to 250 MHz repetition rate (4 MHz in a standard version)
・Down to 500 ps pulse risetime

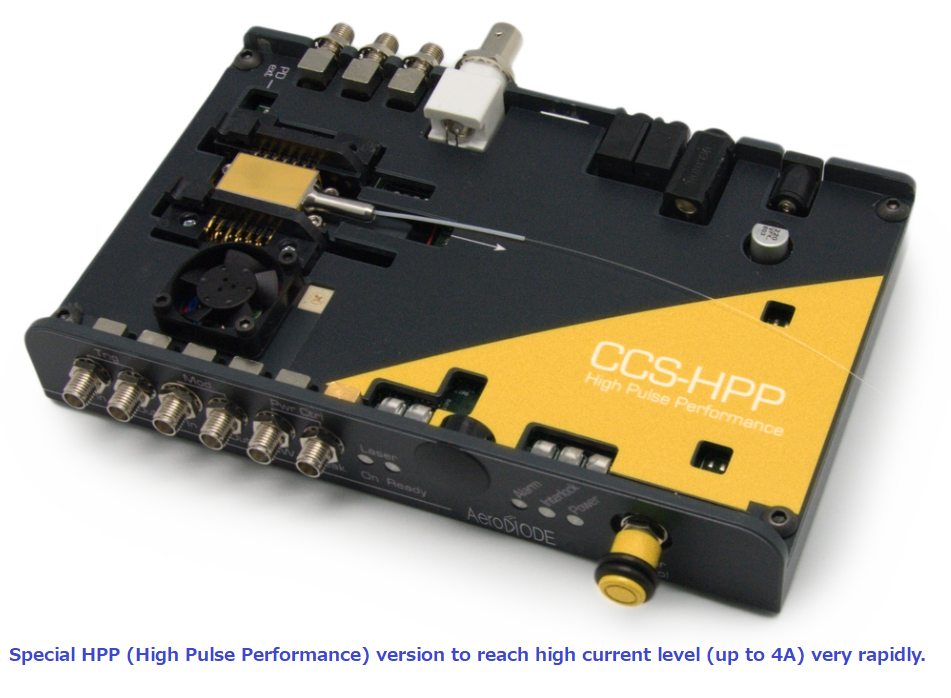

・Up to 1500 mA peak current (3500 mA option)

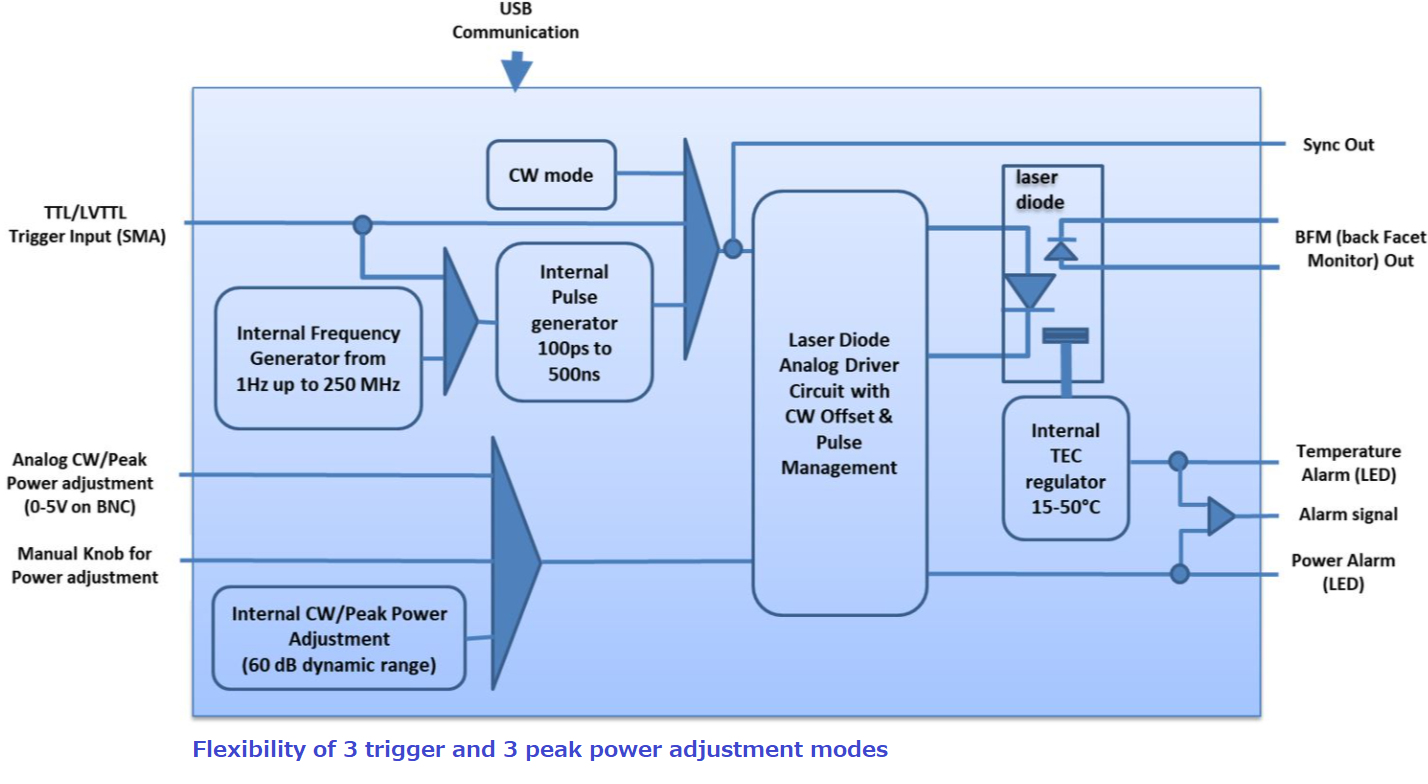

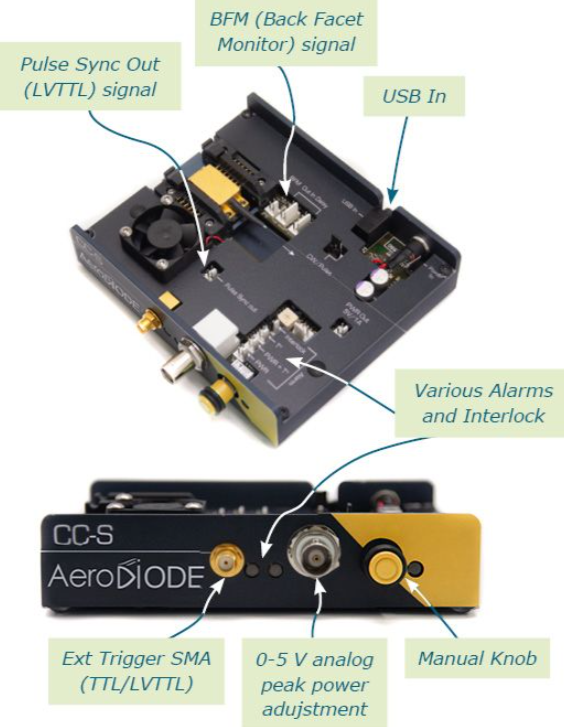

・The user has the flexibility to choose from three different pulse generation sources : internal, external, external trigger with internal pulse generator.
・The user has the flexibility to choose from 3 peak power adjustment modes : USB, manual & analog (0-5 V)
・A smart control (USB) interface is included with several Libraries (LabVIEW VIs, Hexa, Python, DLLs)

< Applications >
This high speed driver can be used for laser seeding, LIDAR or 1D-3D-sensing testing, VCSEL evaluation, Fiber lasers etc.

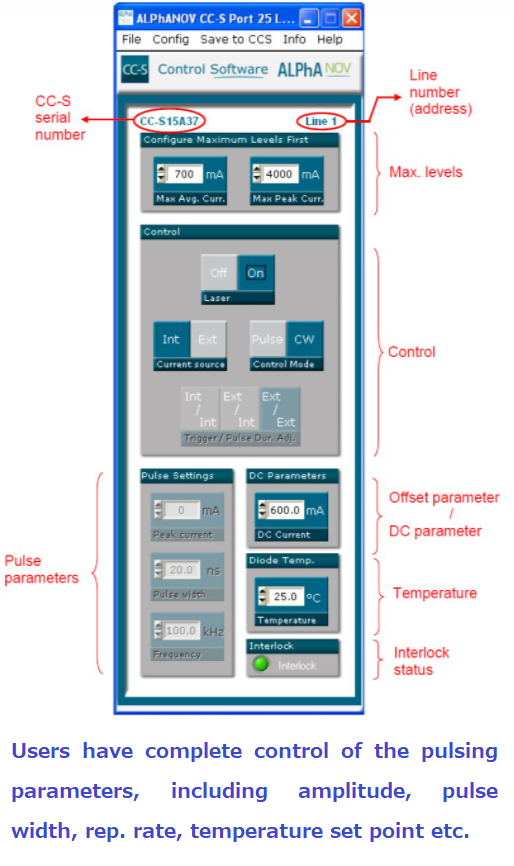

< GUI & Libraries >
The GUI software lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)
