型番：1450nm fiber coupled laser diodes　メーカー：AeroDIODE　商品コード：L003570

1450nm Laser Diode CW or Pulsed - 3 models DFB and Bragg

1450nm Laser Diode CW or Pulsed - 3 models DFB and Bragg
1450nm Laser Diode CW or Pulsed - 3 models DFB and Bragg
1450nm Laser Diode CW or Pulsed - 3 models DFB and Bragg
1450nm Laser Diode CW or Pulsed - 3 models DFB and Bragg
1450nm Laser Diode CW or Pulsed - 3 models DFB and Bragg
1450nm Laser Diode CW or Pulsed - 3 models DFB and Bragg
1450nm Laser Diode CW or Pulsed - 3 models DFB and Bragg
1450nm Laser Diode CW or Pulsed - 3 models DFB and Bragg
1450nm Laser Diode CW or Pulsed - 3 models DFB and Bragg
1450nm Laser Diode CW or Pulsed - 3 models DFB and Bragg

1450nm laser diodes データシート.pdf

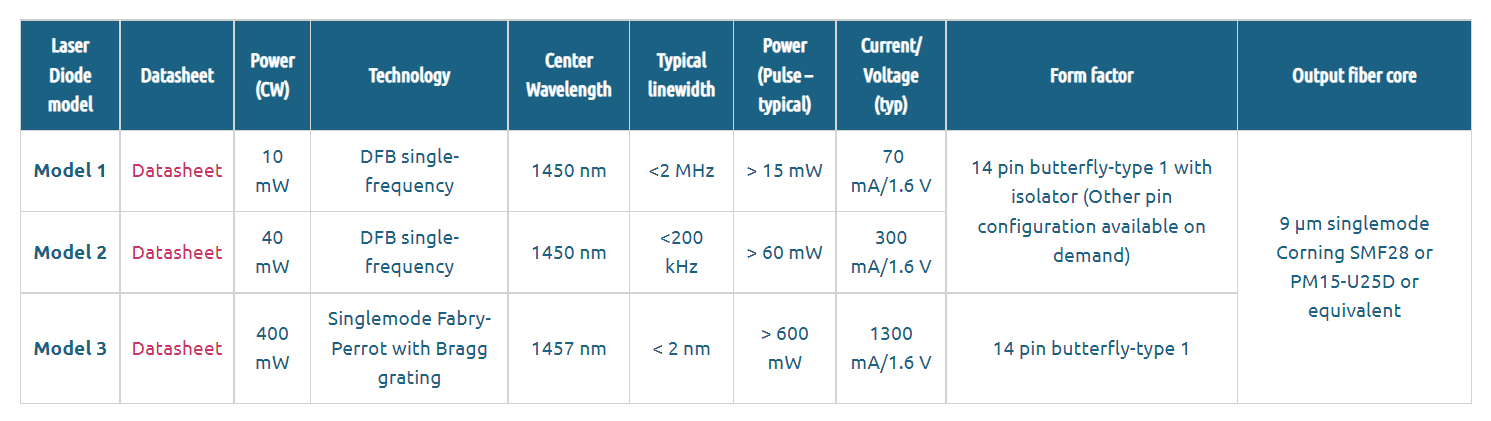

波長: 1445nm-1458nm
出力: 10mW-600mW
電流: 60mA-1300mA
電圧: 1.6V-2.0V

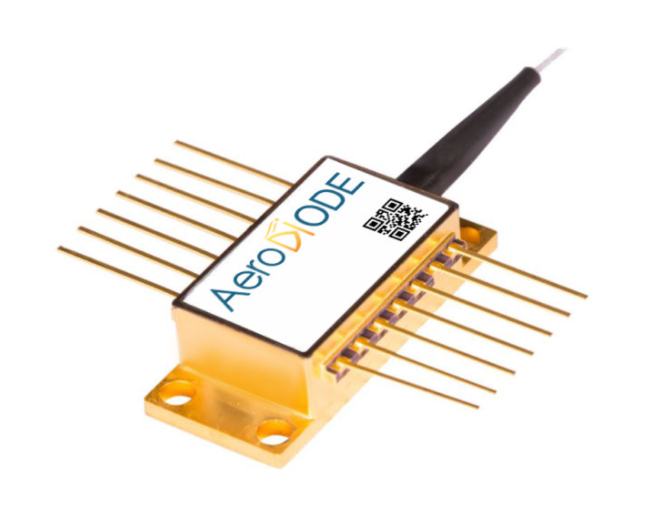

パッケージ: 14 pin Butterfly package
テクノロジー: DFB、Fabry-Perrot with Bragg

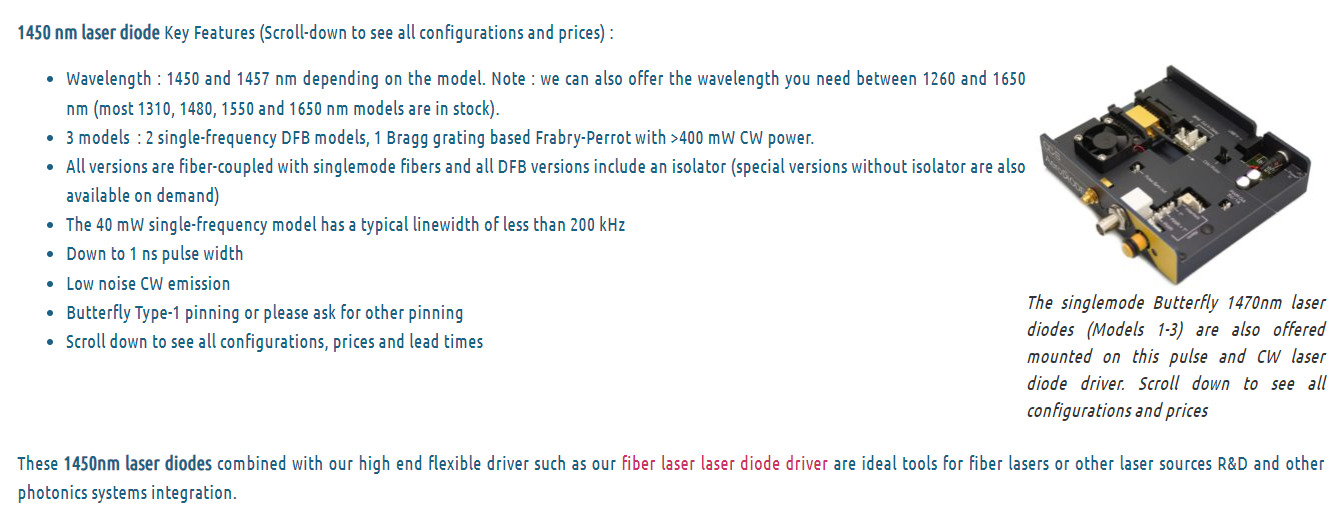

These fiber-coupled 1450 nm laser diodes are offered as stock items or associated with either a CW or pulsed laser diode driver. 2 butterfly DFB models are single-frequency versions up to 40 mW. They are compatible with our low noise CW or high speed nanosecond pulsed drivers and this makes it an optimal solution for thermal superficial laser matter interaction systems or other pumping applications.

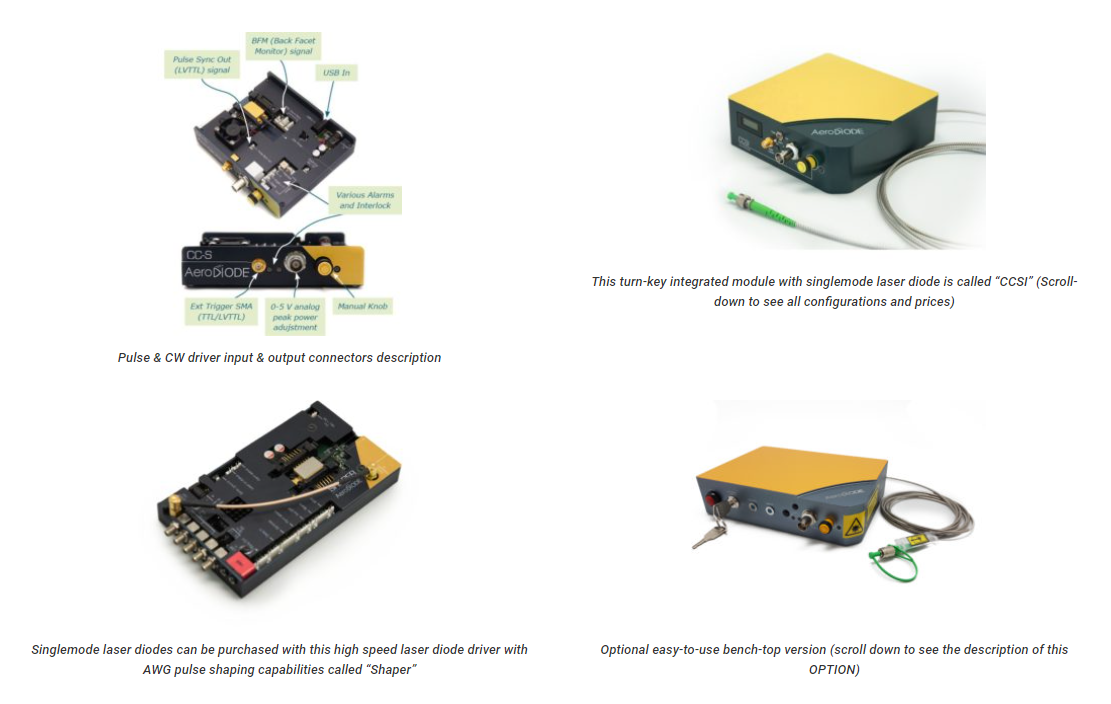

The singlemode 1450 nm laser diodes are extremely stable and low noise in CW regime due to the DFB or Bragg-grating technologies. Most Turn-key diode + driver solutions are optimized from single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 1450nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal.
