型番：1390nm fiber coupled laser diodes　メーカー：AeroDIODE　商品コード：L003569

1390nm Laser Diode 3 DFB models - CW or Pulse

1390nm laser diodes データシート.pdf

波長: 1385nm-1395nm
出力: 10mW-80mW
電流: 60mA-350mA
電圧: 1.6V-1.8V

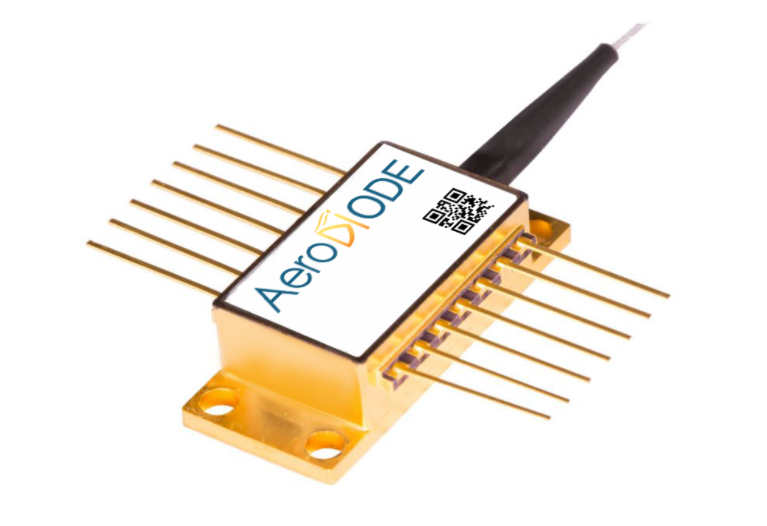

パッケージ: 14 pin Butterfly package
テクノロジー: DFB

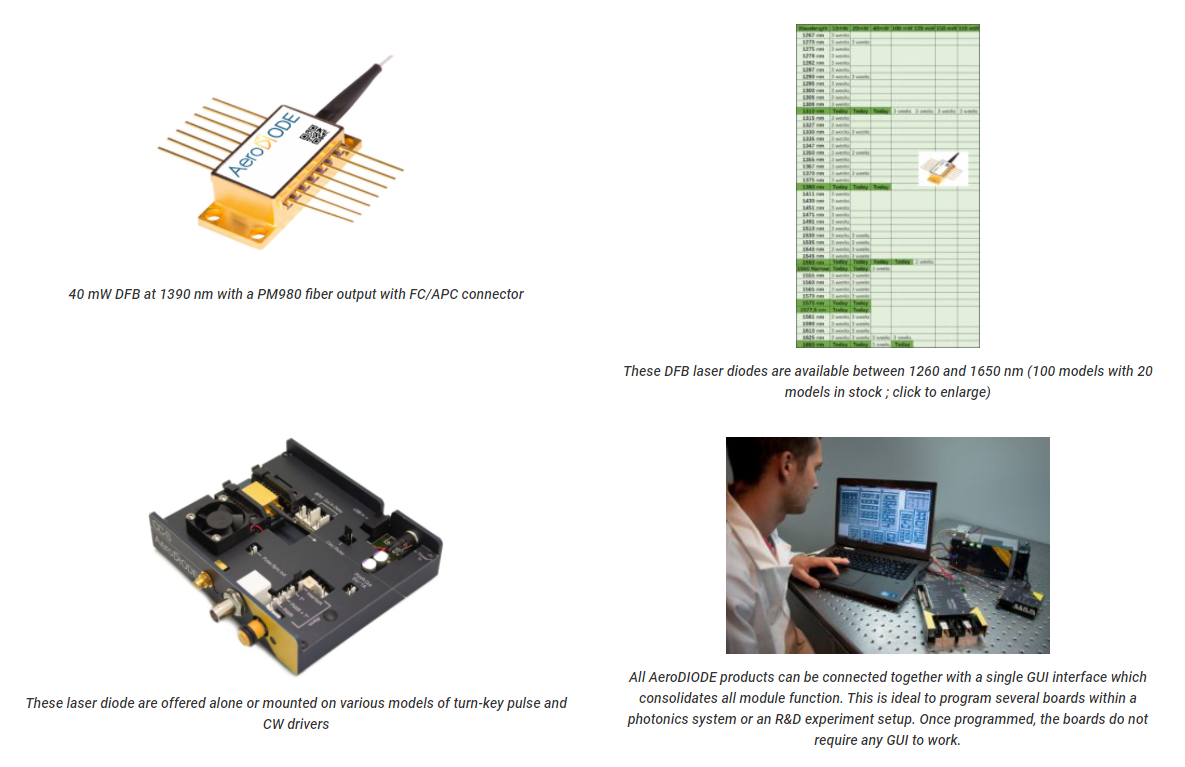

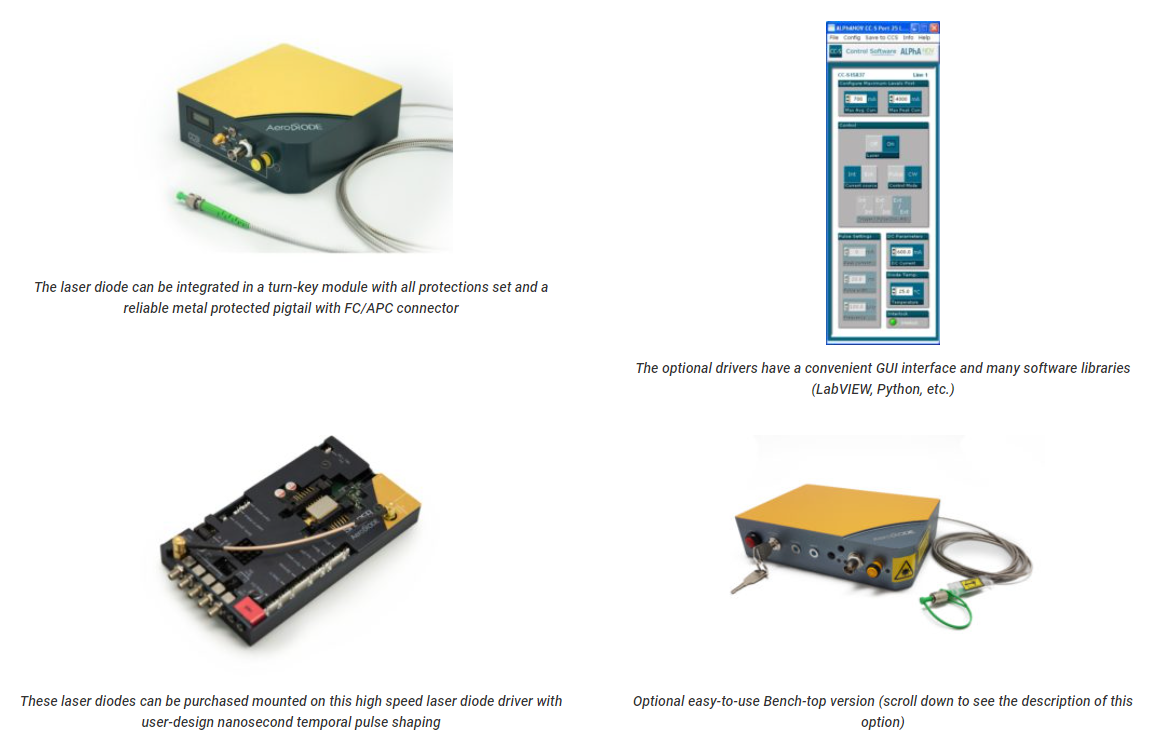

These fiber-coupled 1390 nm laser diodes are offered as stock items or associated with a low noise CW or Pulsed Laser Diode Driver. All 3 models are single frequency versions up to 40 mW. They are compatible with our high speed nanosecond pulsed drivers and this makes it an optimal solution for Telecommunication or 3D-sensing R&D.
These single mode 1390 nm laser diodes can reach high power in nanosecond pulse regime up to 40 mW. Most Turn-key diode + driver solutions are optimized from single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 1390 nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. It becomes easy to generate complex burst shapes.

見積りBOXへ入れる欲しい物リストに登録

メーカーWebサイトへ

価格	地域	代理店
代理店が登録されていません

1390nm Laser Diode 3 DFB models - CW or Pulse
