型番：1030nm fiber coupled laser diodes　メーカー：AeroDIODE　商品コード：L003566

1030nm Laser Diodes CW & Pulsed – Standard (Fabry-Perrot) or DFB

1030nm Laser Diodes CW & Pulsed – Standard (Fabry-Perrot) or DFB
1030nm Laser Diodes CW & Pulsed – Standard (Fabry-Perrot) or DFB
1030nm Laser Diodes CW & Pulsed – Standard (Fabry-Perrot) or DFB
1030nm Laser Diodes CW & Pulsed – Standard (Fabry-Perrot) or DFB
1030nm Laser Diodes CW & Pulsed – Standard (Fabry-Perrot) or DFB
1030nm Laser Diodes CW & Pulsed – Standard (Fabry-Perrot) or DFB
1030nm Laser Diodes CW & Pulsed – Standard (Fabry-Perrot) or DFB
1030nm Laser Diodes CW & Pulsed – Standard (Fabry-Perrot) or DFB
1030nm Laser Diodes CW & Pulsed – Standard (Fabry-Perrot) or DFB
1030nm Laser Diodes CW & Pulsed – Standard (Fabry-Perrot) or DFB
1030nm Laser Diodes CW & Pulsed – Standard (Fabry-Perrot) or DFB
1030nm Laser Diodes CW & Pulsed – Standard (Fabry-Perrot) or DFB
1030nm Laser Diodes CW & Pulsed – Standard (Fabry-Perrot) or DFB
1030nm Laser Diodes CW & Pulsed – Standard (Fabry-Perrot) or DFB

1030nm laser diodes データシート.pdf

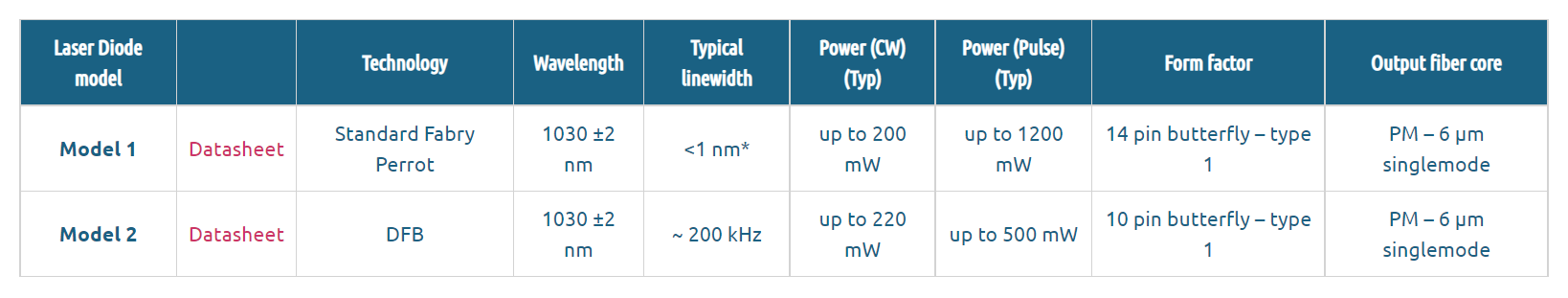

波長: 1025nm-1045nm
出力: 150mW-1200mW
電流: 350mA-2500mA
電圧: 1.6V-2.5V

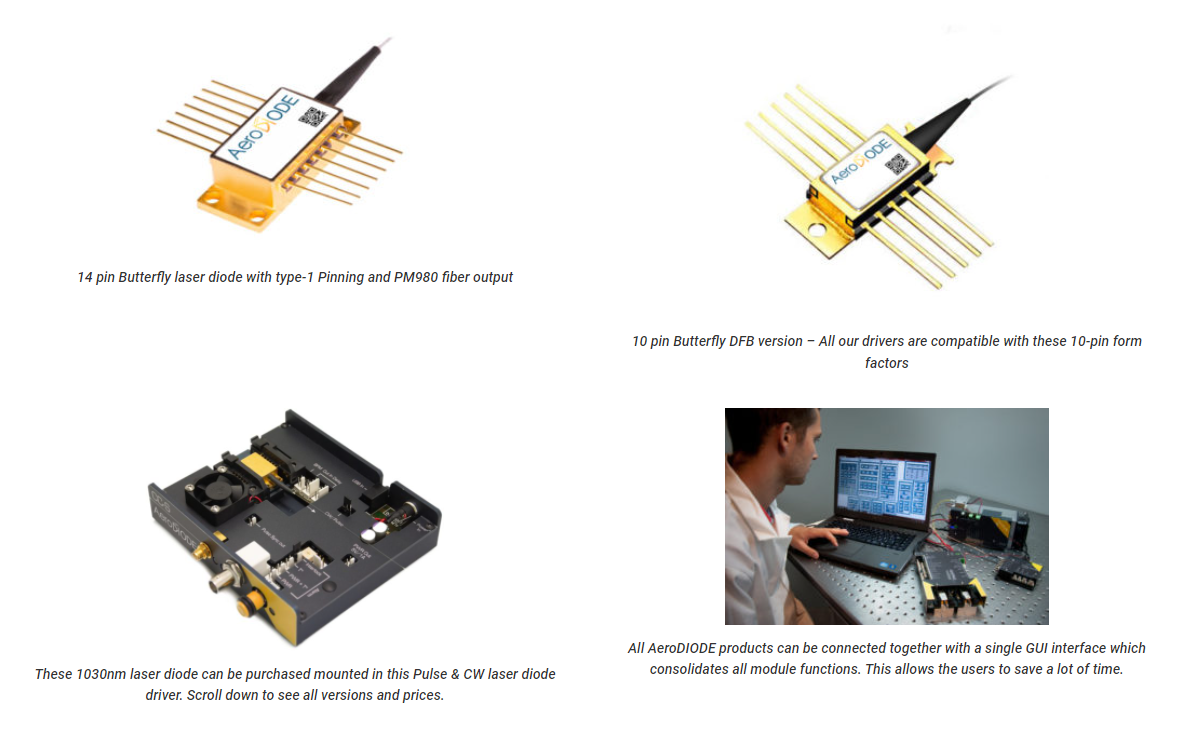

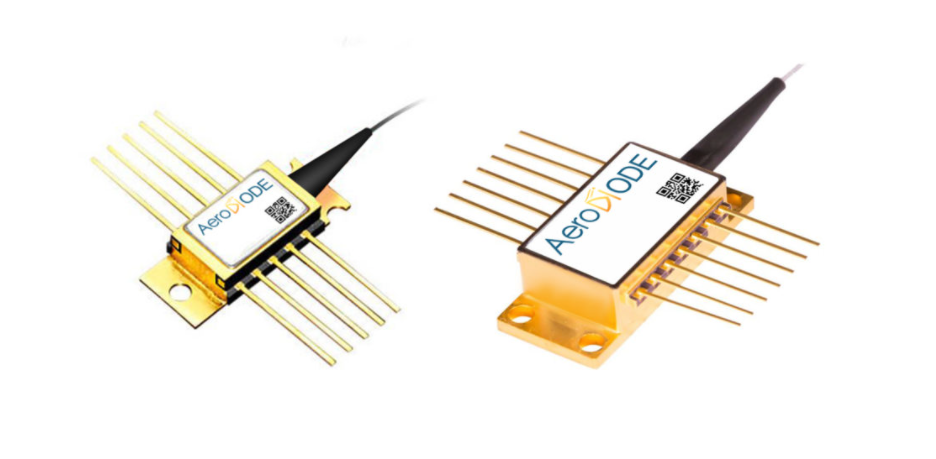

パッケージ: Butterfly package、10 pin Butterfly package
テクノロジー: Single mode Fabry Perrot、DFB

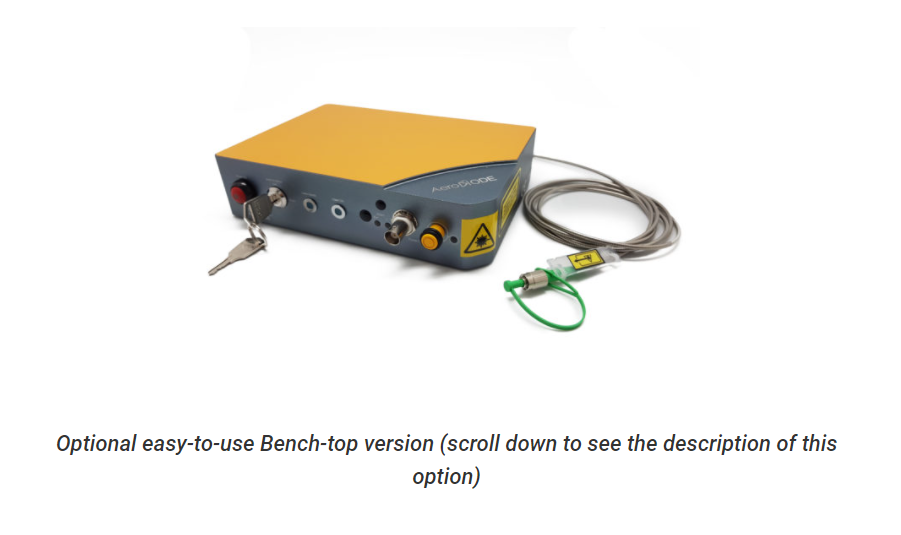

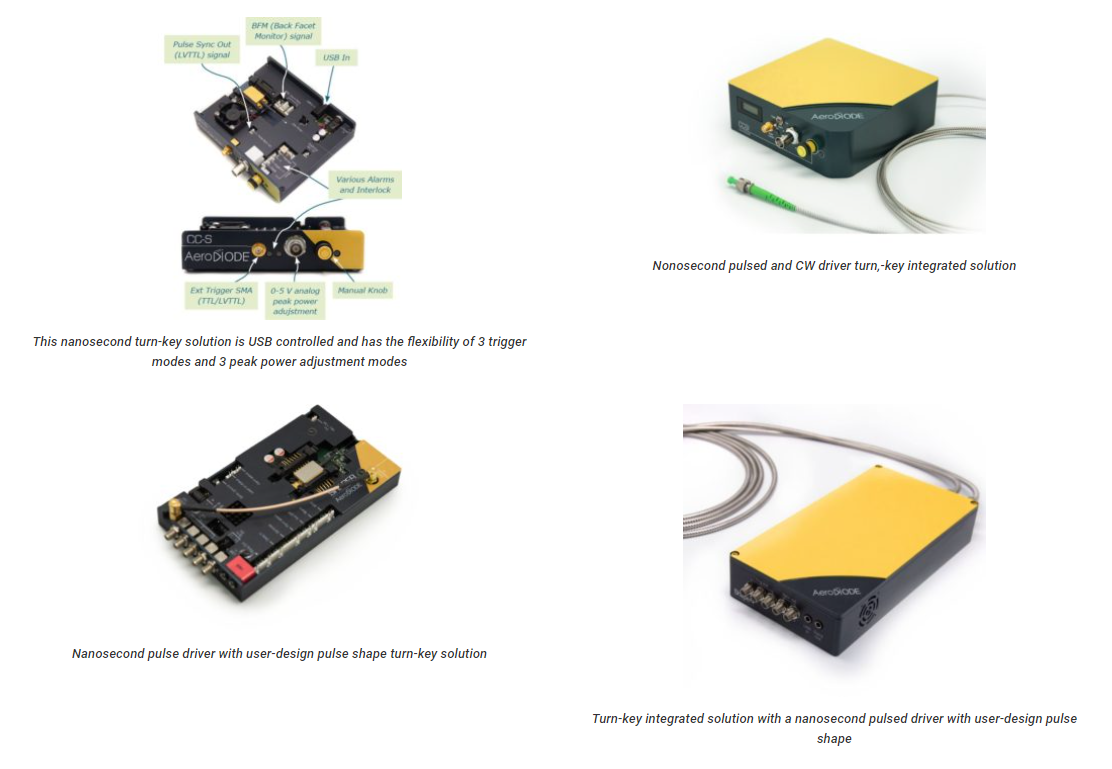

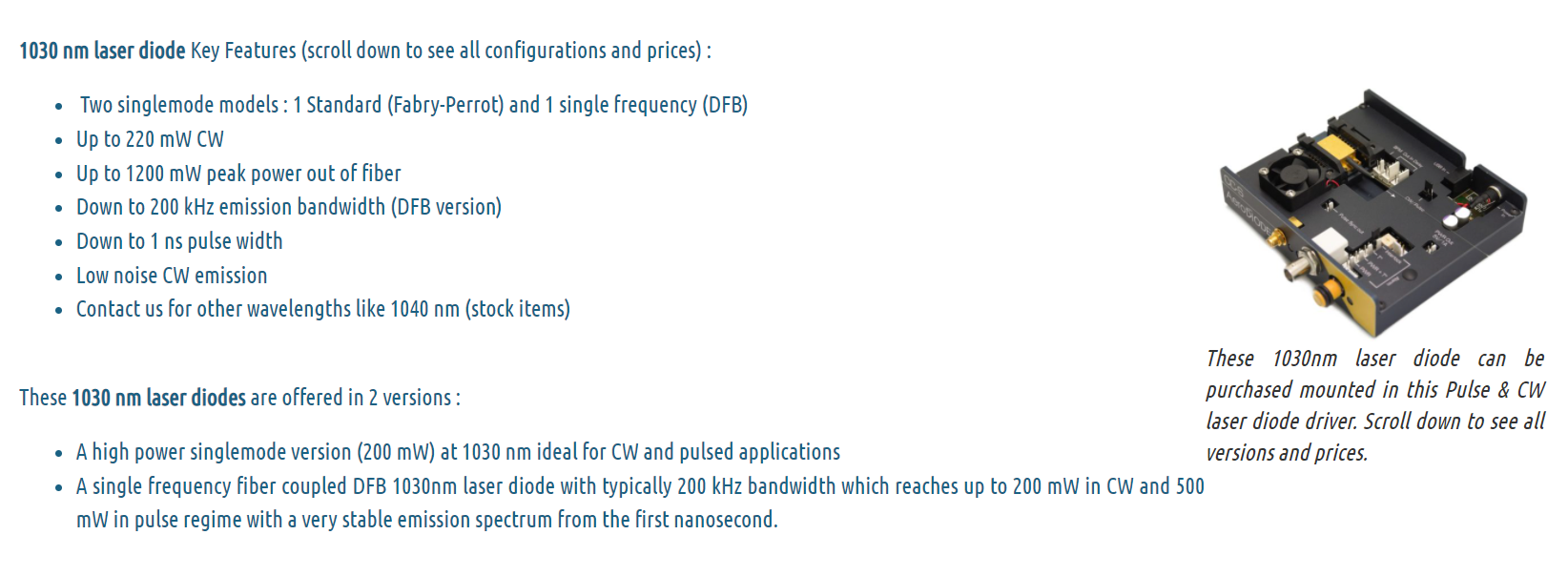

These fiber coupled 1030 nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our low noise CW or high speed nanosecond pulsed drivers. Turn-key laser modules with TEC controller are also offered in an open or integrated version.

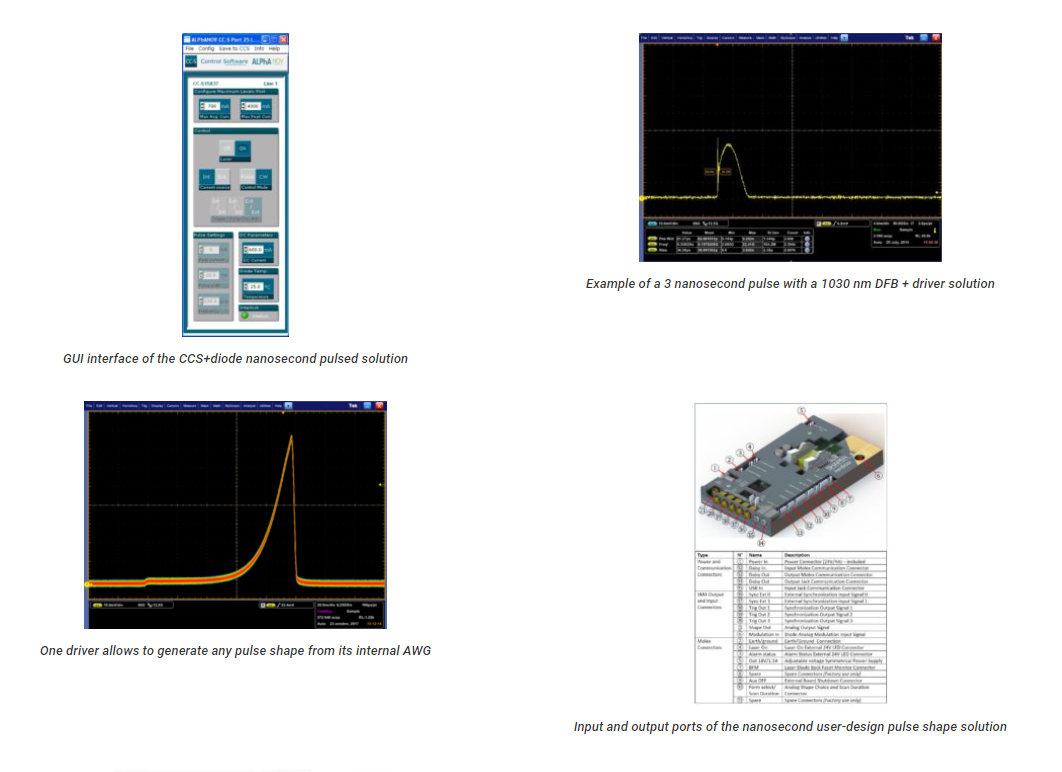

The 1030 nm laser diode can reach high power in nanosecond pulse regime up to 1.2 W. Most Turn-key diode+driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. 1030 nm laser diode precision pulses are generated internally by an on-board pulse generator, or on-demand from an external TTL signal.
