型番：915nm fiber coupled laser diodes　メーカー：AeroDIODE　商品コード：L003562

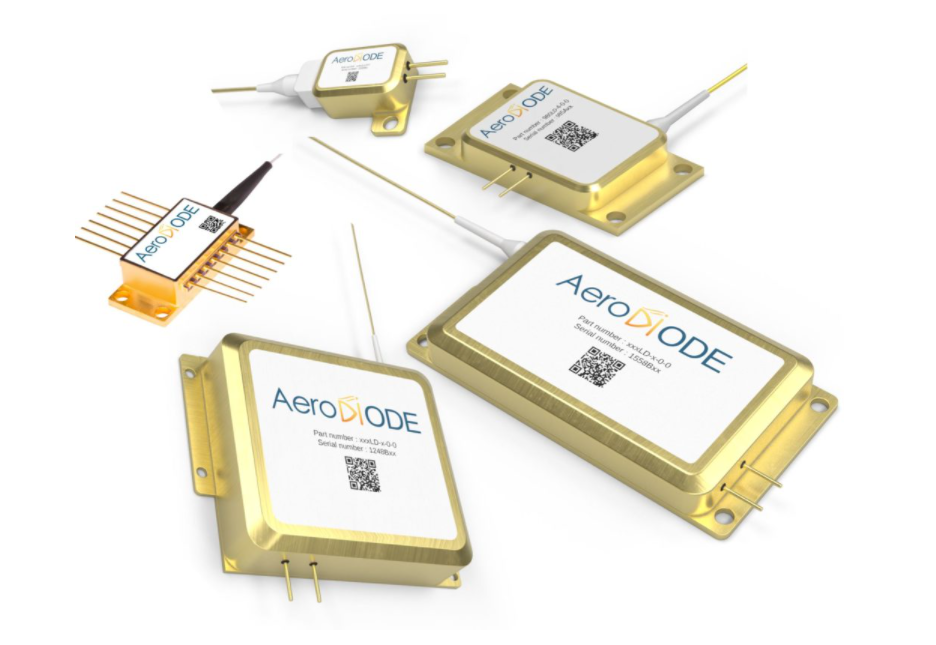

915nm Fiber Coupled Laser Diodes

915nm Fiber Coupled Laser Diodes
915nm Fiber Coupled Laser Diodes
915nm Fiber Coupled Laser Diodes
915nm Fiber Coupled Laser Diodes
915nm Fiber Coupled Laser Diodes
915nm Fiber Coupled Laser Diodes
915nm Fiber Coupled Laser Diodes
915nm Fiber Coupled Laser Diodes
915nm Fiber Coupled Laser Diodes
915nm Fiber Coupled Laser Diodes
915nm Fiber Coupled Laser Diodes
915nm Fiber Coupled Laser Diodes

915nm laser diodes データシート.pdf

波長: 905nm-925nm
出力: 250mW-300W
電流: 650mA-20A
電圧: 1.6V-34V
パッケージ: Butterfly package

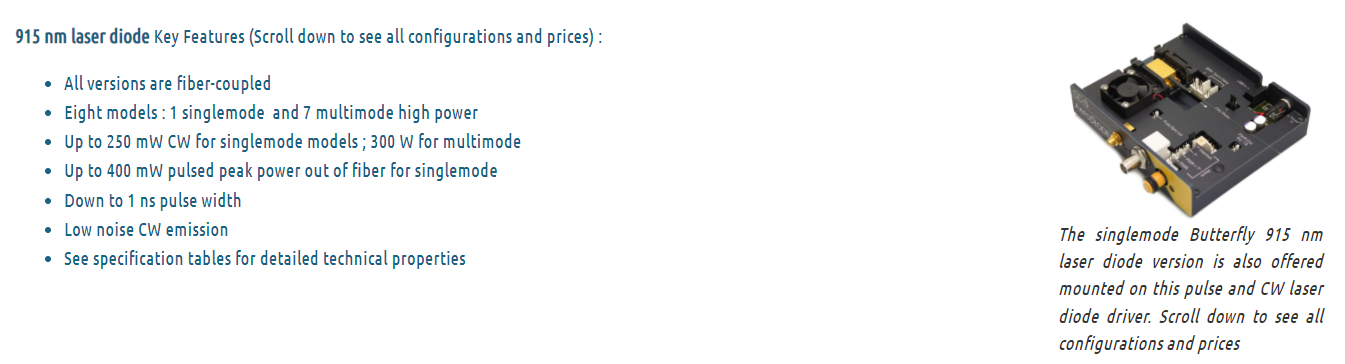

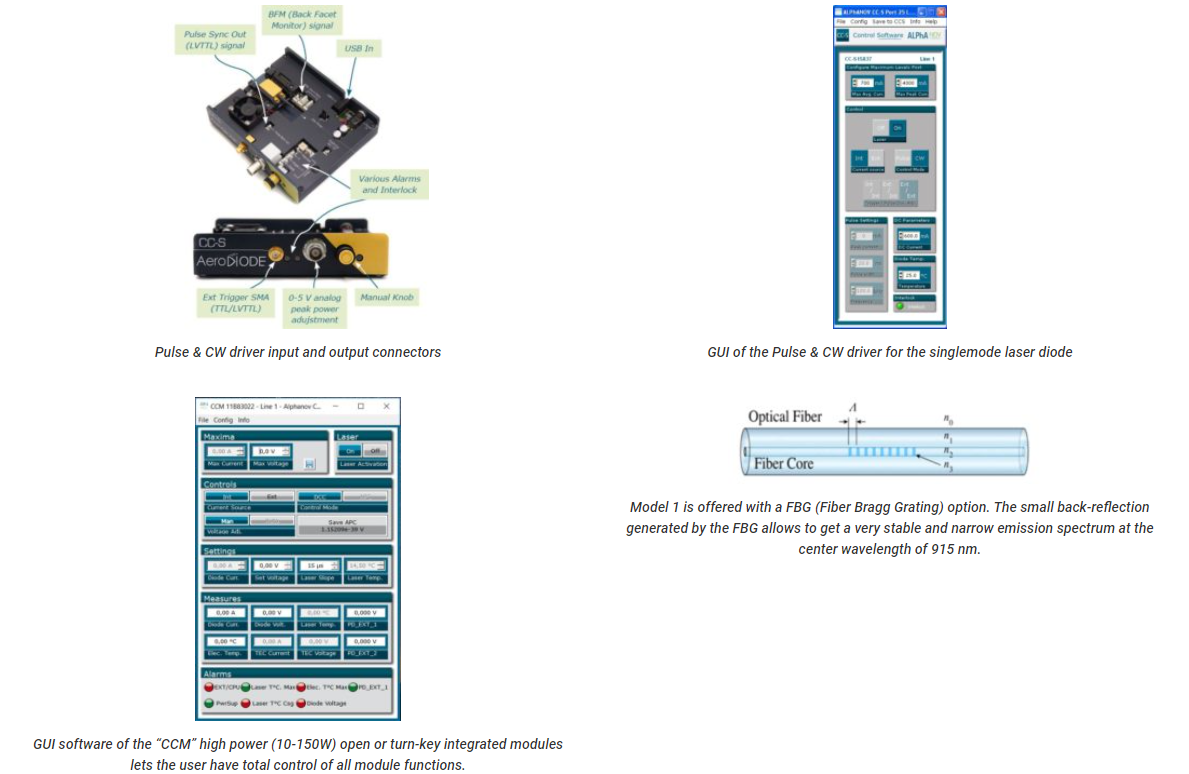

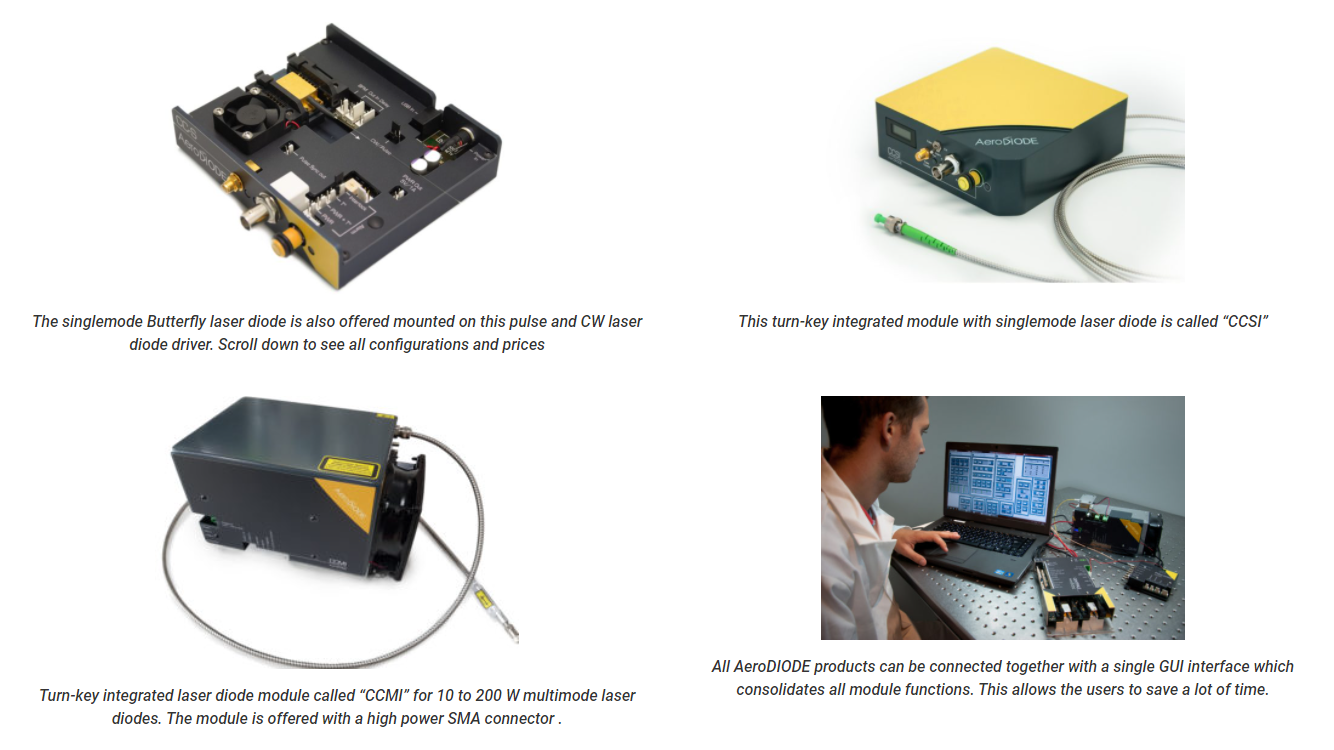

These fiber-coupled 915 nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our high speed nanosecond pulsed drivers or high power CW drivers with air cooling for the multimode high power laser diode versions.

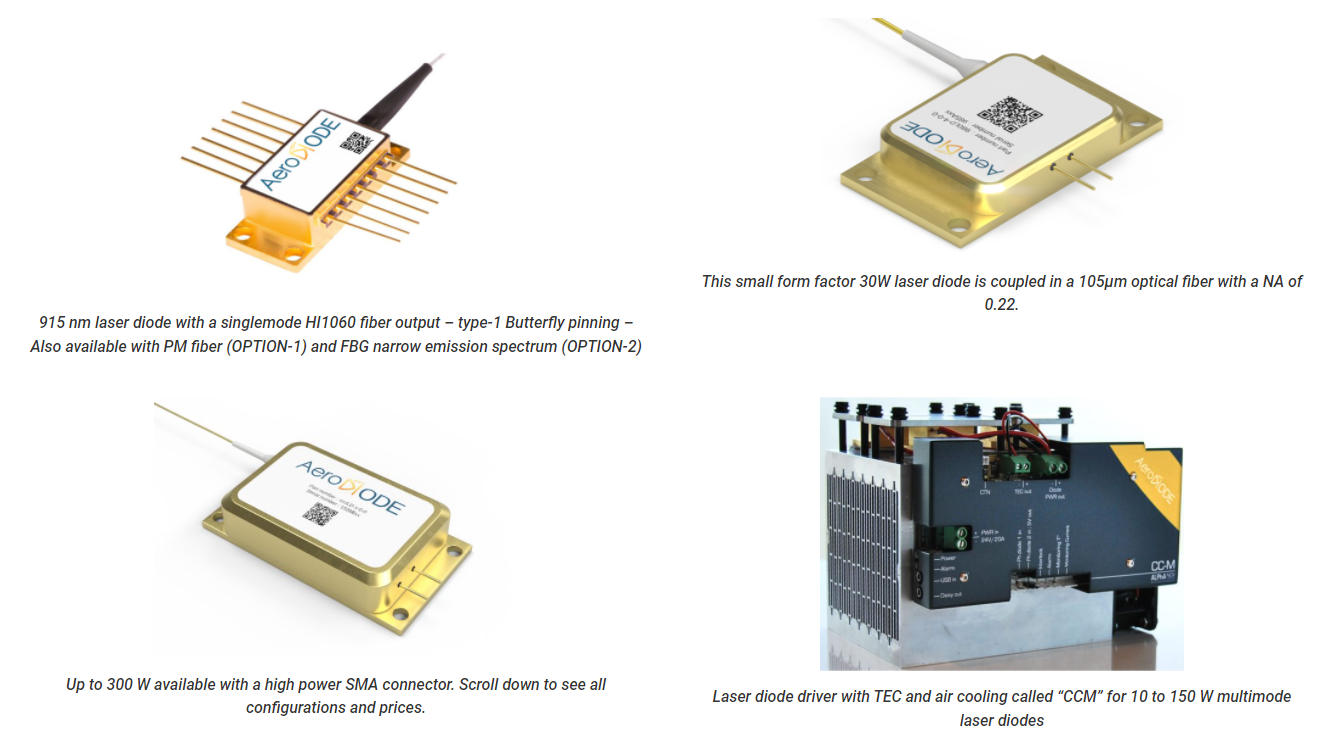

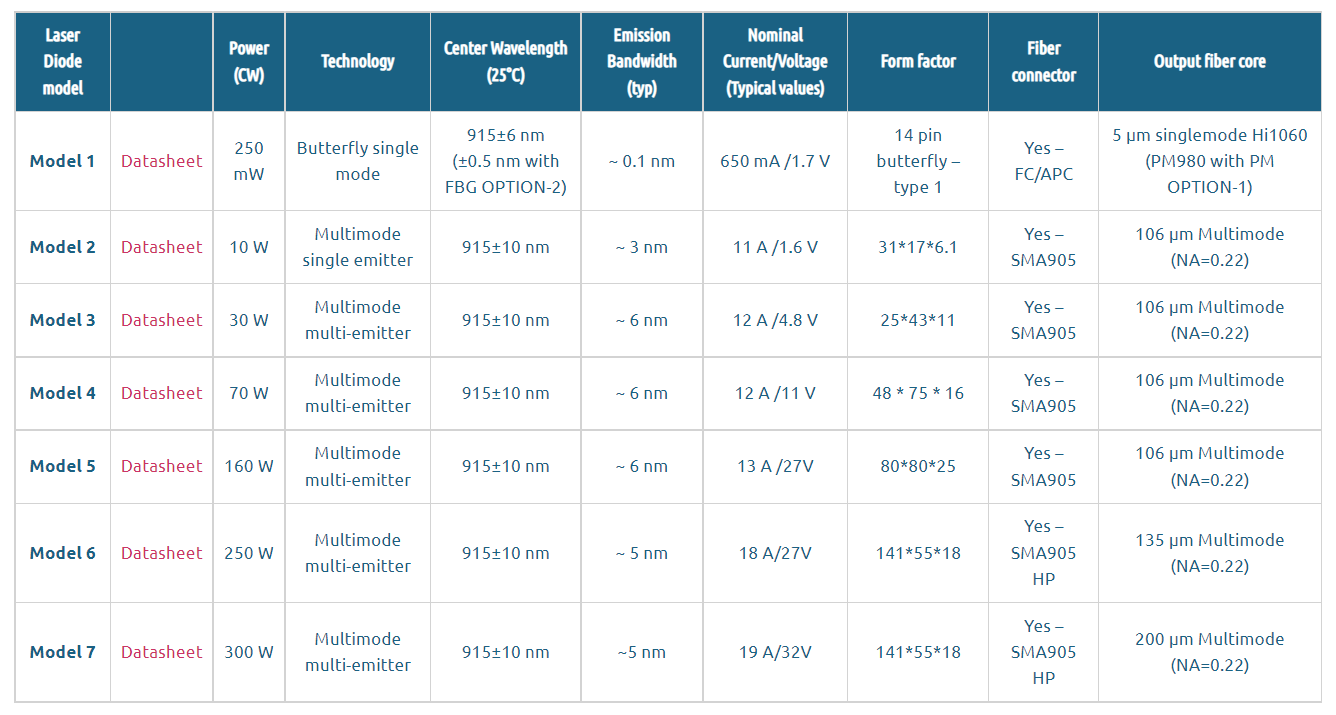

The single mode 915 nm laser diodes can reach high power in nanosecond pulse regime up to 400 mW. Most Turn-key diode + driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 915 nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. 7 multimode versions are offered for CW emission up to 300 W in a 200 µm core multimode fiber or up to 250 W in a 135 µm core fiber or 160 W in a 105 µm core fiber.
