型番：　メーカー：Teem Photonics　商品コード：L002649

1064 nm Nd:YAG Picosecond Laser, 7µJ

1064 nm Nd:YAG Picosecond Laser, 7µJ
1064 nm Nd:YAG Picosecond Laser, 7µJ
1064 nm Nd:YAG Picosecond Laser, 7µJ
1064 nm Nd:YAG Picosecond Laser, 7µJ
1064 nm Nd:YAG Picosecond Laser, 7µJ
1064 nm Nd:YAG Picosecond Laser, 7µJ
1064 nm Nd:YAG Picosecond Laser, 7µJ
1064 nm Nd:YAG Picosecond Laser, 7µJ
1064 nm Nd:YAG Picosecond Laser, 7µJ
1064 nm Nd:YAG Picosecond Laser, 7µJ
1064 nm Nd:YAG Picosecond Laser, 7µJ
1064 nm Nd:YAG Picosecond Laser, 7µJ

波長: 1064nm-1064nm
テクノロジー: Nd:YAG Laser

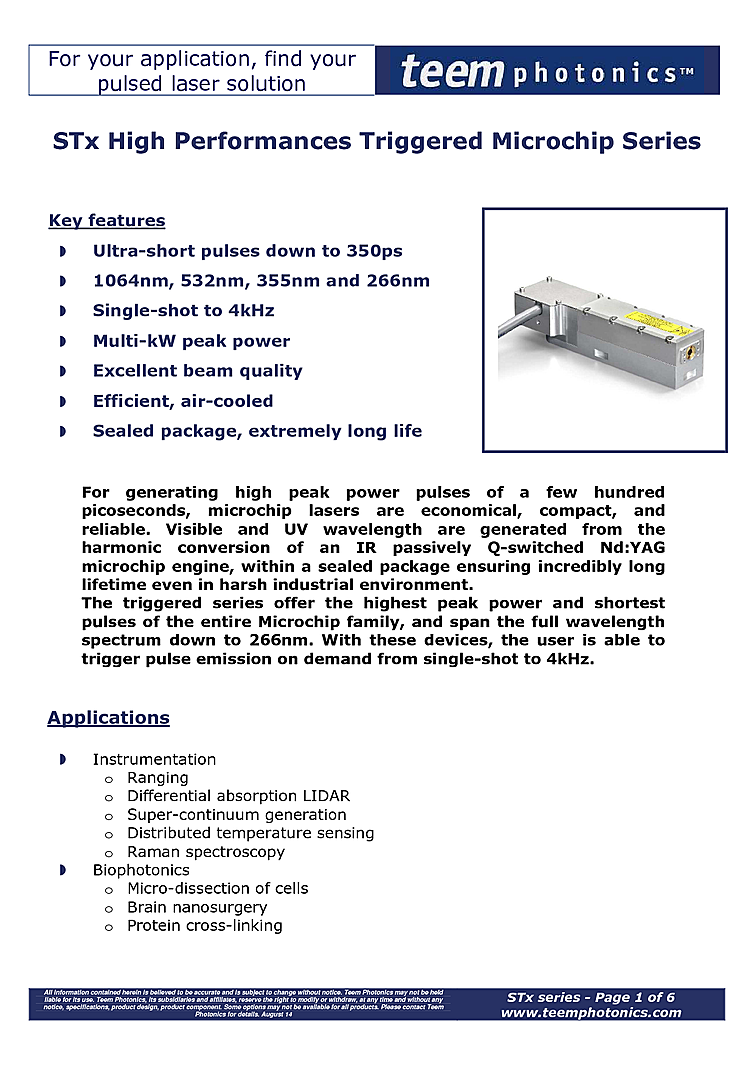

Nd:YAG laser from teem photonics. The Picosecond Laser was designed for applications in Ranging, Differential absorption LIDAR, Super-continuum generation, distributed temperature sensing, Raman spectroscopy and biophotonics. Maximum repetition rate for the picosecond laser is 4kHz with a constant pulse width less then 0.7ns. Long term power stability is +/-3% over 6 hours and short term stability is +/-1% (over 1 minute). Nd:YAG laser output energy up to 7µJ with a wavelength of 1064nm.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ オーテックス株式会社
