型番：ADL-65055GB4 メーカー：Arima Lasers Corporation 商品コード：L000354

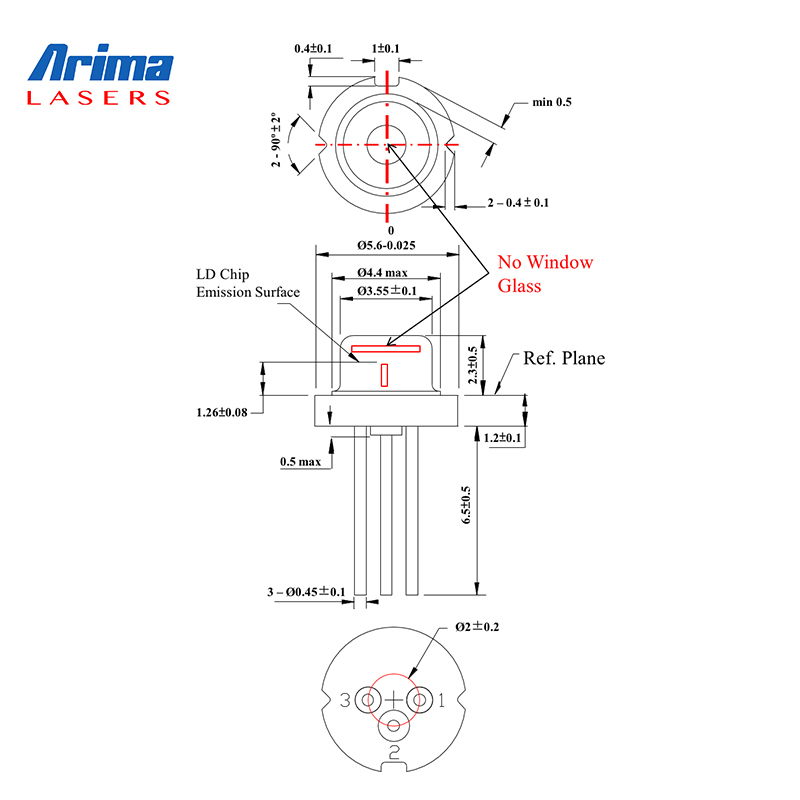

650nm / 5mW AlGaInP APC Visible Laser Diode
波長: 645m-660nm
出力: 5mW-7mW
電流: 26mA-35mA
電圧: 2.5V-6.0V
< FEATURES >
650nm 5mW 50°C high reliable operation
Saving space and cost of laser module
Voltage driven LD, easy to use
Highly stable laser output power
Strong reverse bias protection
High ESD sustainability voltage
Stable output power vs. supply voltage from 2.5V to 6.0V
Light-fuse: automatic shutdown when output power over limit
< APPLICATION >
Industry: laser level, illumination, meter, scanner, detector
Consumer: point light, sweeper, game lighting
Health: special wavelength light source
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | 株式会社彩世 | ||
