型番：VPSL-0658-050-x-5-G メーカー：Blue Sky Research 商品コード：L003349
658nm / 50mW VPS Laser Diode [TO-can]
波長: 653nm-667nm
出力: 50mW-60mW
電流: 90mA-120mA
電圧: 2.6V-3.0V

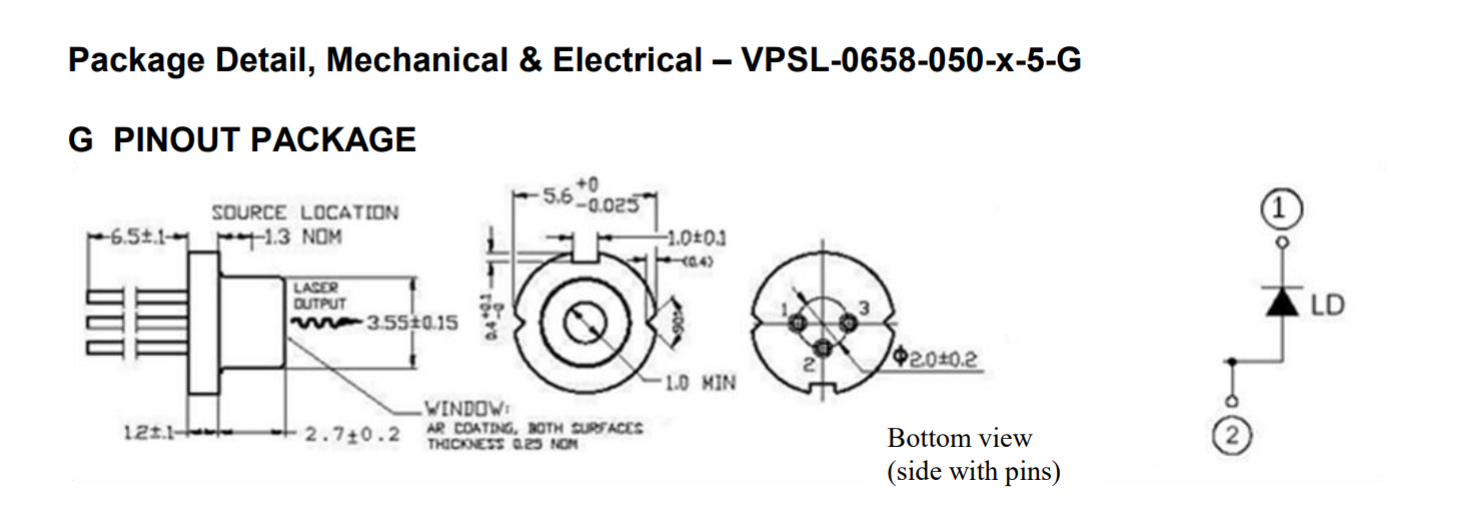

パッケージ: TO-can
拡がり角: 6, 9, 12 deg
< Description >
The VPSL-0658-050-x-5-G is a 0.65 µm band, AlGaAlP laser diode with a quantum well structure. It is suitable as a light source for large capacity optical disc memories, such as DVDRAM, and various other types of optical equipment. Combined with an integrated, internal, beam correcting optic and encased in a hermetic sealed package, this is a high-performance, highly reliable, and long life laser diode.
< Features >
Diffraction limited wavefront
50mW CW optical power, 50mW pulsed (50% duty, pulse < 1μs)
Standard 5.6 mm (TO-18) form factor
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
|
代理店が登録されていません |
|||
