型番：VPSL-0650-007-X-5-B　メーカー：Blue Sky Research　商品コード：L003358

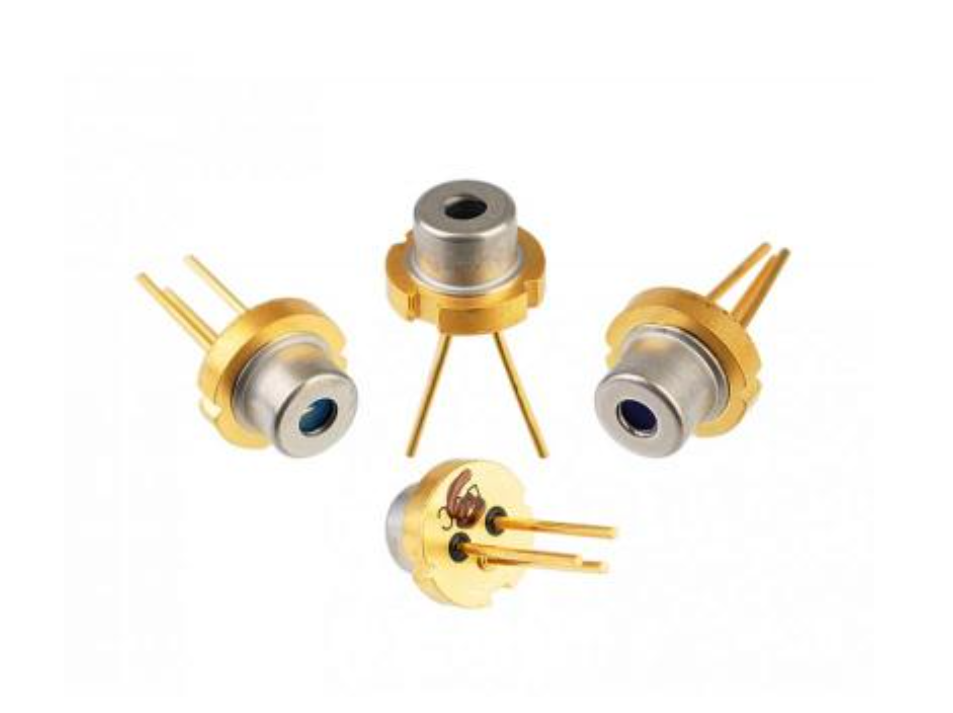

650nm / 7mW　VPS Laser Diode [TO-can]

650nm / 7mW　VPS Laser Diode [TO-can]
650nm / 7mW　VPS Laser Diode [TO-can]
650nm / 7mW　VPS Laser Diode [TO-can]
650nm / 7mW　VPS Laser Diode [TO-can]

VPSL-0650-007-X-5-B データシート.pdf

波長: 645nm-660nm
出力: 7mW-10mW
電流: 27mA-35mA
電圧: 2.2V-2.5V

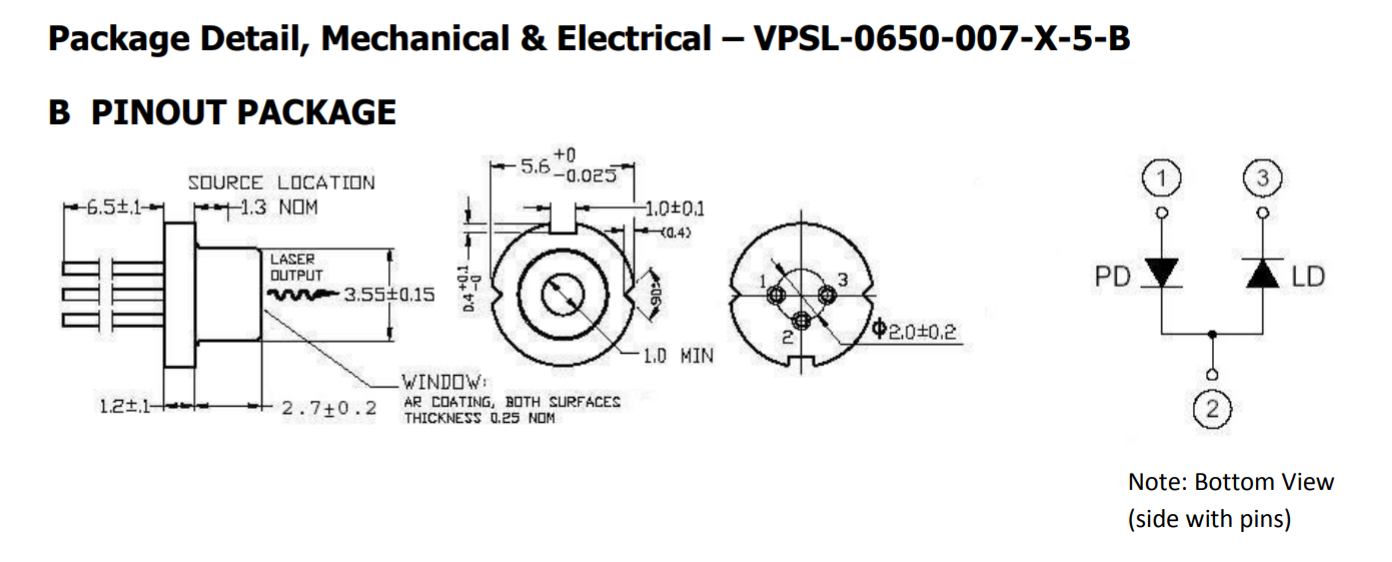

パッケージ: TO-can
拡がり角: 6, 9, 12 deg

< Description >
The VPSL-0650-007-X-5-B is a 0.60 µm band, AlGaInP index guided, visible laser diode. Applications include; laser pointers, bar code readers, and DVD players. Combined with an integrated, internal, beam correcting optic and encased in a hermetic sealed package, this is a high-performance, highly reliable, and long life laser diode. It is available with one pin-out configuration.

< Features >
Integrated monitor photodiode
650nm visible light @ 7mW w/Diffraction limited wavefront
7mW CW optical power
Extended operating temperature range, -10 to +70 ℃
Standard 5.6 mm form facto
