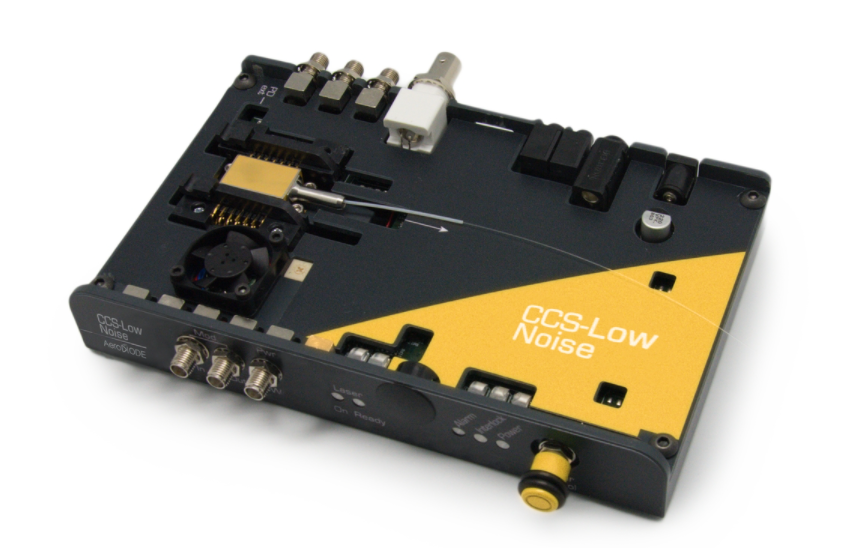

メーカー希望小売価格: CCS-LN (CCS-Low Noise) ¥684,589 電流: -1500mA
電圧: -24V

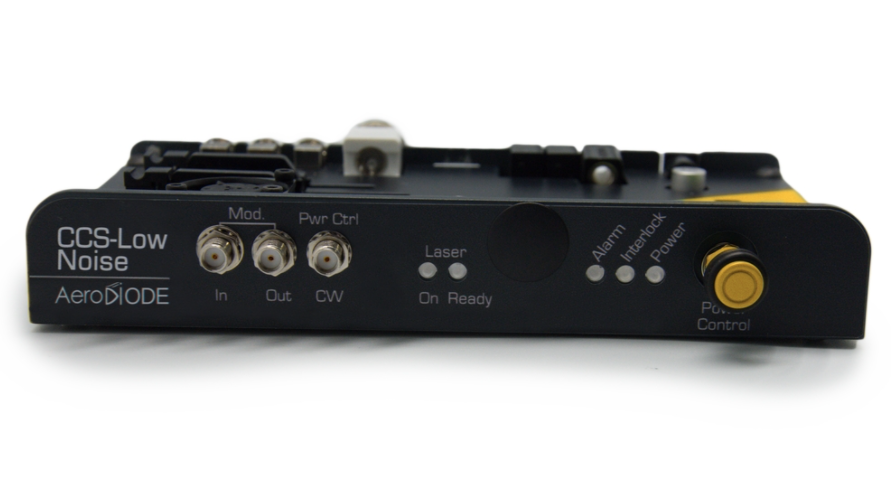

This low noise laser diode driever is most useful only when the level of noise is a major constraint. Its noise level is comparable with industry lowest noise battery-based drivers. This makes it the most compact low noise laser diode driver with such performances.

This low noise laser diode driver with integranted TEC controller delivers current which can be modulated internally or externally. It is compatible with any butterfly pinning (Type 1, Type 2, Type 2 Bias-T etc.). It is USB-controlled and contains several libraries for system integration (LabVIEW VIs, DLLs, Hexa, Python etc.).

< Low noise laser diode driver Key Features >
・Available for butterfly laser diodes and other form factors (Type 1 or Type 2 pinning)

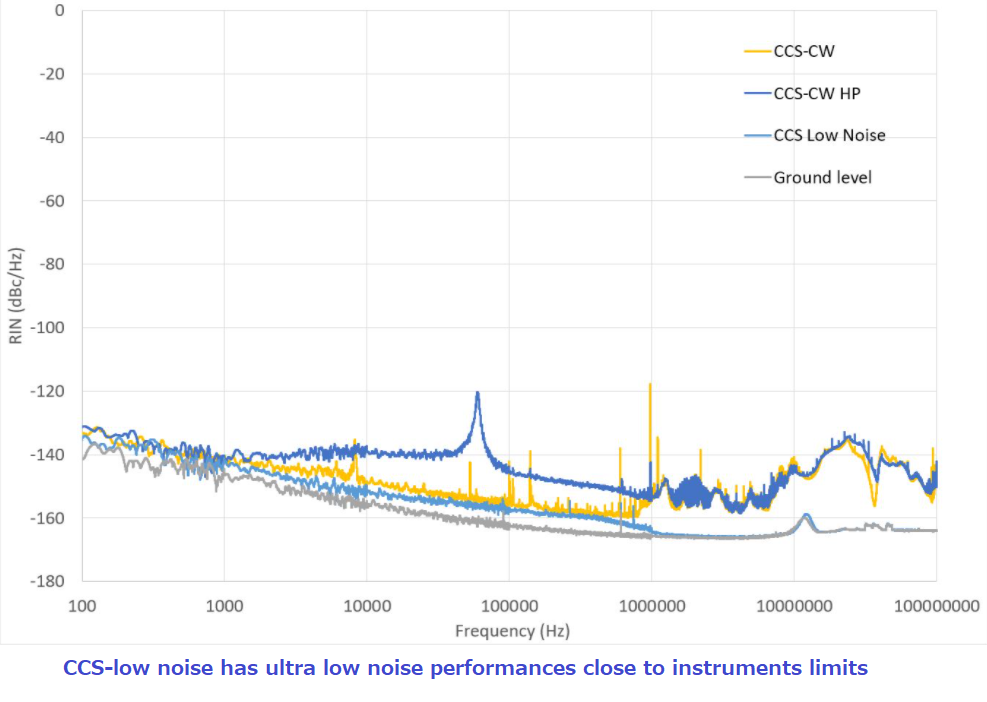

・Noise level comparable with industry lowest noise battery-based drivers
・It includes an integrated TEC controller.
・A special thermal interface is included which do not require any thermal grease.
・Output Current : 0.00 mA – 1500.00 mA (special 2500 mA version available – contact us)
・Current set-point resolution (@ 100 mA set-point): 0.025 mA
・Temperature stability (typ) : <0.001°C

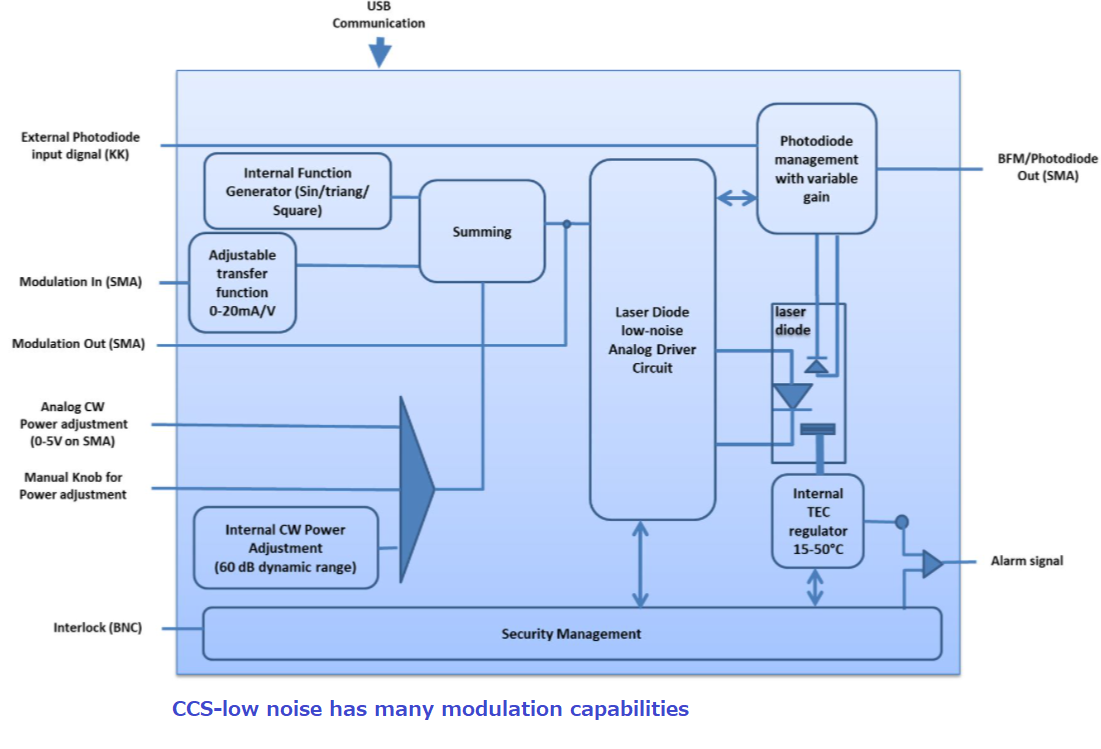

・Internal and external modulation up to 100 kHz (500 kHz prov.)
・Output Voltage Maximum: 0 – 24 V

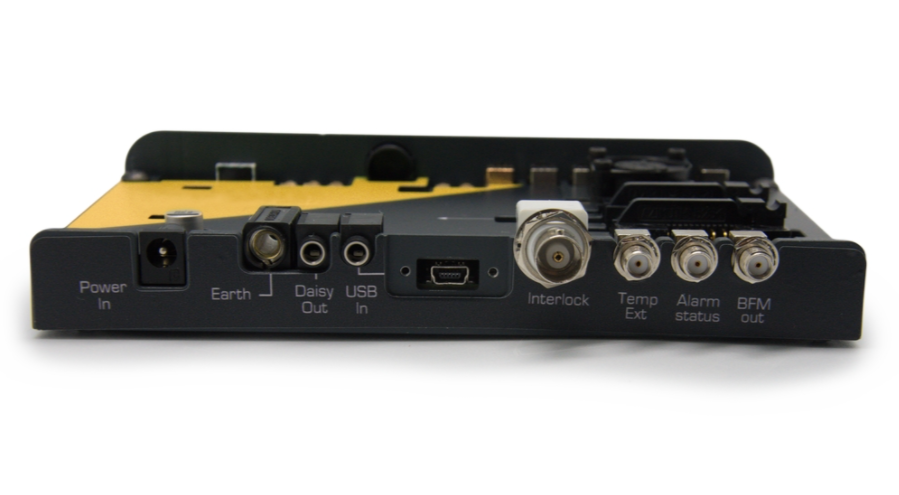

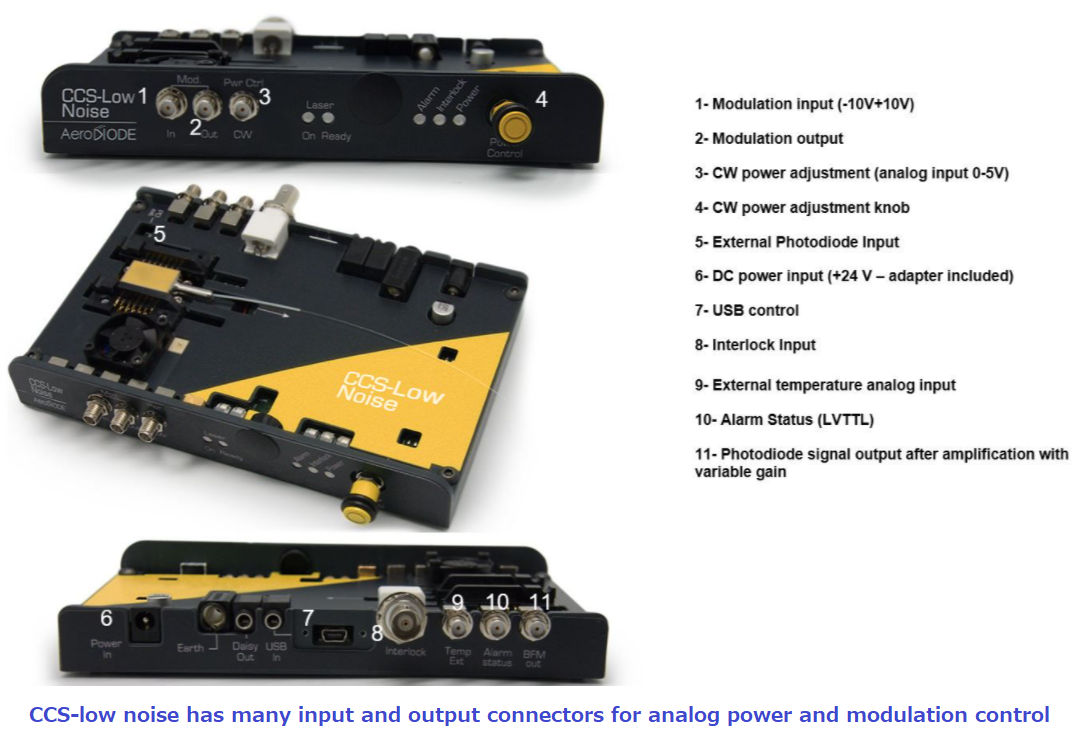

・USB, manual & analog (0 – 5 V) power adjustment

Applications of this low noise laser diode driver includes fiber laser seeding, gas sensing, TDLAS, cold atoms R&D etc. The GUI software lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa).
