型番:ZLA000218/229/230/233/234/237/238/239/240/243/479/481/485/486/487/488/507/509/511/601/742/743/744/745/772/781/787/788/791/794/796/800/1101/1102/1103/1104/1105/1106/1107/1108/1109/1110/1111/1687/1688/1689 メーカー:Focuslight Technologies Inc. 商品コード:L003769


材質: Fused Silica
コーティング: なし

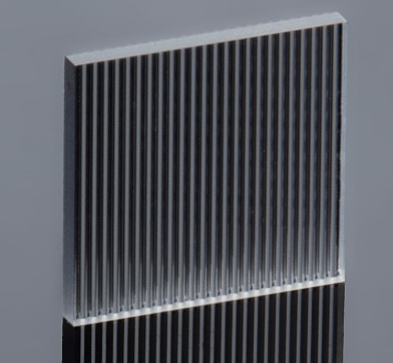

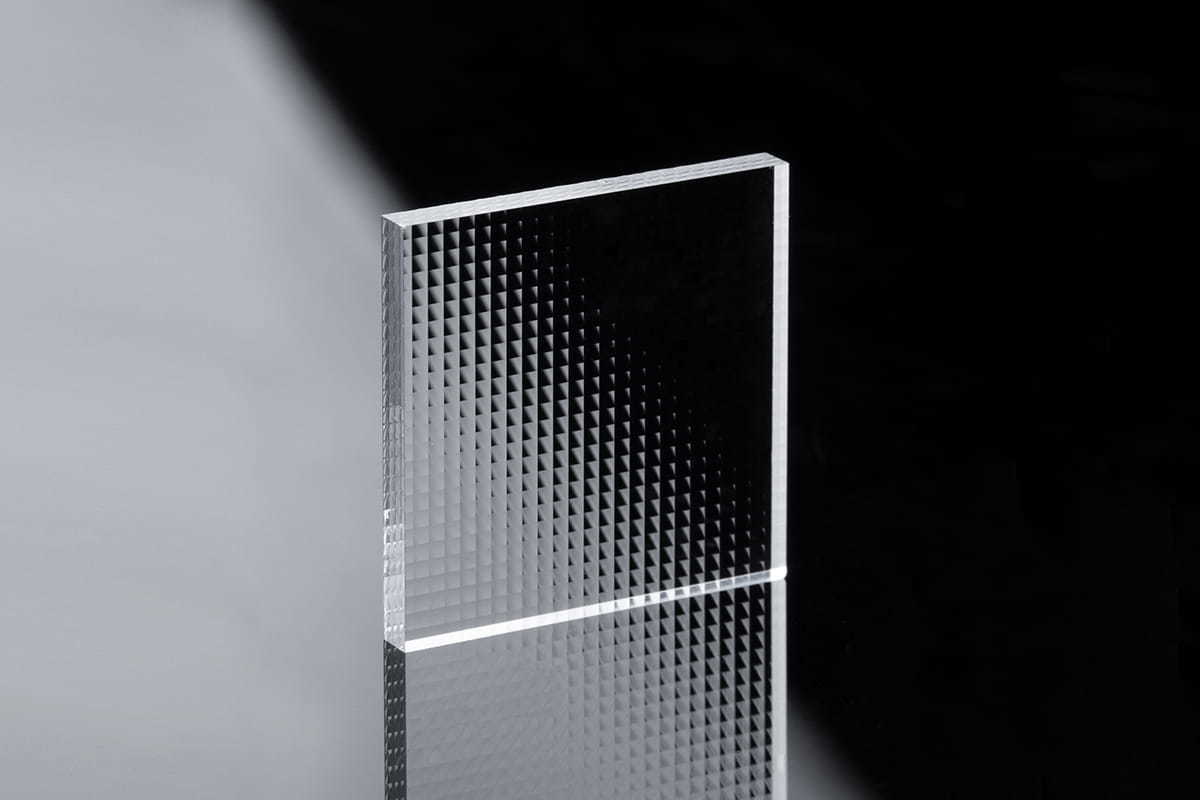

< Homogenizers >
・Homogenizers can handle a wide range of field geometries and beam shapes - top hat, rectangular, square and lines - typical full angle from 0.20 to 11.21 deg
・Homogeneity up to the technical limits (up to 1% non-uniformity)
・High NA, high fill factor and retention of polarization
・Optical efficiency up to 90 % help to cut the cost of expensive laser energy
・Manufactured from high-quality materials, e.g., fused silica, CaF2, suitable for many different laser sources (e.g., excimer laser, solid-state laser, diode laser)
・Customized freeform surfaces with highest precision on different wafer sizes (up to 300 mm)

< Applications >
・Semiconductor Manufacturing Processes
・Plastic Welding


価格 地域 代理店
要問い合わせ 株式会社ハナムラオプティクス
要問い合わせ 京都府 株式会社光響
