波長: 380nm-2100nm

FIBER COUPLED AO DEVICESはこちら
OEM & LAB VERSION RF DRIVERSはこちら

Brimrose Acousto-Optic Deflectors (AODs) combined with RF drivers are specially designed for high-speed scanning applications such as laser recording, optical scanning, signal processing, etc.

The AOD changes the diffraction angle of an input laser beam and its angular position is linearly proportional to the RF frequency, so that the higher the frequency, the larger the diffracted angle.

< KEY FEATURES >
1-D and 2-D Deflection Systems
Compact Integrated Design
Wide Spectral Wavelength Range
Uniform Scan Intensity
Low Power Consumption
Linear Polarization
Fast Switching Speed
High Resolution and Bandwidth
High Throughput
Custom Configurations Available

< APPLICATIONS >
Photolithography
Continuous Laser Beam Deflection
Vector (Random) Scanning
Signal Processing
Graphic and Laser Printing
Optical Inspection and Digital Imaging
OEM Designs

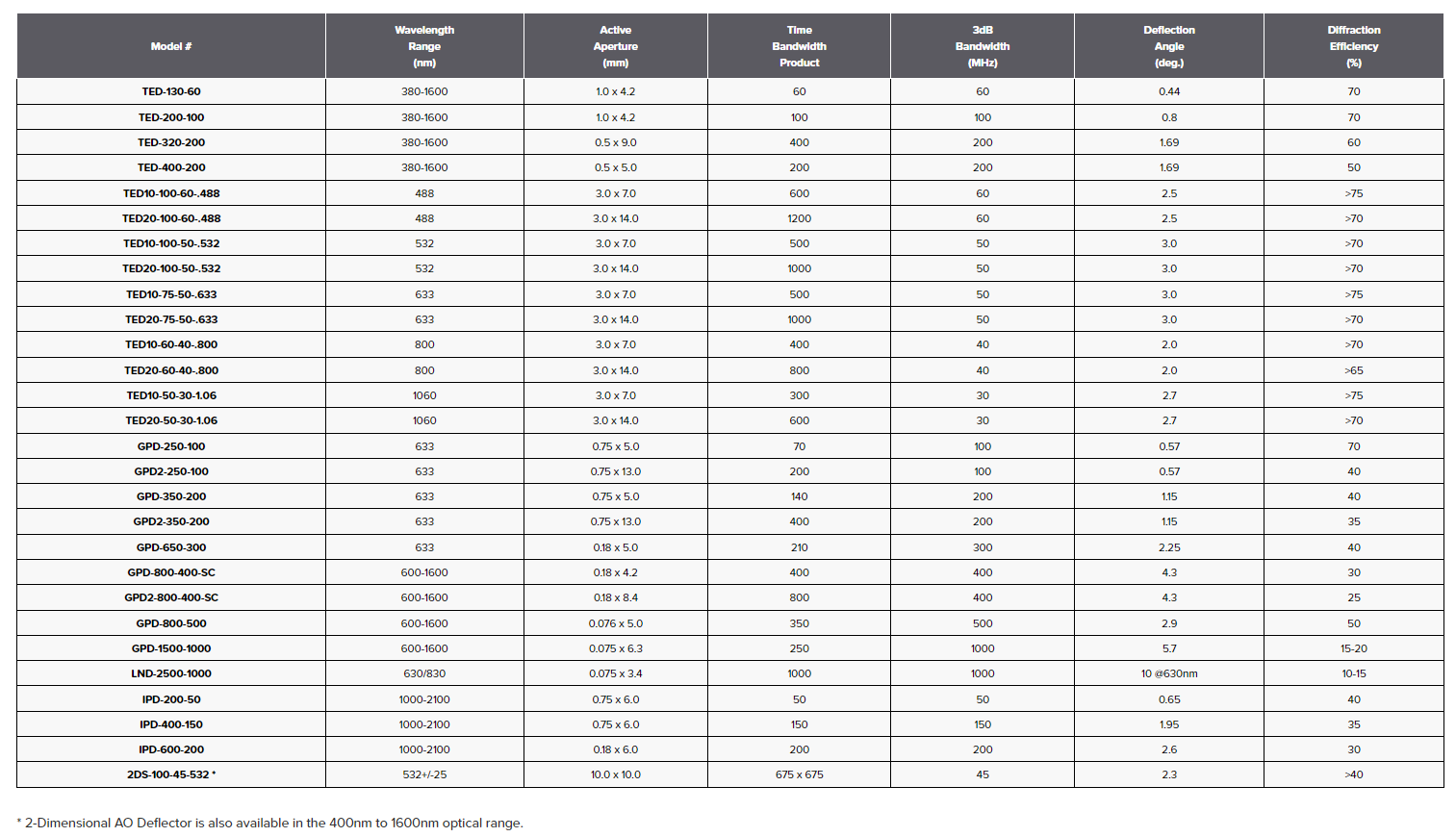

< Model# >
TED-130-60/-200-100/-320-200/-400-200
TED10-100-60-.488/-100-50-.532/-75-50-.633/-60-40-.800/-50-30-1.06
TED20-100-60-.488/-100-50-.532/-75-50-.633/-60-40-.800/-50-30-1.06
GPD-250-100/-350-200/-650-300/-800-400-SC/-800-500/-1500-1000
GPD2-250-100/-350-200/-800-400-SC
LND-2500-1000
IPD-200-50/-400-150/-600-200
2DS-100-45-532*

* 2-Dimensional AO Deflector is also available in the 400nm to 1600nm optical range.
The models shown above represent some examples of our fabrication capabilities. In addition, other wavelengths (UV-IR), frequencies or configurations are available.
