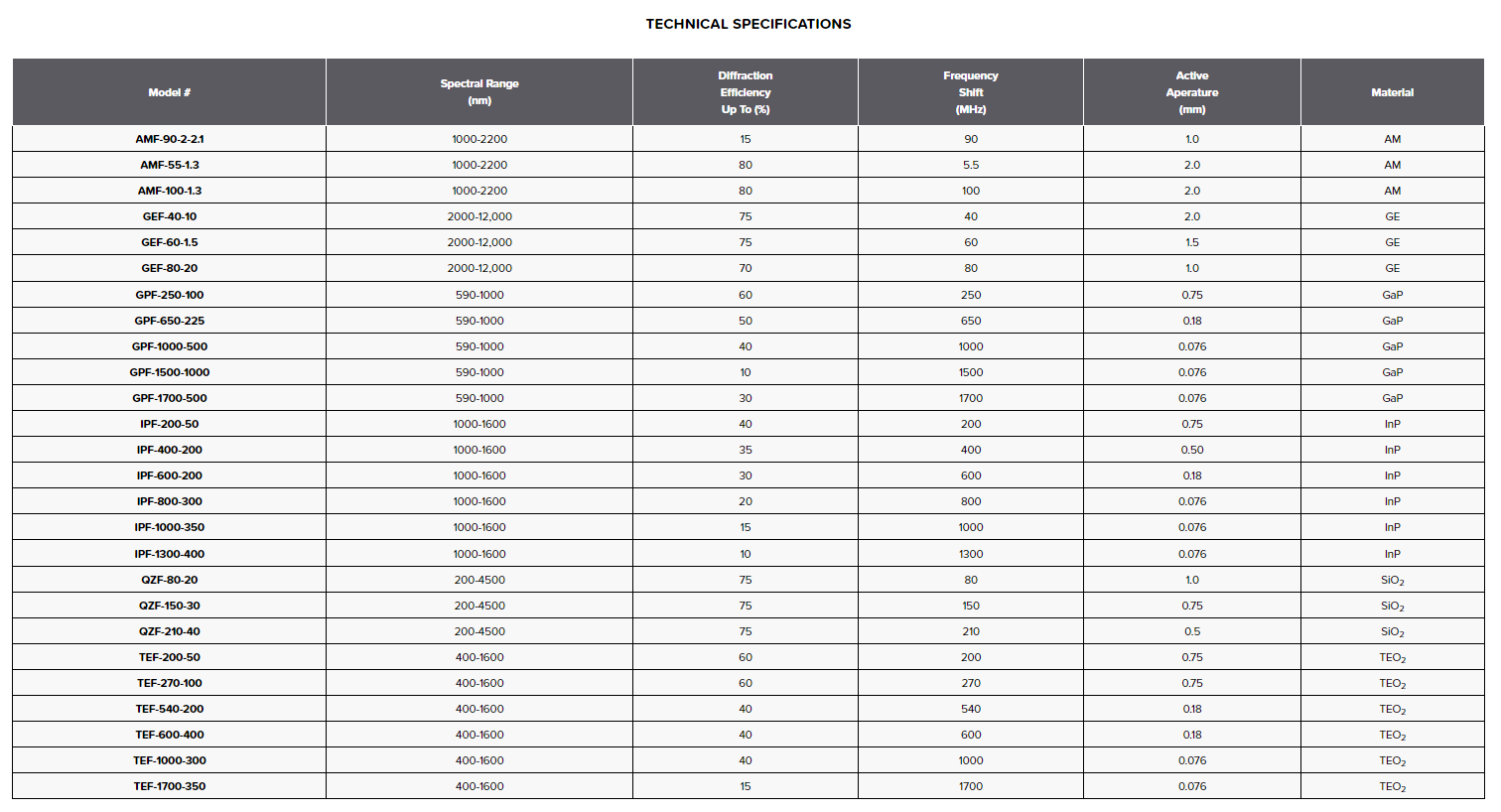

型番：AMF-90-2-2.1/-55-1.3/-100-1.3、GEF-40-10/-60-1.5/-80-20、GPF-250-100/-650-225/-1000-500/-1500-1000/-1700-500、IPF-200-50/-400-200/-600-200/-800-300/-1000-350/-1300-400、QZF-80-20/-150-30/-210-40、TEF-200-50/-270-100/-540-200/-600-400/-1000-300/-1700-350　メーカー：Brimrose Corporation of America　商品コード：L003287

Free Space Acousto-Optic Frequency Shifters (AOFS)

AO_Frequency_Shifter　データシート.pdf

波長: 200nm-12000nm

FIBER COUPLED AO DEVICESはこちら
OEM & LAB VERSION RF DRIVERSはこちら

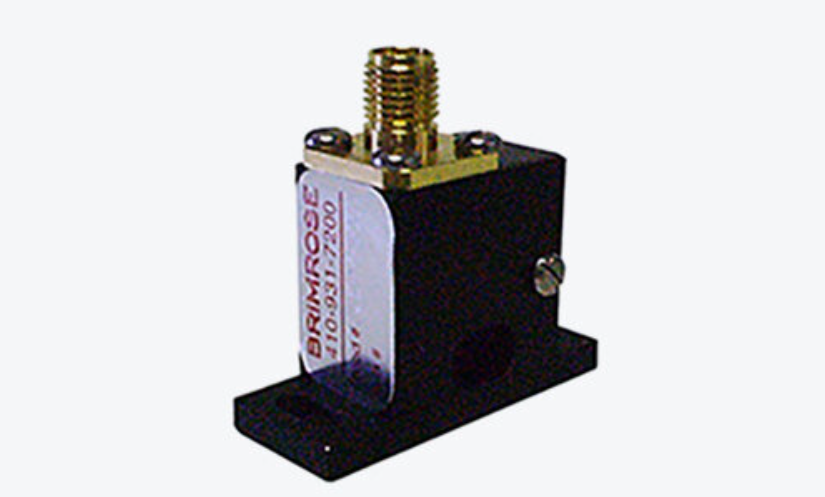

The Brimrose Free Space Acousto-Optic Frequency Shifter (AOFS) with RF driver is used to modify the frequency of the optical beam. Due to a Doppler shift, the frequency of the diffracted first order optical beam in the AO modulator or AO frequency shifter is shifted in frequency (wavelength) by the acoustic carrier frequency (wavelength).

If the incident acoustic wave is introduced in the direction of the incident optical wave, the laser frequency shifts towards the higher side. If the incident acoustic wave is introduced in the opposite direction of the incident optical wave, the laser shifts toward the lower frequency side.

< KEY FEATURES >
Compact Integrated Design
Wide Spectral Wavelength Range
Low RF Power Consumption
Fast Switching Speed
High Bandwidth
High Diffraction Efficiency
Good Temperature Stability

< APPLICATIONS >
(Industrial)
Vibrometry
Process Control
Pulse Picking or Power Control
Atom Cooling
(Scientific)
Optical Heterodyning
Interferometric System
Laser Doppler Velocimetry
OEM Designs
