型番：ALC-1907-00350-T9　メーカー：Akela Laser Corporation　商品コード：L003279

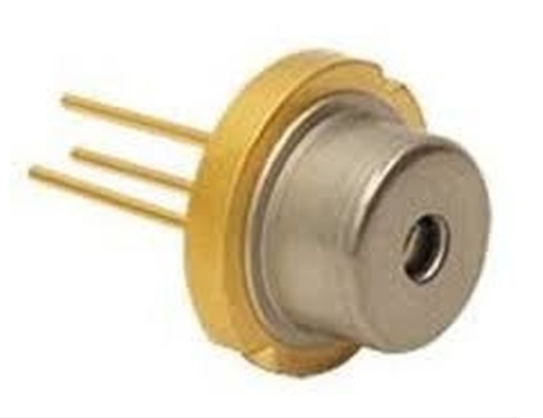

1907±10, ±20nm / 0.35W　High power Diode Laser: TO-can

1907±10, ±20nm / 0.35W　High power Diode Laser: TO-can
1907±10, ±20nm / 0.35W　High power Diode Laser: TO-can
1907±10, ±20nm / 0.35W　High power Diode Laser: TO-can
1907±10, ±20nm / 0.35W　High power Diode Laser: TO-can
1907±10, ±20nm / 0.35W　High power Diode Laser: TO-can
1907±10, ±20nm / 0.35W　High power Diode Laser: TO-can

波長: 1887nm-1927nm
出力: 350mW-
電流: 2.1A-2.1A
電圧: -1.2V
パッケージ: TO-can

(Features)

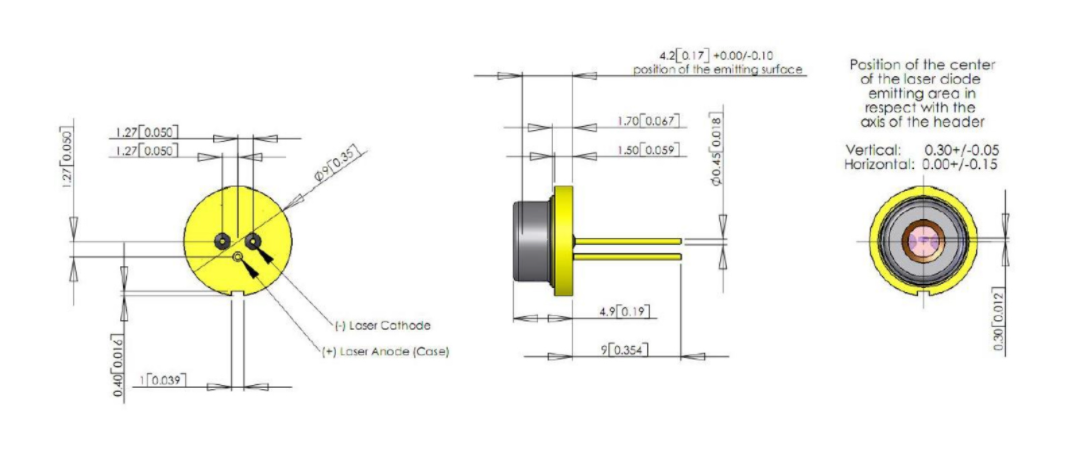

The 9 mm laser TO-can package is a widely accepted industry standard well-suited for low power laser applications. However, the maximum output power is typically limited be the poor heat dissipation properties of the 9 mm package itself. Please contact us to discuss the best package option for your application.

(Applications)
Medical
Plastic Welding

(Specifications)
Wavelength Tolerance　±10, ±20 nm
Spectral Width (FWHM)　<12 nm
Wavelength Temp. Coefficient　0.5 nm/°C
Output Power　>350 mW
Operating Voltage　<1.2 V
Threshold Current　700 mA
Emitter Width　100 µm
Beam Divergence (Fast axis)　45 degrees
Beam Divergence (Slow axis)　11 degrees
