型番：　メーカー：OPHIR　商品コード：L003052

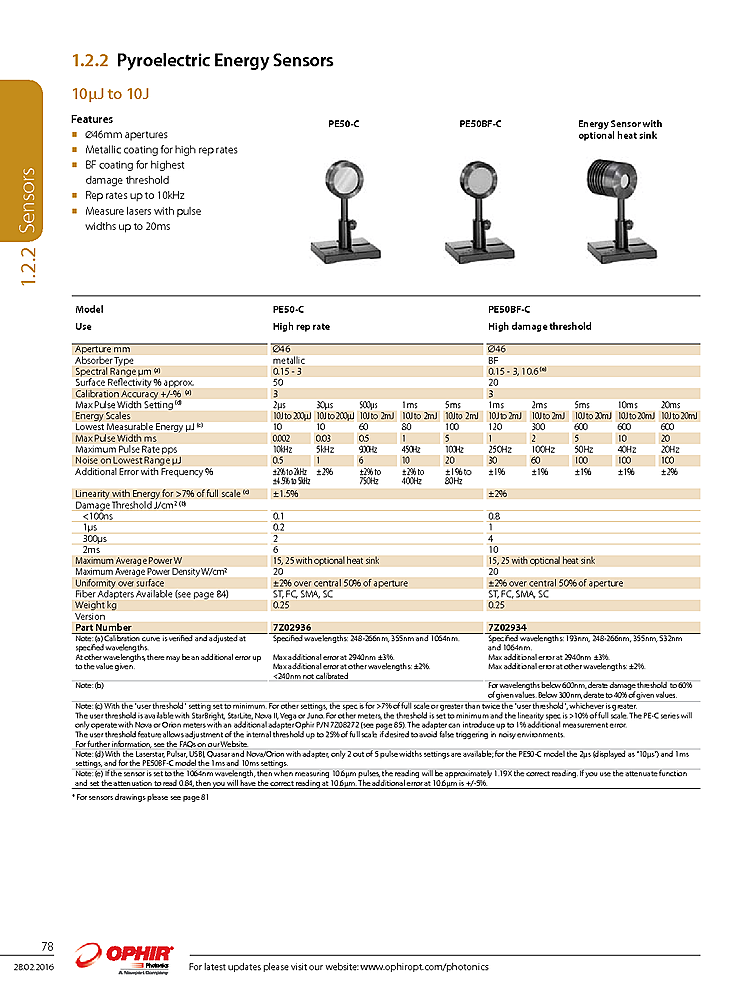

Optical Energy Sensor, 200µJ-10J

Optical Energy Sensor, 200µJ-10J
Optical Energy Sensor, 200µJ-10J
Optical Energy Sensor, 200µJ-10J
Optical Energy Sensor, 200µJ-10J

パルスの最大繰返し: 1000Hz - 10000Hz
単位: Watts,Joules,dBm
テクノロジー: Pyroelectric,Thermopile,Integrated Meter / Monitor,Integrating Sphere,Si Photodiode,InGaAs Photodiode,Ge Photodiode

Ophir Photonics pyroelectric energy meter for pulsed laser measurement. For high repetition rate lasers the optical sensor features a metallic coating and high damage threshold. Pyroelectric sensor can measure pulsed lsers up to 10kHz with pulse widths up to 20ms. Optical energy sensor features a large 46mm aperture. Accuracy of the sensor is +/-3% with a maximum average power of 25 watts when using optional heatsink. Fiber optic measurements are possible from ST, FC, SMA, and SC. Phroelectric energy sensor can measure energies from 200µJ-10J over a wavelength range of 190nm-2200nm.
