型番： メーカー：YSL Photonics 商品コード：L002804

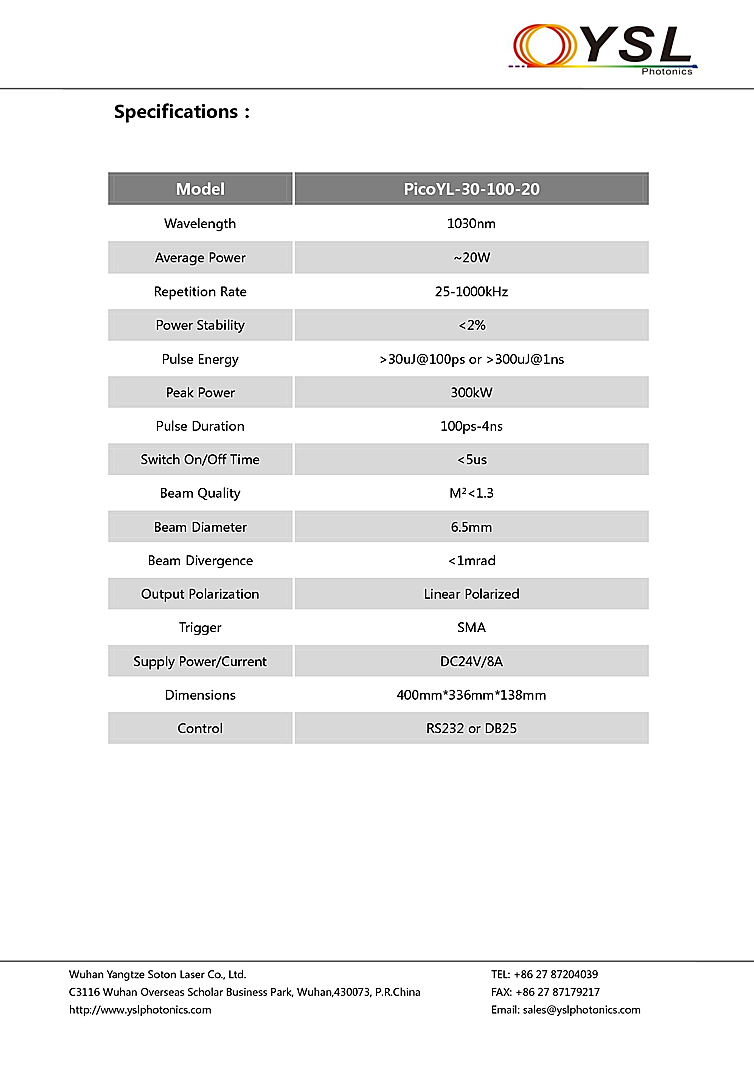

Fiber Laser, Picosecond, 1030nm, 20W
波長: 1030nm-1030nm
出力: 20W-20W
テクノロジー: Fiber Laser
Fiber laser from YSL Photonics has the following key features 100ps Pulse Duration, Peak Power up to 300kW, Repetition Rate 25kHz-1MHz and Burst Mode Function. Picosecond Fiber laser applications include LED Sapphire Substrate Dicing, Lion Ion Battery Foil Cutting, Thin Film Solar Cell Scribing, Silicon or SiC Dicing, Metal Marking, Chrome Vanadium Texturing, and Micromaching of Transparent materials. Beam quality of M2<1.3 with a beam diameter of 6.5mm and divergence of <1mrad. Fiber laser output pulse energy 300μJ at 1ns or 30uJ at100ps with average output power of 20 watts at a wavelength 1030nm.
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
|
代理店が登録されていません |
|||
