型番：ALC-1470-04500-CMT　メーカー：Akela Laser Corporation　商品コード：L003268

1470±15nm / 4.5W　High Power Diode Laser: C-mount

1470±15nm / 4.5W　High Power Diode Laser: C-mount
1470±15nm / 4.5W　High Power Diode Laser: C-mount
1470±15nm / 4.5W　High Power Diode Laser: C-mount
1470±15nm / 4.5W　High Power Diode Laser: C-mount
1470±15nm / 4.5W　High Power Diode Laser: C-mount
1470±15nm / 4.5W　High Power Diode Laser: C-mount

波長: 1455nm-1485nm
出力: 4.5W-
電流: 14.5A-14.5A
電圧: -1.5V

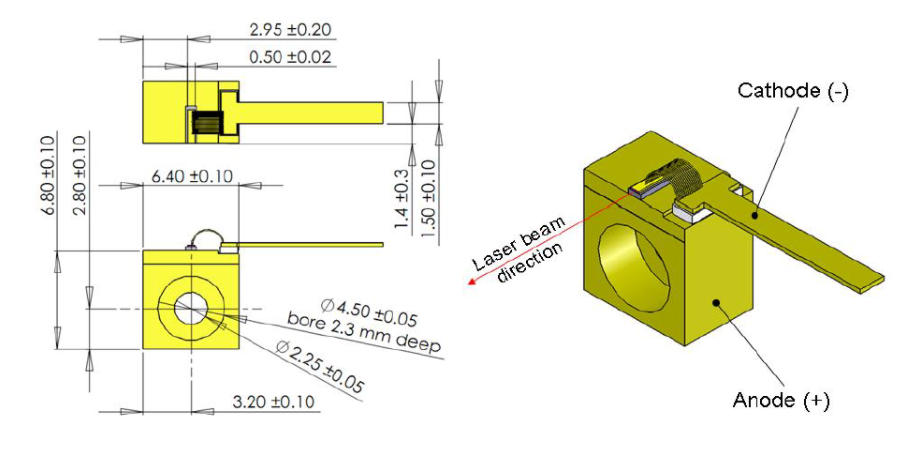

パッケージ: C-mount

(Features)
The C-mount is an ideal component for quick prototyping and laboratory setups. However, the maximum output power is typically limited by the inherently sub-optimal heat dissipation properties of the C-mount itself. Please contact us to discuss the best package option for your application

(Applications)
Medical
Material Processing

(Specifications)
Wavelength Tolerance　±15 nm
Spectral Width (FWHM)　13.0 nm
Wavelength Temp. Coefficient　0.38 nm/°C
Output Power　>4.5 W
Operating Voltage　<1.5 V
Threshold Current　1000 mA
Emitter Width　125 µm
Beam Divergence (Fast axis)　35 degrees
Beam Divergence (Slow axis)　11 degrees

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ サンインスツルメント株式会社
