型番：ALC-1320-04500-CMT　メーカー：Akela Laser Corporation　商品コード：L003260

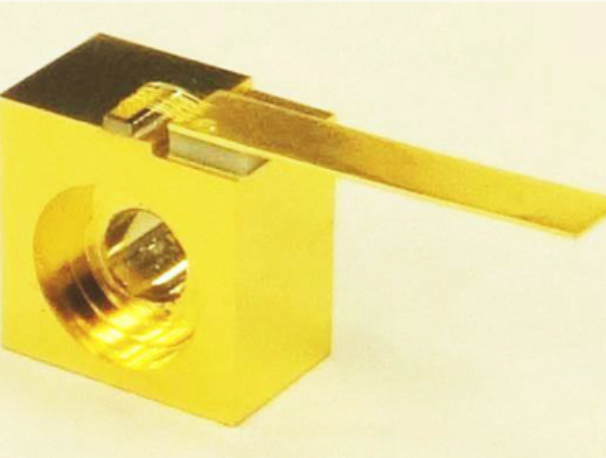

1320±10nm / 4.5W　High Power Diode Laser: C-mount

1320±10nm / 4.5W　High Power Diode Laser: C-mount
1320±10nm / 4.5W　High Power Diode Laser: C-mount
1320±10nm / 4.5W　High Power Diode Laser: C-mount
1320±10nm / 4.5W　High Power Diode Laser: C-mount

波長: 1310nm-1330nm
出力: 4.5W-
電流: 9.0A-9.0A
電圧: -1.5V

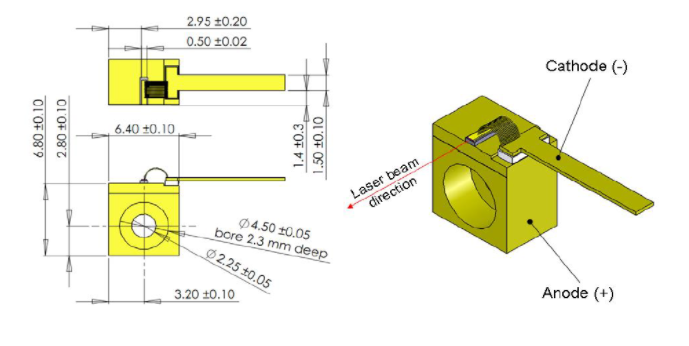

パッケージ: C-mount

(Features)
The C-mount is an ideal component for quick prototyping and laboratory setups. However, the maximum output power is typically limited by the inherently sub-optimal heat dissipation properties of the C-mount itself. Please contact us to discuss the best package option for your application.

(Applications)
Medical
Material Processing

(Specifications)
Wavelength Tolerance ±10 nm
Spectral Width (FWHM)　10.0 nm
Wavelength Temp. Coefficient　0.5 nm/°C
Output Power　>4.5 W
Operating Voltage <1.5 V
Threshold Current 0.7 A
Emitter Width　100 µm
Beam Divergence (Fast axis) 34 degrees
Beam Divergence (Slow axis), 95%　8 degrees
