型番:DFB-xxx-BT-xx-2.5-x-xx-XX-503 TOSA Module メーカー:Applied Optoelectronics, inc. 商品コード:L003815

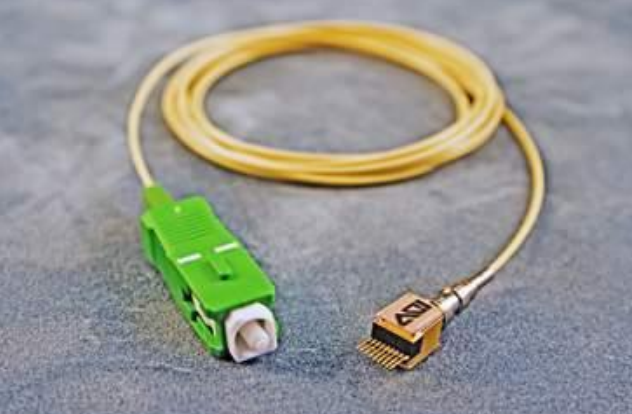

DFB-TOSA (9-pin) Module with integrated laser, monitor PD and micro-TEC

波長: 1528nm-1563nm
出力: 1mW-6.0mW
電流: -80mA
パッケージ: Compact MSA compliant 9-pin box TOSA package
テクノロジー: DFB Laser

【Description】

The DFB-xxx-BT-xx-2.5-x-xx-XX-503 DFB transmitter optical subassembly (TOSA) module with integrated laser, monitor PD and micro-TEC in a 9-pin small form factor package. It is designed for direct modulation DWDM SONET OC-48, SDH STM-16,GbE, Fiber channel applications for use in transceivers or other transmit/transponder modules.
The device is available in the full range of C-band ITU-T wavelengths on a 100GHz channel spacing.


【Features】

C-band wavelengths selectable on ITUT 100GHz channel spacing
Direct modulation up to 2.7 Gbps
Compact MSA compliant 9-pin box TOSA package
Meets GR 468 reliability specifications

【Applications】

SFP pluggable transcievers for DWDM, CWDM, SONET/SDH, GbE and fiber channel
1550-nm line cards
Digital video transmission
