型番:MWIR DFB 4.54 µm QCL C-Mount メーカー:Adtech Optics, INC. 商品コード:L003230
波長: 4.54μm-
出力: -94.1mW
電流: -0.36A
電圧: -13.7V
パッケージ: C-Mount
テクノロジー: MWIR DFB QCL

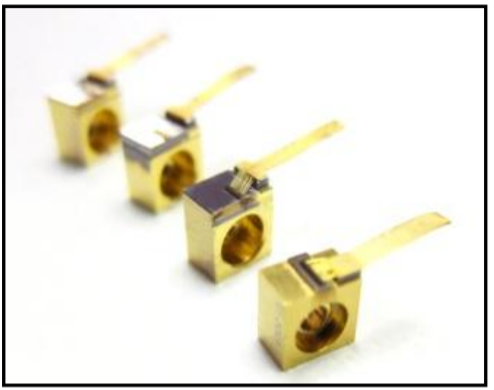

C - MOUNTED DEVICE
OVERVIEW
・Conductively Cooled
・CW Operation
・Mount Dimensions (approx): 6 x 6 x 4 mm (excluding leads)
(LASER SPECIFICATIONS)
Process: DFB
Oper. Temperature: 15 – 45 °C
Facet Coating: Front AR / Back HR
(ELECTRO–OPTICAL CHARACTERIZATION)
Driving Conditions;
Operation Mode: CW
Temperature: 15 °C
Electrical;
Thresh. Current: 0.23 A
Thresh. Voltage: 12.5 V
Laser Efficiency: 1.9 %
Optical;
Center Wavelength: 4.54 µm
Tuning Range;
Temperature: 0.5 nm/K
Current: 50 nm/A
Beam Divergence;
Typ. Fast Axis: 60 deg
Typ. Slow Axis: 40 deg
