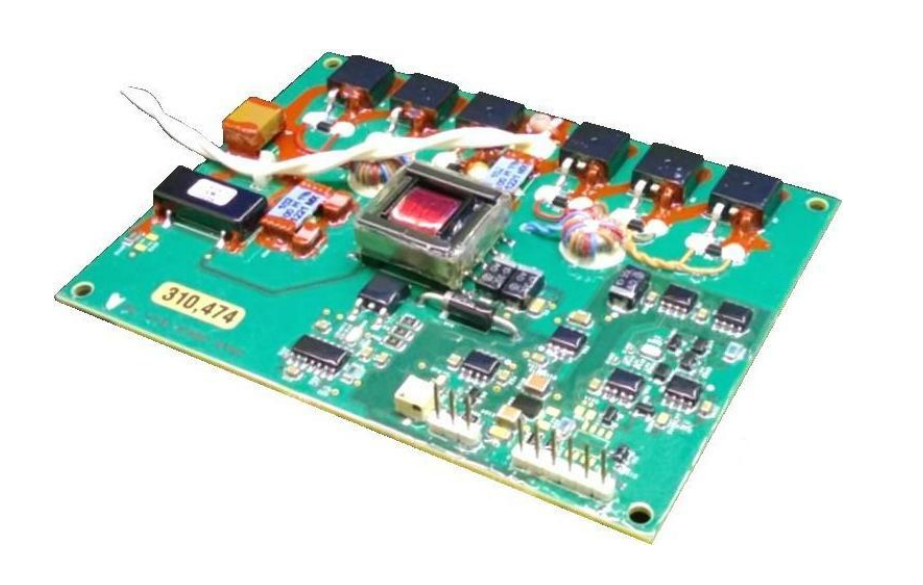

型番：8261C-1、8261C-2 メーカー：Analog Modules 商品コード：L003666
HIGH REPETITION RATE POCKELS CELL/SHUTTER DRIVER
パルスの最大繰返し: 10000Hz - 30000Hz
電圧: 1.0kV-5.0kV
パルス幅: 5.0µs
重さ: 3.2oz.
DESCRIPTION:
The Model 8261C Pockels Cell/Shutter Driver is designed for high repetition rate, continuous pulsed applications. Solid-state MOSFET technology is used, giving excellent trigger noise immunity and a smooth output waveform. This technique eliminates common problems associated with avalanche, and transformer drivers. Amplitude is continuously variable by adjusting the internal high voltage power supply. The Model 8261C is capable of operating at high pulse repetition frequencies, fast risetimes and falltimes, and output pulses up to 5.0kV. A low voltage monitor pin is provided to monitor the high voltage prior to the pulse. Internal timing is provided to refresh the output at a 5kHz rate, providing pulsewidth operation from 5μs to DC.
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | 株式会社オプトサイエンス | ||
