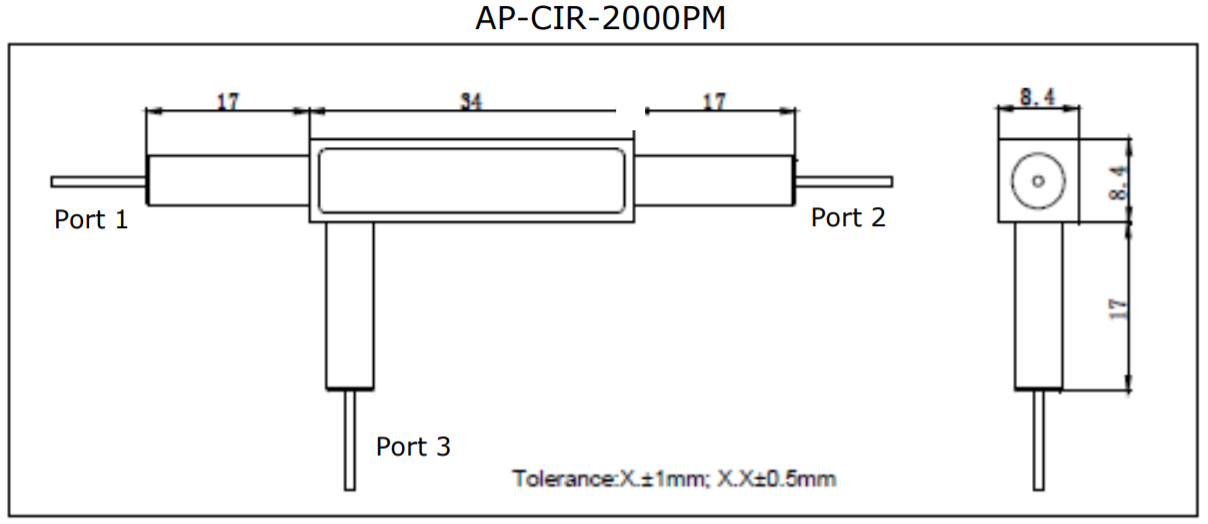

型番: AP-CIR-2000PM メーカー:AdValue Photonics 商品コード:L003229
波長: 1950nm-1950nm
出力: -2W
テクノロジー: Fiber Circulator
< Product Characteristics >
Min. Isolation at 23℃: 16dB (at +/-30nm)
Max. Insertion Loss at 23℃: 1.5dB
Min. Return Loss: 50dB
Min. Crosstalk: 40dB
Polarization Extinction Ratio: 18
Operating Temperature: -5 to +70℃
Storage Temperature: -40 to +85℃
Max. Tensile Load: 5N
Fiber Pigtail: Panda PM1550 Fiber、250µm Bare Fiber Pigtail、Fiber Length 1.0 m、No connector
Note: Above specifications are for device without connectors.
For device with connectors, Insertion Loss is 0.3 dB higher and Return Loss is 5 dB lower for each connector.
< Features >
・Mid-IR wavelength region
・Low insertion loss
・Low crosstalk
・High return loss
・Excellent stability and reliability
・Small package
